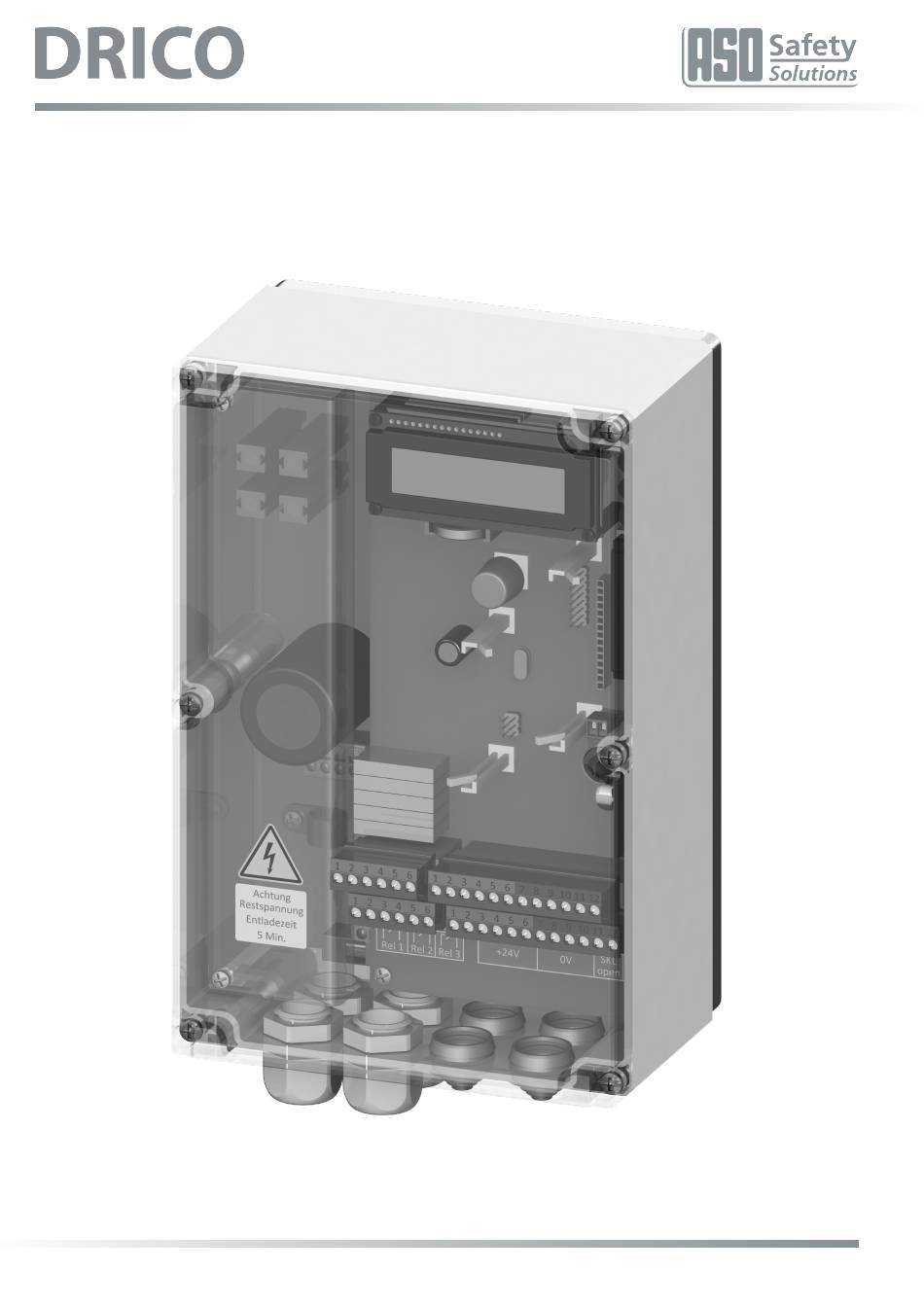

- Page 1 drive control DRICO slife 150 / 270 FU 12...
- Page 2 Ü erga edoku e tai o / Do u e tai o / Do u e tai o de datai o / Do u e tazio e di o seg a / Do u e tai e A lage es hrei u g / Des ripi o / Des ripi o du s st e / Des rizio e i pia to / Bes hrij i g a de i stallai e A lage art / T pe of pla t / Sorte du s st e / Tipo d’i pia to / T pe i stallai e...
-
Page 3: Table Of Contents
DRICO slife FU 12 Operating Manual Contents General information ................5 Symbol explanation ..................5 Overview of revisions ..................5 Terminology, definitions and abbreviations ............6 List of figures ....................6 Safety instructions .................. 7 Function description and connections ............ 8 Requirements .................... - Page 4 Parameters for reference and error numbers ..........39 Maintenance instructions..............42 Taking out of service and disposal ............42 Technical data ..................43 DRICO slife 150 FU 12 ...................43 DRICO slife 270 FU 12.1 ................44 Hersteller- / Konformitätserklärung ............45 10.1 DRICO slife 150 FU 12 ...................45...
-
Page 5: General Information
DRICO slife FU 12 Operating Manual General information All previous versions lose their validity with this version. The information in this document can be changed without previous notification. This operating manual is specifically intended for the technical fitter of the gate control DRICO slife FU 12. -
Page 6: Terminology, Definitions And Abbreviations
DRICO slife FU 12 Operating Manual Terminology, definitions and abbreviations Alternating Current CRC16 16 Bit Cyclic Redundancy Check Direct Current Deutsches Institut für Normung EEPROM Electrical Eraseable Programmable Read Only Memory Electromagnetic compatibility European standard Residual current circuit breaker Frequency converter Ground potential Hardware Protection type against foreign objects and water (intrusion protection) -
Page 7: Safety Instructions
DRICO slife FU 12 Operating Manual 2 Safety instructions • Carefully read the operating instructions before putting then the gate control system into operation. • The installation and start-up of the control system may only be conducted by specialised personnel that are familiar with the operating instructions and the applicable regulations on job safety and accident prevention. -
Page 8: Function Description And Connections
DRICO slife FU 12 Operating Manual 3 Function description and connections The present document is a description of the electrical gate control system DRICO slife FU12 of ASO. It contains the installation, operation, maintenance, repair, shutdown and disposal of the control system. -
Page 9: General View Of The Control System
DRICO slife FU 12 Operating Manual General view of the control system An overview of the relevant parts is provided in the general view shown of the control system; they are also referred to in the text of these operating instruction. Figure 1: Overall view of the control unit Designations: LC text display... -
Page 10: Operating Modes: Function And Operation
DRICO slife FU 12 Operating Manual 230 VAC / 50 Hz Power supply connection Connection for additional 230 VAC / 50 Hz loads 10 Fuse for the external 230 V loads (6,3 A) on terminal 6 Operating modes: Function and operation The controller software is subdivided into individual function modules and is depicted for the user in two possible operating modes (deadman operation and automatic operation). -
Page 11: Automatic Change Of The Operating Modes
DRICO slife FU 12 Operating Manual Automatic operation with incomplete setup: If the gate has not yet been completely set up or if the control system‘s reference run has not yet been concluded, the control system run in a special safety mode (example: The gate‘s end positions have not yet been detected in the reference run). -
Page 12: Installation
DRICO slife FU 12 Operating Manual Installation This chapter deals with the start-up of the DRICO slife. Control system assembly Warning! The control system must be checked for any transport or other damages prior to assembly! Touching electronic parts, in particular the processor circuit parts, must be avoided. Electronic parts can be damaged or destroyed by electrostatic discharges. -
Page 13: Electrical Connection
DRICO slife FU 12 Operating Manual 4.2 Electrical connection Attention! For safety reasons, electrical installation must always be completed by an authorized electrician. Work on the control system is only permitted with all-pole disconnected power. A power cut-off switch or the use of a plug must be planed for all-pole disconnect. The power cut-off switch or the power plug must be easily accessible. -
Page 14: Instructions For Suitable Emc Installation
DRICO slife FU 12 Operating Manual When starting the gate system, the motor‘s direction of rotation must be taken into consideration so that the gate also moves in the desired direction when the OPEN button is activated. If necessary, the motor connections „V“ and „W“ must be exchanged or the motor‘s direction of rotation must be changed per software via the configuration in the menu. -
Page 15: Input And Output Wiring
DRICO slife FU 12 Operating Manual Input and output wiring There are two terminal blocks for the connection of external devices arranged next to one another on the control system. The left block is intended for relay outputs (figure 1: General view No.: 9), while control devices and sensors can be connected on the right block (figure 1: General view No.: 10 and 11). -
Page 16: Immobile Safety Contact Edges
DRICO slife FU 12 Operating Manual Image No. Term. No. Design. Input function 11.3 Deadman button OPEN (e.g. key switch button on gate) 11.3 Deadman button CLOSE (e.g. key switch button on gate) 11.3 STOP button (normally closed contact) 11.3 OPEN impulse 11.3 PartialOPEN impulse (pedestrian passage) -
Page 17: Light Barrier Connection
DRICO slife FU 12 Operating Manual Figure No. Terminal No. Designation Input function 11.4 11, 12 ISK input (immobile core) 4.3.5 Light barrier connection Through-beam light barriers as well as reflected-light barriers that work with 24 V operating voltage can be directly connected to the control system. -
Page 18: Overview Of Input Installation Plan
DRICO slife FU 12 Operating Manual 4.3.6 Overview of input installation plan The DRICO slife is configured for operation with end switches. The connection for the control devices and sensors to the inputs is shown in a typical configuration in the following drawing: Figure 7: Example installation with end switches, light barrier and safety contact edges Relay output wiring The DRICO slife provides three relays with normal open contact for signaling and lighting... -
Page 19: Relay Outputs With
DRICO slife FU 12 Operating Manual The service engineer can configure the following functions onto the relays Rel2 (figure 4 no. 9.2) and Rel3 (figure 4 no. 9.3): Lighting (courtyard light) with shutdown delay after the end of the gate movement ... -
Page 20: Operating Elements And Displays
DRICO slife FU 12 Operating Manual 5 Operating elements and displays Entries in the installed software of the control system are made via a modern one-button operating element, the rotary and selection switch. Visual responses from the program to the operator are made via the liquid crystal display (LCD) and the 7-segment display (LED). -
Page 21: Lcd Sensor Depiction
DRICO slife FU 12 Operating Manual Display Meaning Hold to Run Mode Deadman operation, open gate active Opening Hold to Run Mode Deadman operation, close gate active Closing Hold to Run Mode Deadman operation, stop active Stop Immediately 5.2.2 LCD sensor depiction Detailed information on the configured sensors is also possible with the help of the display. -
Page 22: Information On Menu Display
DRICO slife FU 12 Operating Manual How does the proactive display work? This proactive display of the events in the display only takes place during the operating mode display. The event and error display is not active during sensor display or in the menu display. If several events are active at the same time, they are displayed one after the other for 2 seconds each. -
Page 23: Menu System Selection
DRICO slife FU 12 Operating Manual Measured Temp. Display of the temperatures of the power electronic 4. Settings Set Timer Menu for setting various timers (autom. run times, lighting etc.) Inputs: In3/4 Selecting the functions on inputs In3 and In4 ... - Page 24 DRICO slife FU 12 Operating Manual Main menu First submenu Second submenu 2 Service Menu Menu back 1 Password Input 2 Language Menu back 1 German 2 English 3 Dutch 4 French 3 Mot.RotationDir. 4 Motor Speed Menu back 3 Diagnosis Menu back 1 Gate State Menu back...
-
Page 25: Parameter Settings
DRICO slife FU 12 Operating Manual Main menu First submenu Second submenu 2 Stat.Edge OPEN 3 Stat.Edge CLOSE 4 Mov.Edge OPEN 5 Mov.Edge CLOSE 6 Learn Limits 4 Spec.Parameter Menu back 1 Cycles ToService 2 Serv.Interv. mth 3 Service Output 4 Service Action 5 Outp.Ext.Brake 5 Operation Mode... -
Page 26: Setting Up The Gate
DRICO slife FU 12 Operating Manual The following display appears by rotating the selection switch clockwise to the right to a guide groove: Main Menu 2 Service Menu This menu item can be activated by briefly pressing the selection switch; one goes a menu level deeper in the service menu: Service Menu 1 Password Input... -
Page 27: Change Drive's Direction Of Rotation
DRICO slife FU 12 Operating Manual Switch control system to a zero-potential state Connect the voltage supply for the buttons to 24 V Connect buttons for OPEN (deadman button) to the input terminal In8 (make contact) Connect buttons for CLOSE (deadman button) to the input terminal In7 (make contact) Switch on power supply for control system Check buttons‘... -
Page 28: Additional Function Parameters
DRICO slife FU 12 Operating Manual The electrical connection of both end switches for the positions „gate open“ and „gate closed“ are shown in Section „4.3.6“ of this document. The gate‘s end switches are connected and checked as follows during setup: Steuerung spannungsfrei schalten. -
Page 29: Changing The Operating Mode: Deadman / Automatic Operation
DRICO slife FU 12 Operating Manual 6.3.2 Changing the operating mode: Deadman / automatic operation The technician can specifically switch the control system - which normally runs in automatic operation - to deadman operation. The gate can then only be activated with the connected deadman buttons for the OPEN and CLOSE directions (IN8 and IN7). -
Page 30: Close Operating Element
DRICO slife FU 12 Operating Manual In the default setting for variant 1, the PartialOPEN command function is on the input terminal In4. Input In3 is assigned the function toggle switching impulse. The following alternative input functions can be selected for both of the yellow marked inputs „In4“ and „In3“... -
Page 31: Operating Element Switch Impulse Button (Toggle)
DRICO slife FU 12 Operating Manual 6.3.8 Operating element switch impulse button (toggle) A button that generates OPEN, STOP, CLOSE, STOP movement commands via a switching impulse can be connected to input „In3“ (variants 1 and 3). Each time the button is pressed, either a motor operation is started or a running operation is interrupted with the stop command. -
Page 32: Connecting A Blinking Light
DRICO slife FU 12 Operating Manual Check for correct connection of the light barrier function with the ’Sensor depiction’ display and the reaction for gate movement in the CLOSE direction in automatic operation! 6.3.10 Connecting a blinking light The output for relay „Rel1“ is configured for the blinking function at the factory. An automatic blinking light for +24V is connected to relay „Rel1“... -
Page 33: Additional Electrical Brake
DRICO slife FU 12 Operating Manual The output relay „Rel2“ is configured in such a way at the factory that it is closed when the gate‘s OPEN position is reached. The output relay „Rel3“ is configured in such a way that it is closed at „Gate CLOSED“. -
Page 34: Parameterize Maintenance Requirement For Relay Output
DRICO slife FU 12 Operating Manual In the deliver state, the value for the time is preconfigured with 12 months. Maintenance can be parameterized as follows: Menu: „Service Menu“, „Password Input“: Enter password Menu: „Settings“, „SpecParameter“, „Serv.Interv. mth“: Set to „mm“ The entry „mm“... -
Page 35: Resetting All Parameter Settings
DRICO slife FU 12 Operating Manual The time counter for the number of months that have gone by and the cycle counter for the number of gate movements are reset to 0. 6.3.19 Resetting all parameter settings In the service menu there is a menu item which one can reset all parameters to the preconfigured values (factory settings). -
Page 36: Time For Closing From The Partialopen Position
DRICO slife FU 12 Operating Manual 6.4.2 Time for closing from the PartialOPEN position The control system can automatically close the gate again upon reaching the PartialOPEN position after a configurable time (1 to 255 seconds). This function is only active in automatic operation and after reaching the PartialOPEN position. -
Page 37: Active Movement Commands In Switch On Process
DRICO slife FU 12 Operating Manual 6.5.2 Active movement commands in switch on process During start up the DRICO slife executes a test of the configured inputs. Active movement commands (normally closed contacts that are statically pulled to GND, make contacts that are statically pulled to +24 V) result in the control system not yet starting. -
Page 38: Sensor Status
DRICO slife FU 12 Operating Manual < MAINTENANCE > Required The maintenance requirement can be reset after the correct password has been entered via the men item „Diagnostics“, „Gate status“, „RESET maintenance“. The number of run cycles since the last maintenance is thus reset to 0. The time counter for the number of months that have gone by is also reset. -
Page 39: Parameters For Reference And Error Numbers
DRICO slife FU 12 Operating Manual Display Meaning Start of First memory entry made Event Logbook 0 => Programm-Init (First entry) 250 ProgrammInit … … HHH => Log entry due to control system restart 253 RESET … … End of Last memory entry made Log-System Parameters for reference and error numbers... - Page 40 DRICO slife FU 12 Operating Manual Reference-/ Text Meaning error no. The motor controller detected a memory stack error StackErr:high (fatal exception error) The motor controller detected watchdog error WdgErr:low (fatal exception error) The motor controller detected watchdog error WdgErr:high (fatal exception error) The motor controller detected watchdog error Watchdog error...
- Page 41 DRICO slife FU 12 Operating Manual Reference-/ Text Meaning error no. Reference Active A gate reference run was activated The motor controller‘s program start was interrupted due OP/CL-StartActive to an active movement command (check and deactivate inputs) LBtestError There was an error in the light barrier test A checksum error occurred during communication SPI BCC Err between the controllers...
-
Page 42: Maintenance Instructions
DRICO slife FU 12 Operating Manual 7 Maintenance instructions The control system itself is maintenance-free. The overall gate system must be regularly checked in accordance with DIN EN 12453. The operator is informed of this necessary maintenance by the control system software with the message <... -
Page 43: Technical Data
DRICO slife FU 12 Operating Manual Technical data 9.1 DRICO slife 150 FU 12 Electrical values 1 Phase 230 V / N / PE ±10% Voltage supply 50/60 Hz Factory protection fuse max. 10 A Power consumption (without 16 W... -
Page 44: Drico Slife 270 Fu 12.1
DRICO slife FU 12 Operating Manual 9.2 DRICO slife 270 FU 12.1 Electrical values 1 Phase 230 V / N / PE ±10% Voltage supply 50/60 Hz Factory protection fuse max. 10 A Power consumption (without motor or external consumers) 230 V ±10% 50/60 Hz External power supply 230 V... -
Page 45: Hersteller- / Konformitätserklärung
DRICO slife FU 12 Operating Manual 10 Hersteller- / Konformitätserklärung 10.1 DRICO slife 150 FU 12 _______________________________________________________________________________________________________________________________________ DIN EN ISO 9001 status: 31.03.2017 / Rev. 01 page 45 of 48... -
Page 46: Drico Slife 270 Fu 12.1
DRICO slife FU 12 Operating Manual 10.2 DRICO slife 270 FU 12.1 _______________________________________________________________________________________________________________________________________ DIN EN ISO 9001 status: 31.03.2017 / Rev. 01 page 46 of 48... - Page 47 DRICO slife 150 /270 FU 12 drive control Notes ..........
- Page 48 drive o trol 14.DB.19.002 Operati g Ma ual Rev 00 English Su je t to te h i al odifi atio s. No lia ility a e assu ed for errors or ispri ts. Antriebs- und Steuerungstechnik Hansastraße 52 • D 59557 Lippstadt Tel.: +49 2941 9793-0 •...
