Telehook TH-AN-CM Installation Instructions

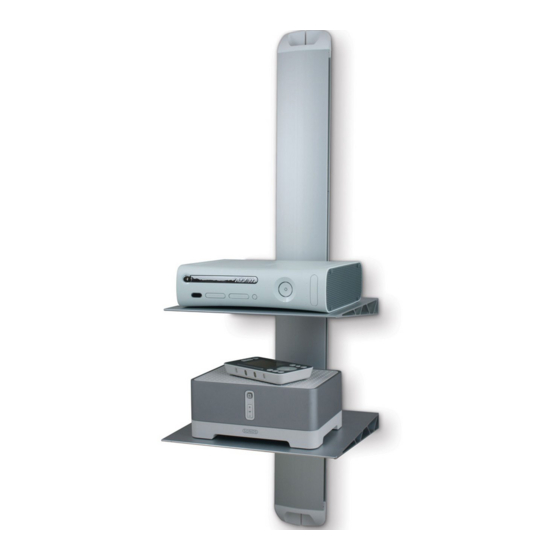

TH-AN-CM
IMPORTANT NOTES
It is recommended that your display be installed prior to the installation of this product.
If you wish to paint your Cable Manager, please consult your paint specialist for advice.
Surface finish: Clear Anodised Aluminium
Component Checklist
End Cap (x2)
Tools Required:

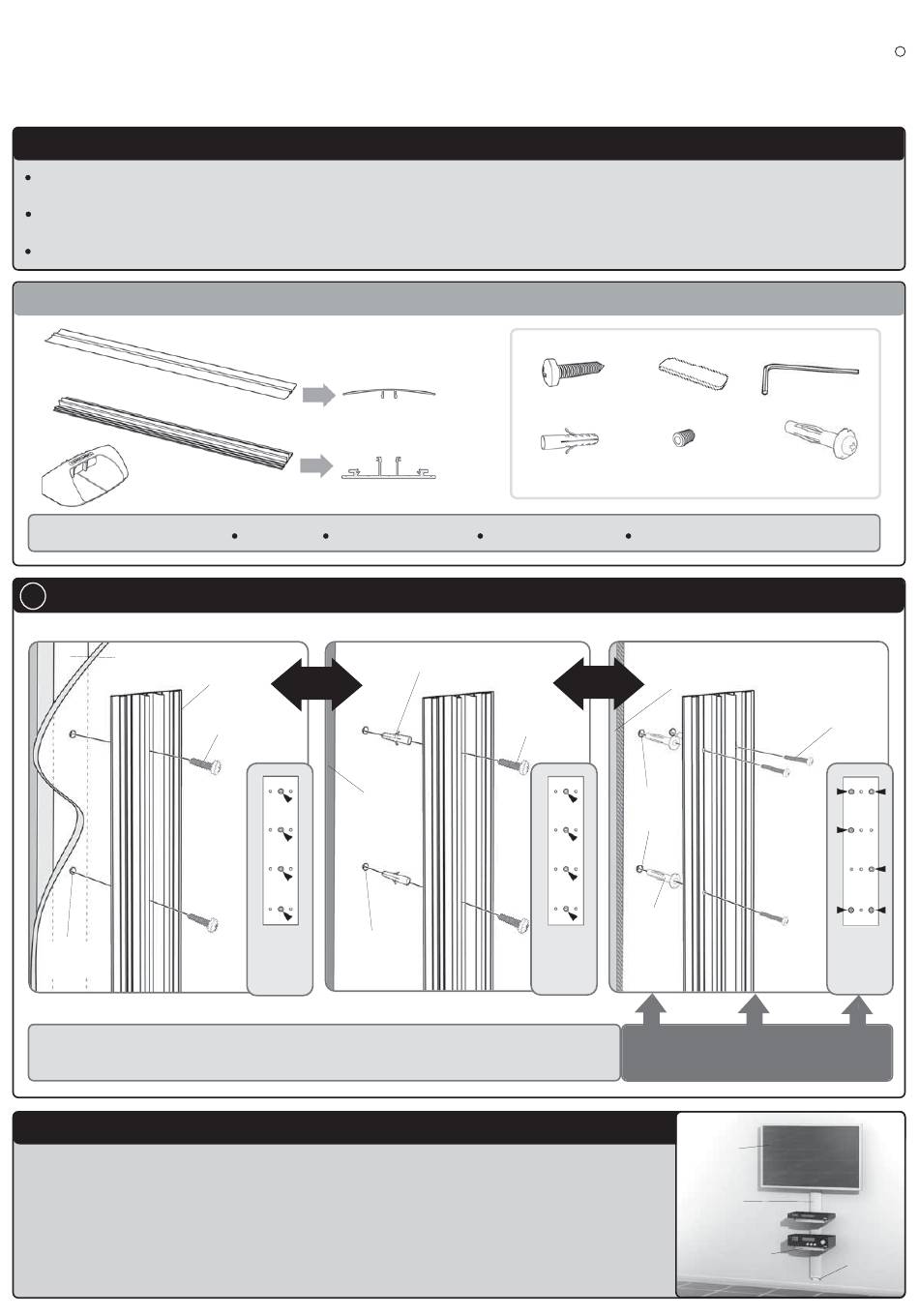

A Mount the Wall Plate
Timber Stud Wall
Timber Stud
4mm ( / ")
3
16
hole
To determine the best position for your Cable Manager, see "Mounting Tips" below
IMPORTANT: Ensure the lower edge of the Wall Plate is positioned no less than 50mm
(2") above the skirting board so that there is enough room to accommodate the End Cap
Mounting Tips:
Telehook Cable Manager has been designed to hide the cables of a wall mounted display.
Therefore, it is recommended that it is mounted vertically and centrally below your display.
The adjoining image shows a typical Cable Manager installation.
Ideally, the top of Telehook Cable Manager should sit just under the lower edge of your display
with the bottom of Telehook Cable Manager (i.e. the End Cap) sitting approximately 50mm (2")
above the floor or skirting board.
Installation Instructions
TELEHOOK
(Check you have received all parts against the Component Checklist below)
Front Fascia
End Profile
Wall Plate
End Profile
Power drill 4mm (
Masonry
Wall Plate
OR
10g x 30mm
screw
Masonry
Wall
6mm
Mounting
( /
1
Hole
hole
Pattern
Bits Box
10g x 30mm
Screw (x4)
Nylon Wall
Plug (x4)
3 / ") drill bit 6mm ( 1 /
16 4
Nylon Wall Plug
10g x 30mm
screw
Mounting
")
4
Pattern
Cable Manager
Cable Tabs (x8)
M4 x 5mm Grub
Screw (x4)
") drill bit Phillips head screwdriver
Dry Wall
OR
Dry Wall
6mm
( / ")
1
4
hole
Dry
Wall
Anchor
Hole
IMPORTANT: For Dry Wall Installation
use alternating mounting holes
Display
Telehook
Cable
Manager
Optional Shelf
(sold separately)
TM
2mm Allen Key
Dry Wall
Anchor (x6)
Dry Wall Anchor
Screw
Mounting
Hole
Pattern
End Cap
