EZ-Bridge ®- LT2 Series Initial Set-Up Procedure and Checklist
Thank you for choosing the EZ-Bridge® Wireless Antenna System.
Each Antenna system is factory tested and pre-configured so that most applications
are truly "Plug and Play"
Some package models will require additional user-provided Ethernet Cat5/6 jumper cables to
complete the necessary connections between each Antenna, each PoE Injector and your
Network Devices.
IMPORTANT! Before installing any devices, please read all of
the cautions and warnings contained in the system manual.
O Unbox all system components within the same room on a non-conductive table or floor.
O Identify and keep separate Antenna "A" and Antenna "B" as each will be initialized separately.
(The PoE wall pack injectors are identical and may be used with either antenna)
Step One: Begin set-up procedure for Antenna "A"
— With the PoE wall-pack injector unplugged from AC power —

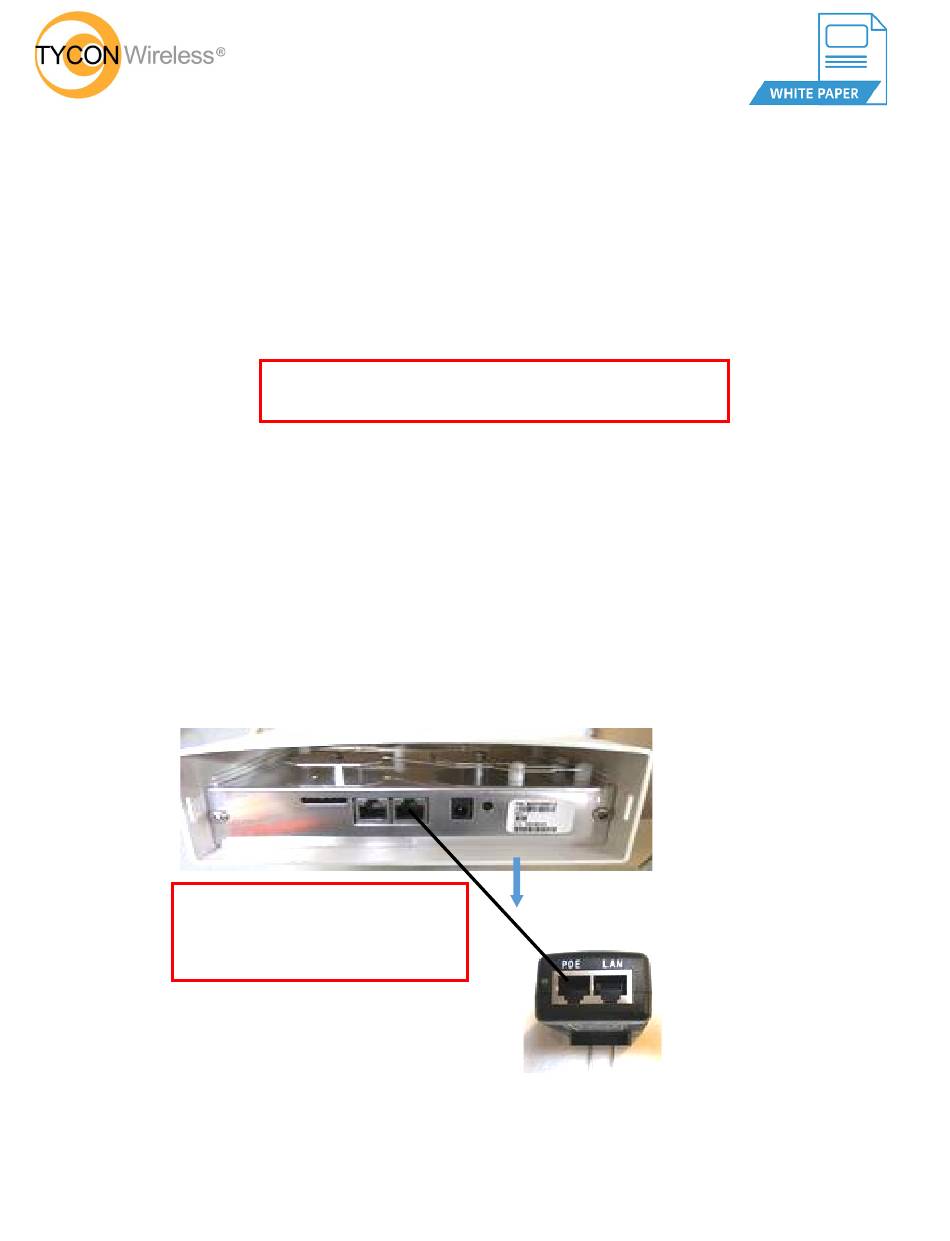

O Remove the bottom cover from the antenna housing to access the connection points.
O Insert one end of a CAT5/6 jumper cable into the center RJ45 port.
and the other end into the "PoE" port of the injector as shown.
Warning! These antennas utilize (12 –24 VDC)
Do not connect to Standard PoE Power Sources.
Higher voltages will damage units and void
the warranty
With another CAT5/6 jumper cable, insert one end into the "LAN" port of the
O
Injector and the other end into a spare data port of your Switch or Router that is
Connected to an Internet source as shown at the top of page 2.
