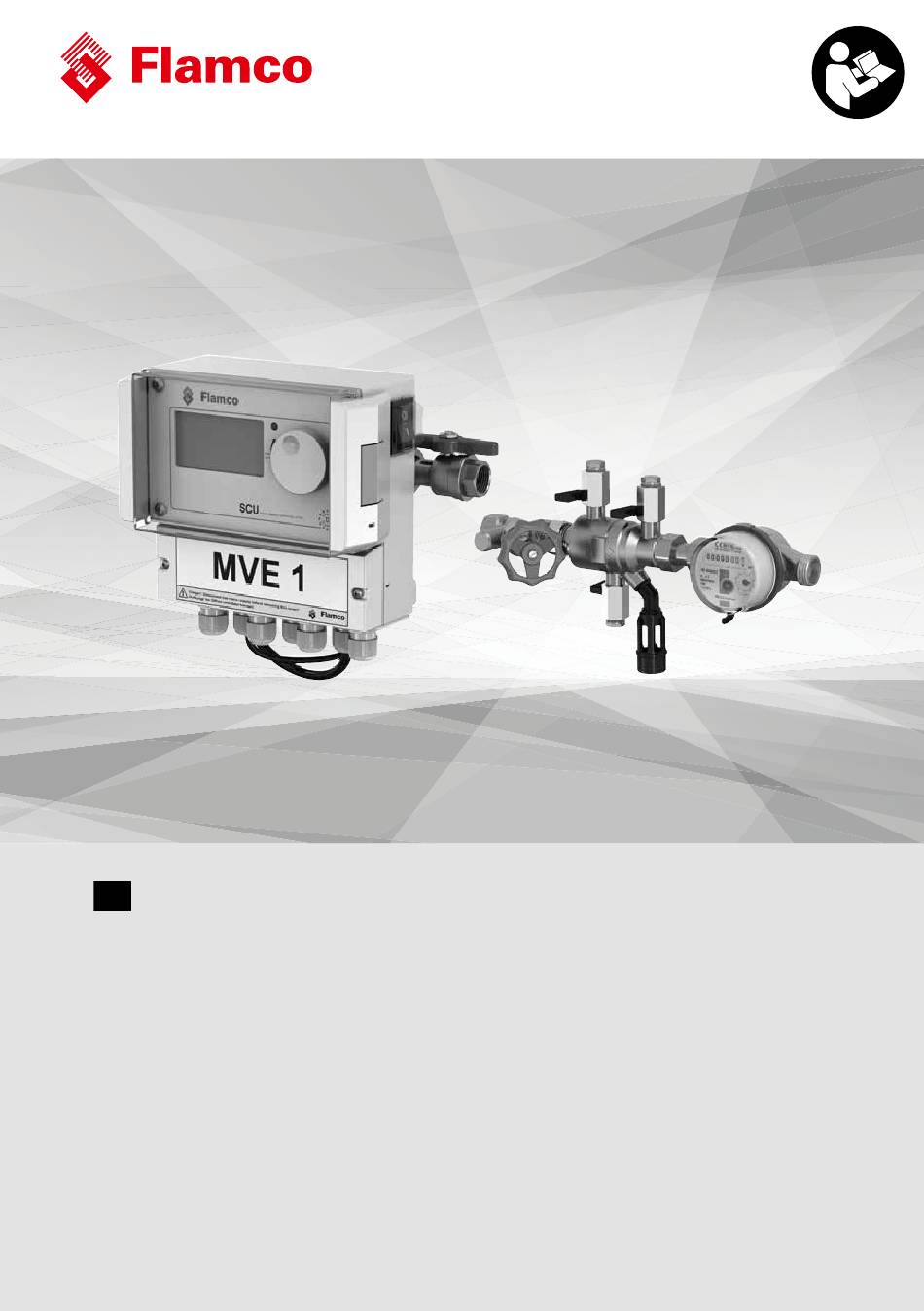

- Page 1 NFE-MVE Installation and operating instuction www.flamcogroup.com/manuals...
- Page 2 NFE MVE...
-
Page 3: Table Of Contents
Table of Content Limitation of liability ...................3 Warranty ......................3 Copyright ......................3 General safety instructions ...................3 Intended use and application of these instructions...............4 Personnel qualification, prerequisites ..................4 Personnel competence ......................5 Intended area of application....................5 Incoming goods ........................5 Transportation, storage, unpacking ..................6 Operating room ........................7 Noise reduction ........................7 EMERGENCY STOP ........................8... - Page 4 Operation MVE1 ....................24 Handling - Menu ........................24 Process indication ......................25 Menu symbols ........................25 Commissioning MVE1 ..................26 10.1 Initial commissioning ......................26 10.2 Parameterisation on initial commissioning .................26 10.2.1 ..........................Menu B/D, selection menus ............................... 27 10.2.1 ............................Menu E, service menu 27 10.2.3 ..........................
-
Page 5: Limitation Of Liability
These contain our current state of understanding and experience to the best of our knowledge. All technical modifications due to the further development of the Flamco product described in these operating instructions are reserved. Therefore, these technical specifications, descriptions and figures cannot be used to derive any claims whatsoever. -
Page 6: Intended Use And Application Of These Instructions
4.1 Intended use and application of these instructions The following pages give the basic information, requirements, measures and technical specifications that enable competent personnel to handle and use this product safely and within specifications. Responsible persons or agents who perform the services required must have carefully read and understood these instructions. -
Page 7: Personnel Competence
4.3 Personnel competence Instructions for operation are provided by the Flamco field sales service or officers during handover activities or upon request. Training for the required performances: assembly, disassembly, commissioning, operation, testing, maintenance and repair are part of the training and further education of the service personnel from the Flamco branches or designated service companies. -
Page 8: Transportation, Storage, Unpacking
4.6 Transportation, storage, unpacking The equipment is supplied in packaging units that correspond to the model in accordance with the order or the requirements of the transport route and climatic zone. They meet at least the requirements of the packaging guidelines of the manufacturer. -
Page 9: Operating Room
4.7 Operating room Enclosed, frost-protected room that meets the requirements of the applicable European regulations, European and harmonised standards and applicable technical rules and guidelines issued by the professional associations for this area of use. For the application of the device modules from these instructions, such rooms usually contain equipment for heat generation and distribution, water treatment, electrical supply and distribution as well as measuring, control and information technology equipment. -
Page 10: Emergency Stop
4.9 EMERGENCY STOP The required EMERGENCY STOP device is provided by the respective main switch on the control unit. (This concerns the SCU on the MVE1 or the control of pressurisation, if the replenishment components are thereby controlled). If further safety chains with EMERGENCY STOP devices are required according to the design and operating mode of the heat generator, these must be installed on site. -
Page 11: Protective Devices
4.13 Protective devices The supplied equipment has the necessary devices. To check the protective effect, or restore the initial conditions, the equipment must be taken out of service. Taking the equipment out of service includes voltage disconnection and hydraulic shut-off. 4.13.1 Electrical hazards The protection type (IP code) of electrically operated components prevents personal injury due to possibly fatal electric shock. -
Page 12: Maintenance And Repair
These actions cannot rule out serious personal injury and may endanger operational safety. They lead to the loss of any liability and warranty claims. It is recommended that Flamco customer service be commissioned for maintenance and repair. 4.19 Foreseeable misuse •... -
Page 13: Residual Hazards
4.20 Residual hazards See Section 4.7 Operating room. 4.21 Type plates on the replenishment modules (only concerns MVE1) The type plate of the MVE1 module is part of the safety regulations. It must not be covered or removed. Regularly check whether this is the case. The type plate details must be fully legible. A damaged or illegible type plate must be replaced. -
Page 14: Product Description

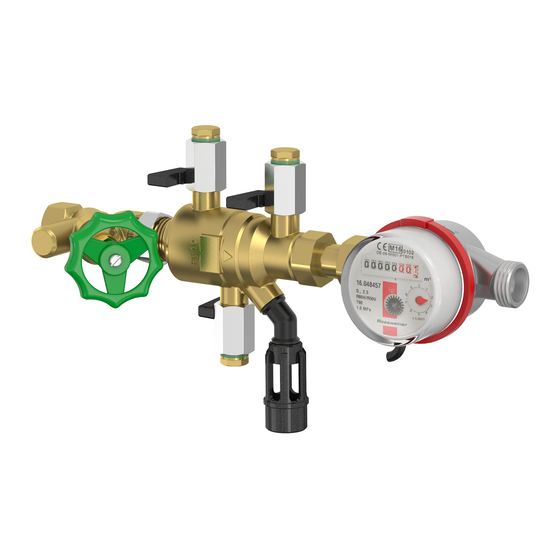

5. Product description 5.1 Component / equipment / combinations NFE1.x MVE1 NFE2.x MVE2 NFE3 * (Specification variable x: x=1 is the version for water meter without pulse output (WZ); x=2 is the version for water meter with pulse output (IWZ) 10 litre/pulse). Manual NFE-MVE... -
Page 15: Combinations Of Nfe And Mve - Areas Of Application
5.2 Combinations of NFE and MVE – areas of application The replenishment for stationary installation can be pressure or level-controlled in adjustable, monitored time intervals or replenishment quantities and serves primarily to compensate for loss quantities in the system, but also for initial filling or refilling (only MVE1). NFE1.x + MVE1 System separator variant for automatic replenishment from domestic water networks... - Page 16 NFE2.x + MVE2 NFE2.x MVE2 Variant for automatic level-controlled replenishment from district heating networks in compressor-operated systems for external pressure maintenance (Flexcon M-K/U or similar with SDS/SPC control unit) whose system pressure is at least 0.5 bar below the system pressure of the district heating system.
-
Page 17: Mode Of Operation Of Nfe + Mve1
6. Mode of operation of NFE + MVE1 6.1 Control types Level controlled Control is effected by means of an external potential-free signal or a potential signal (230 V), depending on the control unit used, a pump or compressor-controlled pressure maintenance system. - Page 18 Runtime monitoring (in automatic mode AUTO) The operator has the option of parameterising A Cycle these freely. If the following conditions are not met, B Pause C Time window the system goes into error. The potential-free fault contact is opened until manual acknowledgement takes place.
- Page 19 Monitoring, pressure increasing time (in automatic mode AUTO) Within this defined replenishment time the system pressure must increase by at least 0.1 bar.If this condition is not met, the system goes into error. The potential-free fault contact is opened until manual acknowledgement takes place.This monitoring can be switched off by using the input 0 min.
-
Page 20: Mode Of Operation Of Nfe + Mve2
The solenoid valve is controlled directly (230 V/50 Hz). Depending on the level, the solenoid valve (MV) is switched by the Flamco SDS or SPC pressure maintenance control unit in order to control the filling volume of the expansion vessels. The preconditions for a fault-free functionality are, among other things, correct installation, proper connection to the SDS or SPC pressure maintenance control unit and operation within the technical parameters. -
Page 21: Installation
• However, the modules can also be fixed to other suitable mounting points with the aid of the enclosed Flamco pipe clamps of the BSA series. • The replenishment modules are to be mounted free from support forces and other external additional loads. -
Page 22: Hydraulic Connection
8.2 Hydraulic connection • First, the supply line (A) is to be flushed sufficiently. • The stopcocks of the replenishment must first be kept closed and sealed in the corresponding lines. • The minimum nominal size of the supply and system connection cables must not be less than DN 15. - Page 23 SELV 28 29 30 31 32 33 34 35 36 10 11 12 13 14 15 16 17 18 INPUT SIGNAL RS485 External replenishment request (230 V/50 Hz) 27 26 25 24 23 22 21 20 19 9 8 7 6 5 4 3 2 RS485 INPUT SIGNAL External...
- Page 24 In contrast, in the case of an existing potential-free contact of the pressure maintenance control unit (Flamco control component F, M-K / S, MP10-40 or SDS-PA contact or SPC) for replenishment triggering, actuation on the SCU must be effected at other terminals. Here, terminals 21 and 22 are to be used on the SCU control unit and the corresponding terminals for potential-free contact on the pressure maintenance control unit.
-
Page 25: Scu Control Unit
8.4 SCU control unit Roll and click operating button Mains switch Fuse F1: T 16 A 250 V Fuse F2: T 3.5 A 250 V Serial No. Connection terminals for: - Electrical supply - Sensors - Pulse water meter - External replenishment control - Collective error message RS485 Fault LED... -
Page 26: Operation Mve1
9. Operation MVE1 Handling - Menu • The Start display (second display (A)) after switching on (D) of the control unit) shows the specifications in the as-delivered condition. Display LED fault indication Selector switch (roll and click operating button) Mains switch •... -
Page 27: Process Indication
9.2 Process indication Pressure sensor value Solenoid valve System Button for changeover to a di erent display 8.8 bar Pulse water meter Auto Control type 8888 litres Residual water quantity from water treatment in litres Sum of total water quantity replenished so far Operating mode 9.3 Menu symbols No identification number available. -
Page 28: Commissioning Mve1
10. Commissioning MVE1 10.1 Initial commissioning Prior to initial commissioning, the system and its equipment must be checked for compliance with the regulations applicable at the place of installation and the scope of application. The installer and operator of the system are responsible for the proper inspection and commissioning of the same. A commissioning report must be kept. -
Page 29: Menu B/D, Selection Menus
10.2.1 Menu B/D, selection menus This menu enables the display (reading) or changing (inputs) of additional menu content. Inputs (with code ‘000001’) are intended for the operator. Inputs with other codes are only required for service purposes and factory settings. Once a code has been entered, it will remain active for another 5 minutes after every signal that is effected within 5 minutes by turning or pressing the selector switch. -
Page 30: Menu F, Parameter Menu
Operating hours Sum of operating hours of the solenoid valve in MVE1. Replenishment list Display of the 200 most recent replenishment processes including date, time and replenishment duration as well as the replenished volume in litres (for the pulse water meter (IWZ)). The indication of the replenished litres can be 0, although water got into the system, if the replenishment quantity was smaller than the pulse rate of the IWZ. -
Page 31: Menu G, Equipment
Pressure increasing volume: max. replenishment quantity that must lead to a pressure increase of at least 0.1 0 Liter → bar. The input ‘0 litres’ switches off the associated monitoring! Pressure increasing time: max. replenishment time within which the pressure must increase by at least 0.1 bar. 0 min →... - Page 32 Water treatment If this is connected in the replenishment line, and the IWZ is also set to ON, the amount of residual water that can still be treated with the water treatment module can be read off in litres in the process menu.
-
Page 33: Menu Sequence, Example Mag
30.07.07 30.07.07 10:15:28 13:36:00 13:36:00 13:36:00 Save Back Save Back Save Back Save Back Flamco does not accept any liability for any consequences arising from incorrect parameterisation! We reserve the right to change designs and technical specifications of our products. -
Page 34: Mve1 Errors
11 MVE1 errors 11.1 List of errors / error messages Fault Error text Description of the Operating mode Acknowledgement Reaction to Collective message required (self- replenishment error Automatic Filling mode Hand retaining) operation message is Control type Control type triggered Level Pressure Level Pressure Minimum lower alarm limit for... -
Page 35: Troubleshooting
11.2 Troubleshooting Fault Fault text Description of the message Reasons for fault Fault removal Minimum pressure alarm Lower alarm limit for pressure Leakage; supply pressure too low; Repair leakage; increase underrun pressurisation incorrectly set supply pressure; set pressurisation correctly Maximum pressure alarm Upper alarm limit for pressure Solenoid valve does not close / is defective;... - Page 36 Manual NFE-MVE...
-
Page 37: Maintenance
12 Maintenance Maintenance work may only be carried out by specialist personnel. A maintenance plan is to be prepared and a maintenance report must be kept. It is recommended to check the electrical equipment of the MVE1 and MVE2 at least every 1.5 years (DIN EN 50110-1 (VDE 0105-1)). -
Page 38: Module Replacement Of Water Treatment
13 Module replacement of water treatment The control option water treatment can be used to control the residual capacity of the water softening module(s). If the remaining amount of litres shown in the process menu is used up (bottom right in the process display), the error message ‘Replace module’... -
Page 39: Taking Out Of Service, Removal
14 Taking out of service, removal After expiration of the service life of the equipment, or for its planned decommissioning, it must be de-energised. The hydraulic system connections and the external supply must be shut off. Attention: Water vessels should only be depressurised and completely emptied, if the whereabouts or reuse of the process water has been determined in accordance with the applicable regulations. -
Page 40: Appendix 1. Technical Data, Specifications
Appendix 1. Technical data, Specifications Parameter / Type NFE 1.1 NFE 1.2 NFE 2.1 NFE 2.2 NFE 3 MVE 1 MVE 2 Article number 23780 23781 23782 23783 23784 23785 23786 Permissible operating pressure 10 bar Permissible operating temperature >0 - 65 °C >0 - 90 °C Permissible ambient temperature 3 –... - Page 41 Calculation example for dimensioning the replenishment times/quantities: Example 1: NFE1.x + MVE1 level-controlled Control type: Supply pressure: 6 b ar System pressure: 2 b ar Automatic expansion device: Flexcon M-K 2000 Switch-on value of replenishment: Switch-off value of replenishment: Differential pressure: 4 bar (if greater than 4 bar, upstream connection of pressure reducer) Flow rate determined:...
-
Page 42: Appendix 2. Control Unit Terminal Plan
Appendix 2. Control unit terminal plan 230V Mains isolator 50 Hz gegn gegn gegn Manual NFE-MVE... -
Page 43: Appendix 3. Dimensions And Weights
Appendix 3. Dimensions and weights NFE1.x + MVE2 NFE1.x + MVE1 ~157 ~195 ~435 ~490 NFE2.x + MVE2 NFE2.x + MVE1 ~115 ~204 ~347 ~402 NFE3 + MVE1 NFE3 + MVE2 ~108 ~204 ~311 ~257 Type Length [mm] Width [mm] Height [mm] Weight approx Article number... -
Page 44: Appendix 4. Installation Examples
Appendix 4. Installation examples Pressure-controlled replenishment Level-controlled replenishment Example 1 Example 4 M-K/U Automatic compressor Heat Heat generator generator NFE1.x MVE1 NFE1.x MVE2 Domestic Domestic water 0 0 0 0 0 0 water supply supply Waste water Waste water by the customer by the customer Example 2 Example 5... - Page 45 +49 342 927 130 +49 2104 80006 20 info@flamco.fr info@meibes.com info@flamco.de Hungary Italy Poland Flamco Kft Flamco Italy Flamco Meibes Sp. z o.o. +36 23 880981 +39 030 258 6005 +48 65 529 49 89 info@flamco.hu flamco-italia@flamcogroup.com info@flamco.pl Russian Federation Slovakia Sweden ООО...
- Page 46 Copyright Flamco B.V., Bunschoten, the Netherlands. No part of this publication may be reproduced or published in any way without explicit permission and mention of the source. The data listed are solely applicable to Flamco products. Flamco B.V. shall accept no liability whatsoever for incorrect use, application or...
