aldes 29 023 Installation Operation & Maintenance

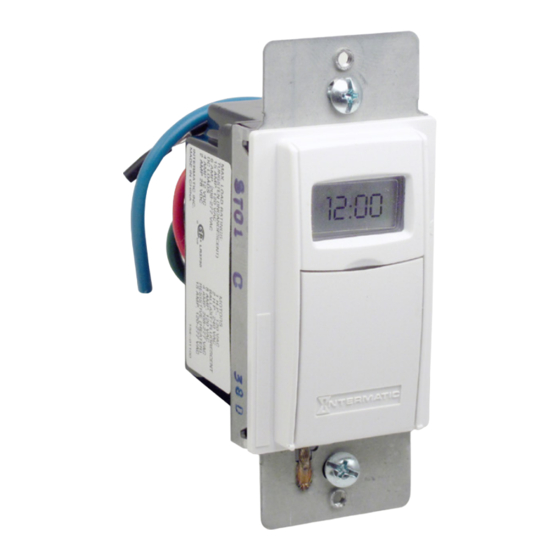

7-DAY PROGRAMMABLE
TIMER MODEL
GENERAL
The ALDES 7-Day Programmable Timer
can be used to operate a ventilation
system during specific occupied
periods, such as business hours, or
when occupants are normally present.
The timer can switch low-voltage
circuits from 12V up to 240 VAC and
motor loads of 1 to 2 hp. This feature
enables its use on low-voltage circuits
to control heat or energy recovery
ventilators, or on line-voltage circuits
to control a fan directly.
manual override feature to interrupt
the programmed schedule, if needed.
With dry-contact switching, it may
be wired in parallel with other dry-
contact switches to control a common
load, such as a central multi-port
exhaust fan controlled from several
bathrooms.
The timer may also be used to turn
on lights, appliances, fans, etc., on a
daily or weekly repeating schedule.
For lighting functions, it can be
programmed to follow daily changes
in sunrise and sunset times. The
unit is pre-set to follow the annual
changes to Daylight Savings Time
7-Day Programmable Timer
READ AND SAVE THESE INSTRUCTIONS
and Standard Time, and it can be
changed in the future. It can be set
to a random mode to provide the
appearance of occupancy, even when
no one is home.
FEATURES
Controls lighting, including
•
fluorescent, and heavy-duty loads
such as fans and appliances
LCD digital clock and read out
•
Easy-to-set 6-button programming
•
• Up to 6 ON/OFF settings per 7-day
period. A total of 42 ON and 42
OFF settings per week
4 separate programming options:
•
Same settings Monday through
Friday, weekends, all 7 days of the
week, or individual daily settings
Manual override feature
•
Astronomic feature automatically
•
changes sunrise and sunset times.
No re-setting needed; set it once
and never set it again
Random setting feature available
•
to avoid the predictable "timer-
controlled" look
To-the-minute setting accuracy
•
For single-pole and three-way
•
applications up to 100 feet away
Flush-mount design
•
Use with decorator-style wall plate
•
(not included)
It has a
No neutral wire required
•
Battery back-up prevents program
•
loss due to power failure
• Power Source: 120 - 277 VAC
• Frequency: 50 - 60Hz
• Current Ratings:
15A at 120VAC
6A at 208 - 277VAC
• Wiring Configurations:
Single
3-Way
• Battery Type: CR2 Lithium
• Operating Temperature (MAX):
104°F (40°C)
FAN CONTROLS
P/N 29 023
SPECIFICATIONS
INSTALLATION
OPERATION
MAINTENANCE
PRECAUTIONARY INFORMATION
All wiring must conform to local and
national electrical codes and ordinances.
Do NOT use this timer to control devices
that could have dangerous outcomes
due to misjudged timing, such as: sun
laps, crock pots, heaters, saunas, etc.
WARNING! USE COPPER CONDUCTORS
ONLY. DANGEROUS VOLTAGES ARE
PRESENT ON THE CIRCUIT BOARD WHEN
CONNECTED TO THE POWER LINE.
POWER MUST BE REMOVED BEFORE
MAKING ANY CONNEC TIONS OR
ADJUSTMENTS TO AVOID ELECTRICAL
SHOCK OR DAMAGE TO THE UNIT.
CAUTION: Replace ONLY with the
same type of Lithium battery. Using a
different type of battery could cause
risk of fire or explosion when disposed.
Do NOT heat above 212°F (100°C), re-
charge, disassemble, crush, or incinerate
the battery.
NOTE: If the battery is not replaced
promptly when the timer becomes
weak, the timer could become dam-
aged due to battery leakage.
INSTALLATION
Be sure the battery provided is installed
and working before installing the 7-Day
Programmable Timer into the wall. If this
is a new installation, it is recommended
to set up and program the timer before
installing it in the wall.
1. Disconnect electrical power.
2. Determine the location of the
timer.
3. Remove the existing wall switch.
4. Trim the building wires to 7/16."
SINGLE-SWITCH SETUP
a. Connect one of the two wires
from the wall to the BLACK wire
on the 7-Day Programmable
Timer using the provided twist
connectors.
b. Connect the other wire from
