Summary of Contents for Seagull MAP-X2

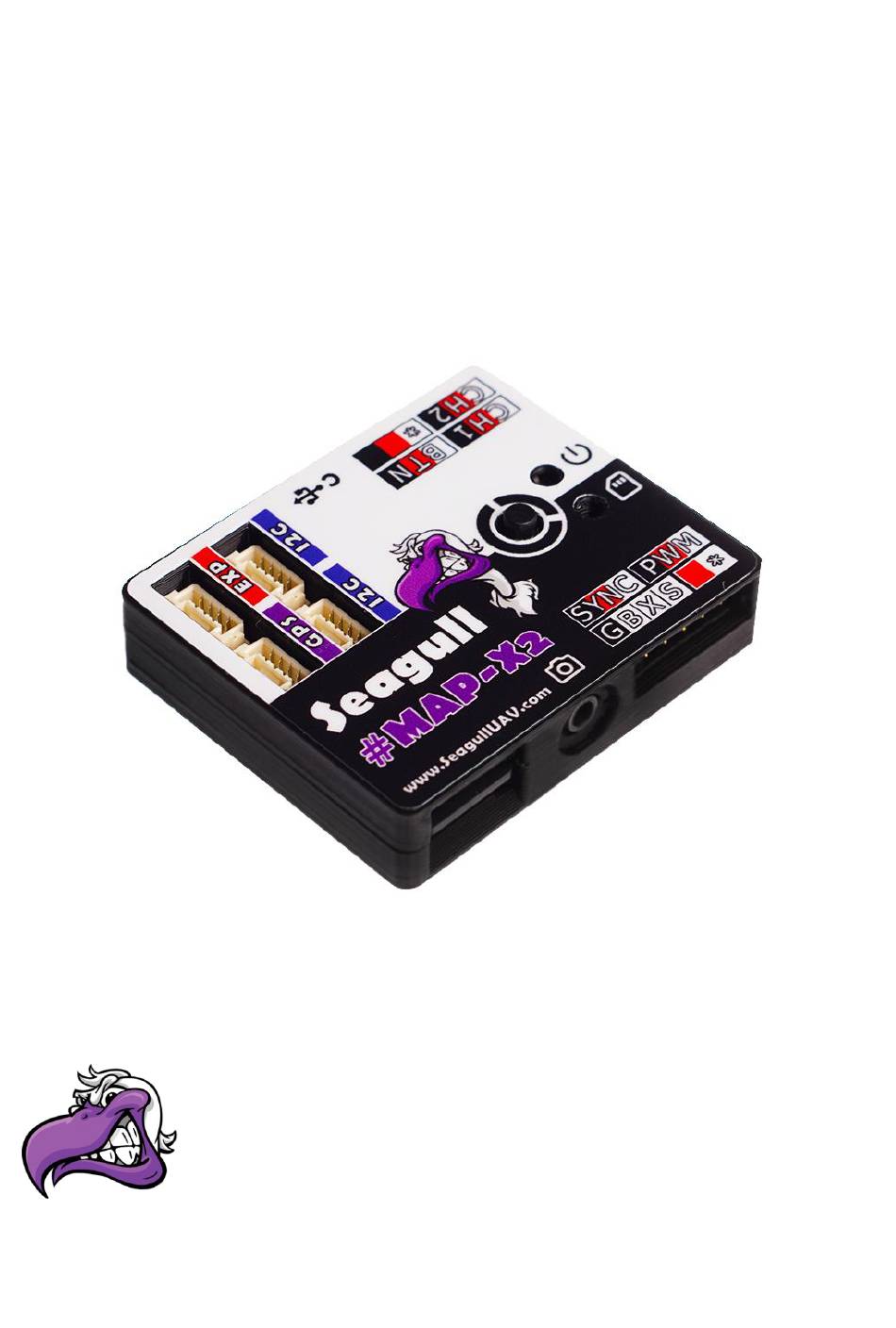

- Page 1 Seagull #MAP-X2 User Manual Product: Seagull #MAP-X2 Released: 2020-04-20 FW: 2.0...
-
Page 2: Table Of Contents
R/C TRANSMITTER INTEGRATION ............................... 9 FLIGHT PLANNER SOFTWARE INTEGRATION ............................9 MISSION PLANNER ....................................9 DJI ASSISTANT 2 ....................................10 PORT / PIN DEFINITIONS ................................... 11 TROUBLESHOOTING ..................................11 TECHNICAL SPECIFICATIONS ................................11 © 2020 Seagull UAV All Rights Reserved. 2... -
Page 3: General Information
GNSS data to log exact coordinates of when the photo was captured, resulting in a 1:1 ratio between coordinates and photos. #MAP-X2 can receive GNSS data via Seagull UAVs´ GNSS receiver products or other GNSS receivers capable of providing necessary messages, that are recognized by #MAP-X2 for data logging. -
Page 4: Trigger Modes & Commands
(Interval trigger) Timelapse will only be active when there is a value present in settings of #MAP-X2 and will work with the user input interval value for the following trigger modes: ACT – PWM, ACT + PWM and BUTTON mode. -
Page 5: Button
This command must be executed in order for #X2 to generate log files. #X2 will only start log generation once the command LOG START/END has been executed. The LOG START/END can be executed via the following options: Sending "1800"μS signal to #MAP-X2 via CH2. Clicking the "LOG" button on #MAP-X2. -
Page 6: Configuring #Map-X2
CONFIGURING #MAP-X2 GENERAL #MAP-X2 can be configured by “Seagull-MAP-X2-Config.exe” that can be downloaded via the following link: https://www.seagulluav.com/seagull-map-x2-support/ Please use the C USB Port on #MAP-X2 to configure. Seagull #MAP-X2 Configurator example photo © 2020 Seagull UAV All Rights Reserved. 6... -
Page 7: Settings And Values Table
Can be enabled to AUTO logging start and end. When there is a signal present AUTO on CH1 which is above 999 μS and below 2001 μS, #MAP-X2 will start log generation. When the signal is out of these ranges it will end log and write the data to the microSD card. -
Page 8: Flight Controller Integration
DJI A3 Connect the CHANNEL that you wish to control from #MAP-X2 to the "F port" that you wish to use. DJI A3 can't provide power to the #MAP-X2 through its rails, therefore connect only BLACK – and WHITE signal to the "F port" and power #MAP-X2 via UBEC or such that is within power range limits for #MAP-X2. -
Page 9: R/C Transmitter Integration
#MAP-X2 is compatible with all R/C equipment that can supply a PWM/SERVO signal operating at 50Hz and that meets the ranges set out for #MAP-X2 modes. For the modes please refer to CH1 & CH2 COMMAND TABLE in the manual. As well check the conversion table for RC transmitters when adjusting the channel to activate #MAP-X2 modes. -
Page 10: Dji Assistant 2
The following example sets up DJI A3 controller through DJI Assistant 2 for shutter control automated flights. 1. "SHUTTER" - in the drop-down list on the "F port" that #MAP-X2 is connected to 2. "SHUTTER TRIGGER PWM" - Set the "VALUE" for the trigger mode (CH1 &... -
Page 11: Port / Pin Definitions
– 12V VIN 3.9 – 12V TROUBLESHOOTING To determine what Seagull #MAP-X2 is currently doing - simply read the output of the "X STATE" and "SD CARD" LEDs, then match it with the "Action" in the table below. X STATE...
