Page 2: Table Of Contents
Contents PRODUCT SELECTION ....................... 4 INTRODUCTION .......................... 5 DEVICE CONFIGURATION ......................6 SPECIFICATION ........................... 7 Hardware specification: ....................... 7 Access control features: ....................... 7 KEYPAD DETAILS ........................8 NG 4DR8RD CONNECTION DETAILS: ................... 13 RECOMMENDED CABLE SPECIFICATION ................15 CONNECTING TO HOST COMPUTER USING ............... 15... - Page 3 Before Installation delete all data ( Factory reset ) using keypad menu * 90 Disclaimer Changing of default user password is mandatory to avoid tampering of the device. In case of user password not changed; smart I will not be responsible for any tampering on the device.
- Page 4 Before you start with smart XS NG 1.1. Included items Smart XS NG unit Battery Backup Power supply 12 V 5A This Installation Guide Product Image SmartXS Access control or Attendance System Supplying power for Power Supply the controller &...
-
Page 5: Product Selection

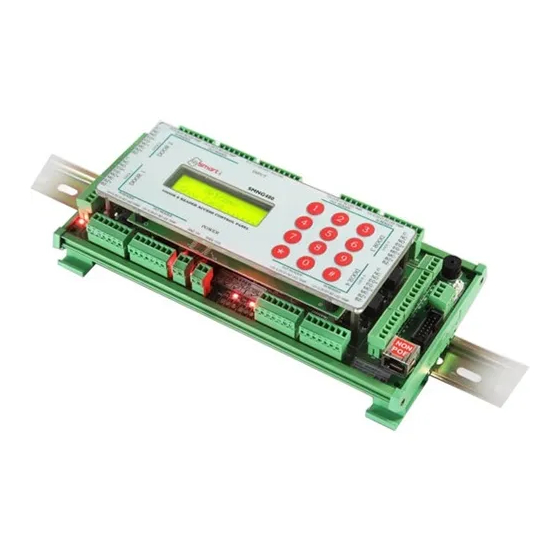

PRODUCT SELECTION Particulars Specifications Model no. SMNG480 Series Applications Access Control INTRODUCTION The new NG SMART 4door 8reader blends loads of innovative features to streamline installation and administration for large business enterprises for multiple doors access control deployment. NG 4dr8rd brings the high speed, accuracy, flexibility and user friendly interactivity... -
Page 6: Device Configuration
DEVICE CONFIGURATION Door 3 Door 2 Reader 6 Reader 3 Reader 5 Reader 4 Egress Egress Lock for Lock for door 3 door 2 Welcome Lock for 18:00 28/04/14 Lock for door 4 door 1 For TCP communication Door 1 Door 4 Reader 7 Reader 8... -
Page 7: Specification
SPECIFICATION Hardware specification: Particulars Description 32 Bit RISC Arm Memory Flash 4MB Events/Transactions 60,000 No. of Users 30,000 Operation Modes Card Only, (On Weigand Card Only). Card Reader Options (extra Mifare, HID (I Class), HID Prox, EM cards. Module) Communications Port TCP/IP, RS485 Baud Rate 9600bps (Default) -
Page 8: Keypad Details
KEYPAD DETAILS Sr. No. Function How to go? Note Observation (IDEAL) Normal mode Key – *0 In this mode card is shown Key – *2 To log out from Admin mode Enter User ID – 11111 press Admin Mode Key – # Key –... - Page 9 Key – *94 Door open time can be set for all doors 1 to 98 secs. Door open time Enter door open time Key – # And DOTL sense time is equal to Door open time + 1 sec. Key –...
- Page 10 After setting card format to 5- Key – *995 Digit it will display and process Press – 5 for 5-Digit 5-Digit card no. Set 5/8/10 Digit Press – 8 for 8-Digit And for 10-Digit format, it will card no format Press –...
- Page 11 Key – *9997 To download transaction data Press # from particular PC. MAC Security Press– 1 for Enable Required to set MAC ID of that Press – 3 for Disable PC from s/w. Then press # Key- *99990 To Ping Network Network Ping Network ping 1= Ping gateway...
- Page 12 Annexure 2: *9991 System Info Model Number SMNG480 Unit ID Controller No Card Buffer 30000 Used Card Buffer Bal. Card Buffer 30000 Trans Buffer 59999 Used Trans Buff Bal Trans Buff 59998 Serial No As per factory setting Manufacture Date...
-
Page 13: Ng 4Dr8Rd Connection Details
NG 4DR8RD CONNECTION DETAILS: Reader 3 Reader 4 Reader 6 Reader 5 Door 2 Door 3 Door 1 Door 4 TCP comm. Digital Lock Reader 2 Reader 8 Reader 1 Reader 7 supply supply... - Page 14 Connector Details: Power supply (J3): Sr. no Signal Door Supply connection (J8): Sr. no Signal Door Lock connection (1 to 4): Sr. no Signal Weigand Readers connection (1 to 8): Sr. no Signal Door Connection (1 to 4): Sr. no Signal MC + EML connection for all doors:...
-
Page 15: Recommended Cable Specification
RECOMMENDED CABLE SPECIFICATION Particular Distance Cable Specs Access controller to Weigand Up to 80 mtr 14/36, 22AWG, 6 core shielded reader cable Egress /Exit Up to 80 mtr 7/38, 22AWG, 2 core cable Magnetic contact Up to 80 mtr 7/38, 22AWG, 2 core cable Magnetic Lock Up to 80 mtr 14/36, 22AWG, 2 core cable... - Page 16 Connecting to the Host computer The Smart XS NG provides various means to connect to the host computer such as: 1. through TCP/IP (Ethernet) Connecting via TCP/IP The Smart XS NG series can be connected on the LOCAL AREA NETWORK (LAN) Or Wide Area Network (WAN) as under: Connecting single controller directly to a PC Using TCP/IP (CAT5/6) Network Cable Step 1 Use the crossover network cable, with one end connected to the Smart XS NG TCP/IP...
- Page 17 Successful Connectivity Unsuccessful connectivity Using Smart XS NG The user enrollment process is performed in one of the Smart XS NG Unit OR through the administrator’s computer, and the card data is distributed to other controllers over the Smart XS NG Network If the LED lights up in green, the authentication is successful LED STATUS BUZZER STATUS...
- Page 18 Trouble Shooting # 1. No Communication from Smart XS NG Controller to PC There are a few points that can be checked to fix it: 1) Make sure the network cable is functional; sometimes a damaged cable may be the cause of all problems.
