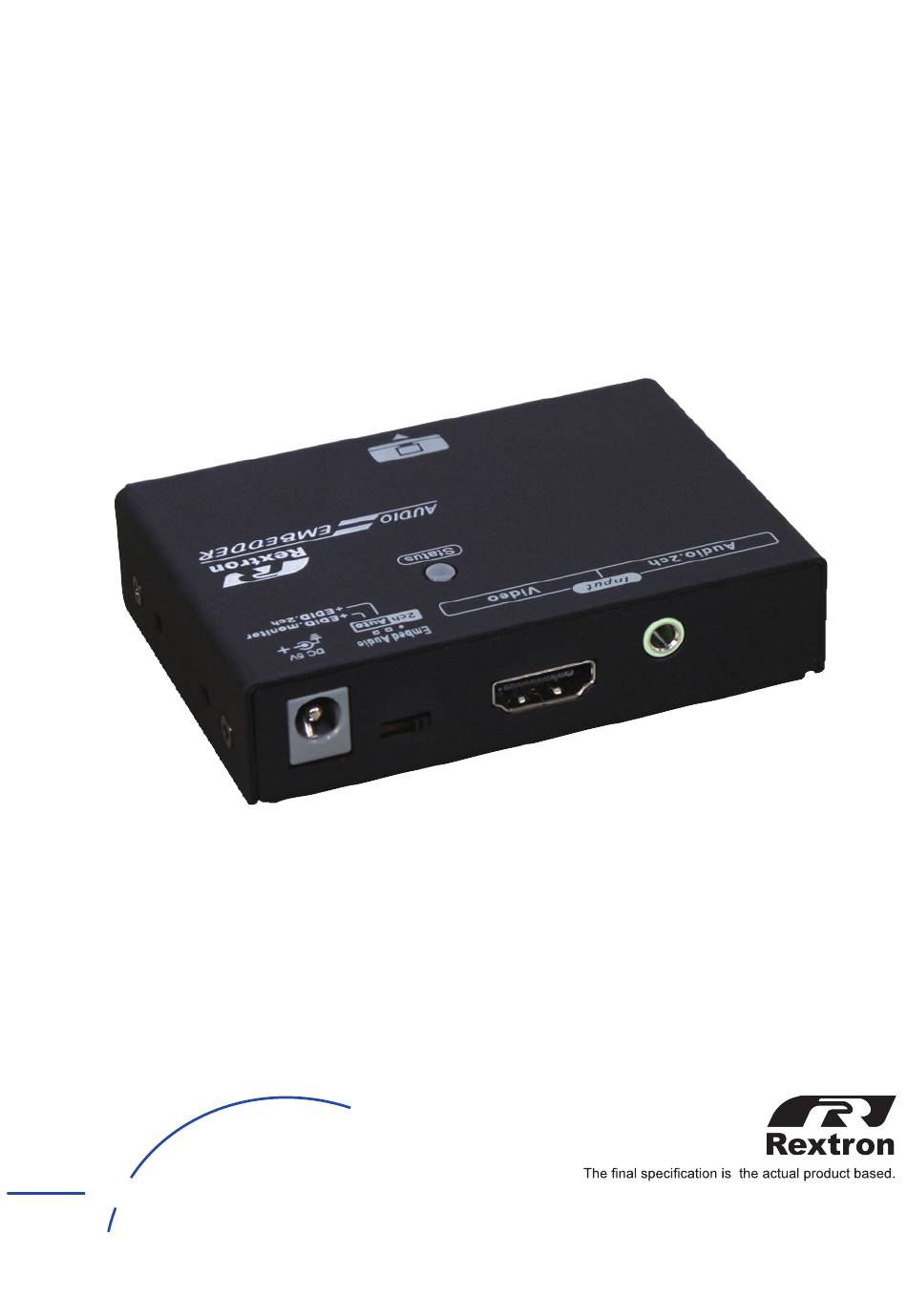

User's Manual
HDMI Audio Extractor
electronic components GmbH
Maybachstrasse 39
73037 Göppingen
VCAMM-021
E N
V
M E D I A T E C H N O L O G Y
Tel: +49 7161 60686 0 www.evn-components.de
Fax: +49 7161 60686 29 info@evn-components.de
◘
◘
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
PP5-RHAA12Z-000
RoHS
Advertisement
Table of Contents
Summary of Contents for EVN Rextron VCAMM-021
- Page 1 M E D I A T E C H N O L O G Y website to download the latest version of manual for reference. Maybachstrasse 39 Tel: +49 7161 60686 0 www.evn-components.de PP5-RHAA12Z-000 RoHS 73037 Göppingen Fax: +49 7161 60686 29 info@evn-components.de...
-
Page 2: Package Contents
● Allows individual analog audio channels to be re-arranged in the HDMI signal with the audio and video sources that are great for audio mixers, music players and microphones..., etc. ● Intelligent EDID handling and processing ensures Plug and Play operation ●... -
Page 3: Product Description

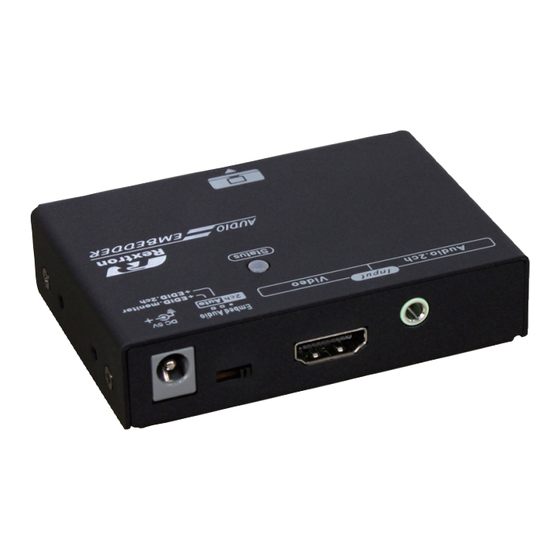

Product Description DC in Audio Input Connect to the analog audio source HDMI Connector Connect to the HDMI Source Audio Selection Switch Embed Audio type Selection HDMI Connector Connect to the HDMI Display LED indicator Power / Status... -
Page 4: Operation
Operation LED indicator Green No video signal in Video signal without HDCP Blue detected Video signal with HDCP Purple detected Audio Selection Switch This switch allows user to select the audio input from HDMI or analog audio. By switching the slide switch according to the printing from left to right 2ch, EDID 2ch and EDID monitor. - Page 5 VCAMM-021 Input HDMI x 1 Analog Stereo x 1 Output HDMI x 1 PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, HDMI Audio Format D-TrueHD, DTS-HD Slide Switch x 1 (Audio in select) LED Indicator Power / System Status (Tri-Color) Video Resolution (Max.) Full HD 1080p (1920 x 1080) HDMI TMDS Clock 225 MHz...
-
Page 6: Installation
Installation 1. Adjust to the proper postion. Audio Selection Switch 2. Use a HDMI cable to connect the display to the output port on the unit. 3. Use a HDMI cable to connect the video source device to the input port on the unit. - Page 7 Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT. The direct vendor makes no warranty or representation, expressed or implied with respect to the contents or use of this documentation, and especially disclaims its quality, performance, The direct vendor also reserves the right to revise or update the product or documentation...
