Roper Rhodes TR9016 Installation & Operation Instructions

Touch Sensor Dual Flush Plate
Installation & Operation Instructions
Please read completely before commencing. Retain for future reference

Introduction

This sensor flush plate is compatible with wall hung frame cisterns and In-wall cisterns from Roper Rhodes
Group.
For In-wall installation the front of frame to front of finished wall minimum depth should be 15.5mm.
If used with a furniture concealed cistern ensure a clearance of 105mm is left between the cistern and the
front of the furniture fascia surface to allow adequate installation.

Battery Installation

(Batteries not included)

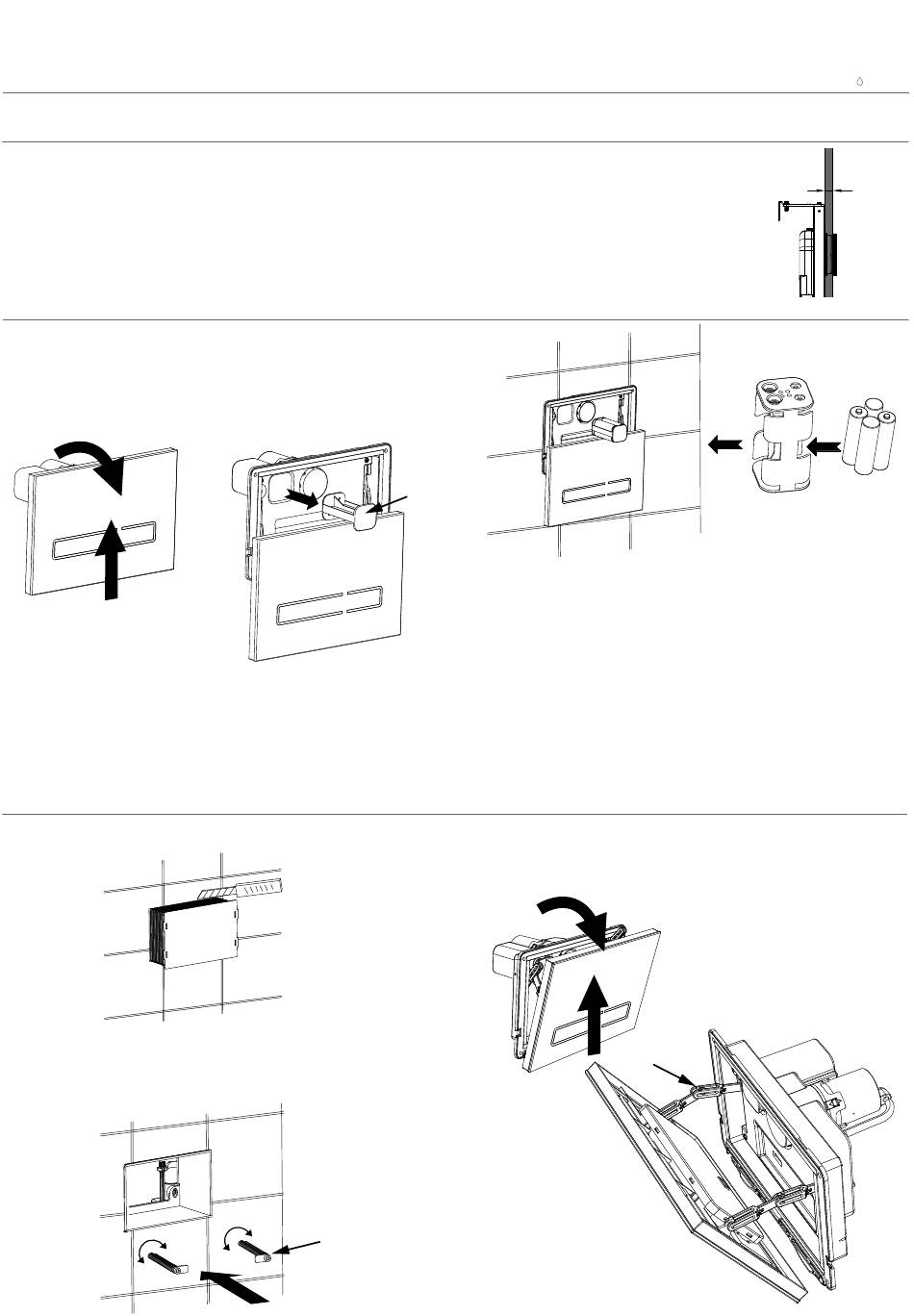

Open the glass plate by pushing it towards the top and then tilting it
forwards. The clip chain will allow it to hang, make sure it's secured
before dropping it.
2
1
Remove the battery holder and insert 4x AA batteries into the battery
compartment, noting the polarity on the battery holder. Slide back
into place and replace the glass fascia. The LEDs will Illuminate,
indicating that the flush plate is ready to be used.

Installation

1. Cut the protective casing of the in-wall cistern in-line with the
finished wall surface.
2. Screw the fixing arms (supplied in the box) onto the cistern.
The rods may need cutting down depending on the thickness of the
finished wall/surface.
Battery
Holder
Good quality Alkaline batteries will last for approximately one year in
normal domestic conditions.
Once batteries are due to be replaced, a continuous alarm will be
heard for 10s, indicating that battery power is low and that they are
due to be changed. The LED lights will also flash.
Batteries are totally exhausted when the LED lights are continuously
flashing (twice per second). Please replace the batteries immediately.
A manual over-ride button is available if batteries are totally
exhausted.
3. Remove the front fascia panel completely. Push the glass front to
the top and tilt the top towards you. Un-clip the glass fascia by
expanding the clip links and keep aside until installation is
completed. Remove the battery holder also to avoid damage.
Fixing Arms
2
1
Clip links
TR9016
minimum
15.5mm
