WCDMA RAN, Rel. RU40,

Operating Documentation,

Issue 02, Documentation

Change Delivery 3

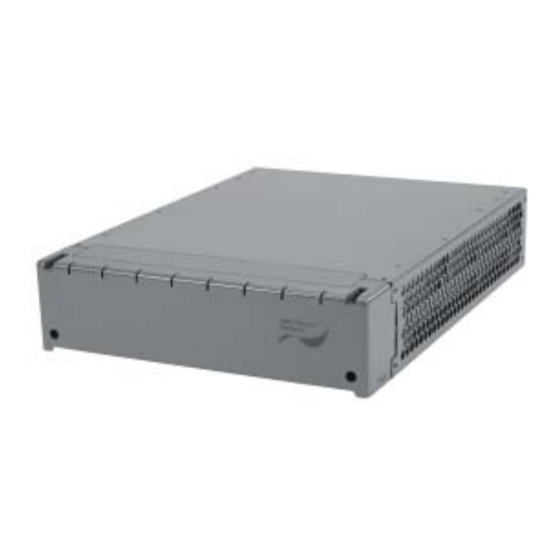

Flexi Lite BTS Product Description

DN09145453

Issue 01

Approval Date 2013-08-23

Nokia Siemens Networks is continually striving to reduce the adverse environmental effects of

its products and services. We would like to encourage you as our customers and users to join

us in working towards a cleaner, safer environment. Please recycle product packaging and

follow the recommendations for power use and proper disposal of our products and their compo-

nents.

If you should have questions regarding our Environmental Policy or any of the environmental

services we offer, please contact us at Nokia Siemens Networks for any additional information.

Confidential

Table of Contents

Need help?

Do you have a question about the Flexi Lite BTS and is the answer not in the manual?

Questions and answers

Summary of Contents for Nokia Siemens Networks Flexi Lite BTS

Page 1 If you should have questions regarding our Environmental Policy or any of the environmental services we offer, please contact us at Nokia Siemens Networks for any additional information.
Page 2 This documentation and the product it describes are considered protected by copyrights and other intellectual property rights according to the applicable laws. The wave logo is a trademark of Nokia Siemens Networks Oy. Nokia is a registered trademark of Nokia Corporation. Siemens is a registered trademark of Siemens AG.
Page 3: Table Of Contents
Summary of changes ........6 Introduction to Flexi Lite BTS........7 RSS-310 compliance .
Page 4 Flexi Lite BTS interfaces ........
Page 5 Table 4 Input voltages of Flexi Lite BTS ......25 DN09145453...
Page 6: Summary Of Changes
Summary of changes Flexi Lite BTS Product Description Summary of changes Changes between document issues are cumulative. Therefore, the latest document issue contains all changes made to previous issues. Issue 01 This is the first issue of the document. Id:0900d805809fcf90...
Page 7: Introduction To Flexi Lite Bts
Flexi Lite BTS can be used to add capacity cells in urban and dense urban areas if new frequency carriers for macro cells are not available. It can be also deployed to cover traffic hotspots or to fill network coverage holes as well as improve coverage inside buildings, for example at airports and railway stations.
Page 8: Figure 2 Functional Blocks Of The Flexi Lite Bts
Introduction to Flexi Lite BTS Flexi Lite BTS Product Description Figure 2 shows functional blocks of Flexi Lite BTS. Clock/Sync ANT 1 - ANT 2 - RP3 Data SRIO Control Analog RF block RF baseband block Control and timing block...
Page 9: Rss-310 Compliance
Flexi Lite BTS Product Description RSS-310 compliance 2 RSS-310 compliance This equipment complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. DN09145453 Id:0900d80580a1fad6 Confidential...
Page 10: Eu Rohs Statement
EU RoHS statement Flexi Lite BTS Product Description 3 EU RoHS statement This equipment complies with the European Union RoHS Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equip- ment. The directive applies to the use of lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) in electri- cal and electronic equipment.
Page 11: Ce Marking
4 CE marking Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive) Hereby, Nokia Siemens Networks declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive: 1999/5/EC. R&TTE Directive 1995/5/EC ü...
Page 12: Fcc Part 15 Compliance
FCC Part 15 compliance Flexi Lite BTS Product Description 5 FCC Part 15 compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a commercial environment.
Page 13: Construction
Flexi Lite BTS Product Description Construction 6 Construction All Flexi Lite modules are outdoor-capable and weather-sealed. Flexi Lite BTS consists of the following elements. Core base station module The core mechanics, with installed gaskets in all of the connectors, shields the module core against water, snow, and solid foreign objects, and make the module core IP65 weatherproof.
Page 14: Benefits
Without protection the cables must be faced down. Power source for other devices Flexi Lite BTS can also provide the power to an external device if it meets P+E require- ments. Low acoustic noise Flexi Lite BTS uses silent active cooling.
Page 15: Air Interface
Flexi Lite BTS Product Description Air interface 8 Air interface Flexi Lite BTS has two transceivers: two 10 W transmitters and two -121 dBm (tunable down to -107 dBm in steps) receivers. Flexi Lite BTS operates at: • Uplink: 1920 – 1980 MHz •...
Page 16: Figure 4 Possible Configurations Of Flexi Lite Bts 2100
Antenna Antenna filter filter f1 10W f1 10W f1 10W TX / RX TX / RX Antenna Antenna filter filter f 10W TX / RX TX / RX Figure 4 Possible configurations of Flexi Lite BTS 2100 Id:0900d805809fcf85 DN09145453 Confidential...
Page 17: Baseband Capacity
Flexi Lite BTS Product Description Baseband capacity 9 Baseband capacity Flexi Lite BTS HSPA peak rates are the same as with Flexi Multiradio BTS: • 64 QAM = 21 Mbps • DC-HSDPA + 64QAM = 42 Mbps • MIMO + 64QAM = 42 Mbps Baseband capacity: •...
Page 18: Transport
(transport chaining) through electrical or optical Ethernet port. Flexi Lite BTS can also provide the power to an external device if it meets the P+E power supply requirements. Ethernet wireline interface supports power output P+E from Flexi Lite BTS to external devices, for example microwave radio link.
Page 19: Synchronization
Flexi Lite BTS Product Description Synchronization 11 Synchronization Flexi Lite BTS supports various synchronization methods. • Synchronous Ethernet and Synchronous Ethernet generation (ITU-T G.8261) • Timing over Packet according to IEEE1588v2 Additionally, BTS supports synchronization through HDMI interface: • GPS through optional GPS receiver/antenna •...
Page 20: Management And Software
Management and software Flexi Lite BTS Product Description 12 Management and software Management of Flexi Lite BTS can be done locally through local management port (LMP) or remotely through NetAct . This is the same as in Flexi Multiradio BTS or Flexi Multiradio 10 BTS.
Page 21: Software Updates
Flexi Lite BTS keeps the current and previous software packages in its flash memory. Either of these software versions can be activated at any time. Reboot is required in order to put the software into use.
Page 22: Interfaces And Leds
13 Interfaces and LEDs Table 2 lists the interfaces available in Flexi Lite BTS. Additionally, Flexi Lite BTS contains three LEDs which indicate the status of the BTS. Note that all connectors and LEDs are available on the front panel.
Page 23 RF - RF power status LED • TRS - transport status LED Operational status visual indication: • PWR - power on/standby LED Table 2 Flexi Lite BTS front panel connectors and interfaces (Cont.) Ethernet ports have auto-crossover feature implemented. DN09145453 Id:0900d805809fcf8b Confidential...
Page 24: Dimensions And Weights
121.5 mm 121.5 mm (3.4 in.) (3.4 in.) (4.8 in.) (4.8 in.) (incl. wall mounting bracket depth) Table 3 Dimensions and weight of Flexi Lite BTS The weight of Flexi Lite BTS is approximately 11 kg (24.25 lb.). Id:0900d805809fcf8a DN09145453 Confidential...
Page 25: Power Requirements
Table 4 Input voltages of Flexi Lite BTS Flexi Lite BTS is able to endure 20 ms loss of AC power supply. Cold start at -35 ºC (- 31 ºF) lasts approximately 15 minutes. For more information on power-related issues, see Flexi Lite BTS Installation Site Requirements.
