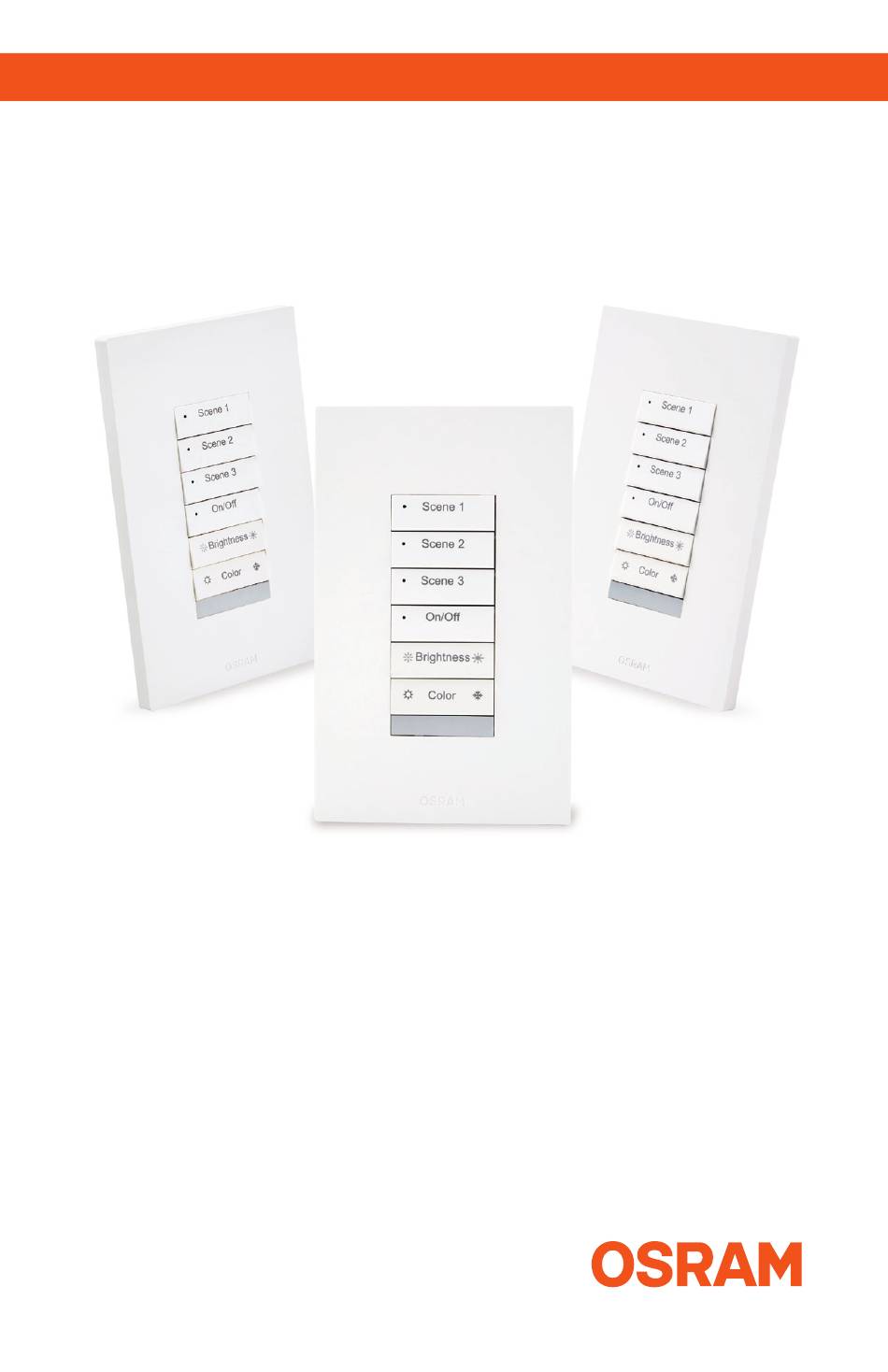

- Page 1 OSRAM Tunable White Wallstation Wiring and installation manual Light is OSRAM...
-
Page 2: Important Safeguards
Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel. — The use of accessory equipment is not recommended by OSRAM as it may cause an unsafe condition. Note —... - Page 3 Wallstation Installation Electrical Metal Device Box: Install the mounting bracket using the supplied screws. Ensure that the OSRAM logo and SINGLE GANG labels are facing up. Mounting Bracket J-Box Low Voltage Device Box: To ensure that the wall plate is flush to the wall surface, the mounting bracket should be installed in MULTI GANG orientation with Low Voltage Device Box.
- Page 4 Wallstation Installation (continued) Place the wallstation assembly into the mounting plate and push gently until ‘clicks’ are heard. This confirms that the pieces are secured. 115.4...
- Page 5 Multi-gang wallstation installations require multi-gang decorator wall plates. Remove the button assembly from the OSRAM wall plate. This can be achieved by pressing the wall plate with your thumbs near the button assembly while grasping the OSRAM Wall Plate.
- Page 6 Install the mounting bracket using the supplied screws. Install the decorator plate using screws supplied with the decorator plate.
- Page 7 Wiring Control wires should be inserted into the left two push-in connectors on the back of the wallstation. Power to the wallstation and communication to and from the wallstation is achieved using these two wires only. Right two ports are dum- my and should not be used.
- Page 8 Wallstation Feature Description The wallstation when used in an application can recall 3 preset scenes. However, these 3 scenes are customizable based on the user’s CCT and brightness preference. The factory default and custom scenes are stored in the LED driver. The following figure shows the behavior of different buttons when in the factory default mode.
-
Page 9: Installation Notes
FCC rules. OSRAM SYLVANIA Inc. 200 Ballardvale Street Wilmington, MA 01887 USA 888-531-7573 www.osram.us/ds OSRAM is a registered trademark of OSRAM GmbH. Specifications subject to change without notice. LMS163 9-18 © 2018 OSRAM SYLVANIA Inc.
Need help?
Do you have a question about the TW-Wall-Station and is the answer not in the manual?
Questions and answers
We have the wall unit and light won't stay on when we thought it was a sensor when you walked in the room.We have to press the button. How do you keep it on? We have 4 settings...on, off and up and down arrows.
To keep the Osram TW-Wall-Station light on continuously, set the desired brightness and color level using the “Brightness” and “Color” buttons. Then, long press one of the Scene buttons for 6 seconds to program the current settings. The LED indicator will flash 5 times and then stay on, confirming the setting has been saved. This saves the continuous light setting as a scene that can be recalled anytime.
