IgniteNet GLinq GL-O-1GE-1C Quick Start Manual

Gigabit ethernet to coax bridge

Advertisement

Quick Links

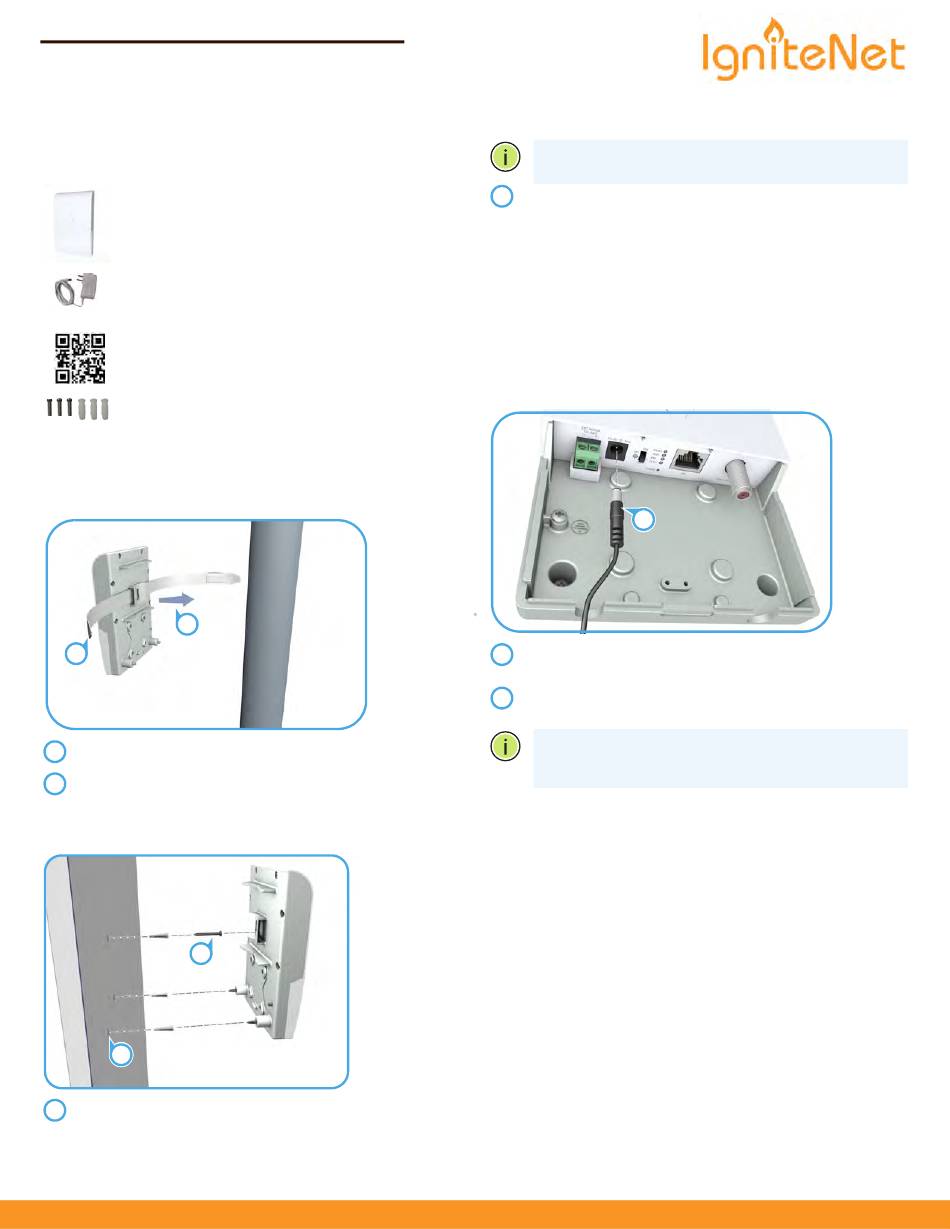

Quick Star t Guide
Gigabit Ethernet to Coax bridge
GLinq GL-O-1GE-1C
1. Unpack and Check Contents
GL-O-1GE-1C-XX
Outdoor
GE to G.hn Coax Bridge AP
12 VDC Power Supply
QSG will be posted to the Web
Wall Mounting Screw Kit
2. Mount the Bridge AP
a. Mounting on a Pole
1
2
1
Place the unit against the pole (diameter 20-200 mm).
2
Use up to 12 mm (1/2 in) strapping to secure the unit to the
pole.
b. Mounting on a Wall
2
1
1
In the required location, mark and drill three holes in the wall
for M4 wall anchors.
www.ignitenet.com
*
Note:
For a wood wall, drilling holes and using wall anchors
is not required.
2
Mount the unit on the wall and secure it in place using the
included three M4 x20 tapping screws.
3. Connect Power
The bridge AP can receive power from one of three different power
sources:
The supplied DC power adapter to the DC power jack.
An external DC power source to its DC In/Out terminal block
Power over Coaxial cable (PoC) to the F-type coaxial connector
(from another Ignite GLinq only)
a. DC Power Jack
1
Plug the DC power supply into a suitable power mains
outlet.
2
Insert the DC power supply DIN connector into the bridge
APs DC power jack.
Note:
When power is supplied to the DC jack and the DC
switch is set to ON, the F-type coaxial connector functions as
a 12 VDC PoC power source.
– 1 –
2

Advertisement

loading

Summary of Contents for IgniteNet GLinq GL-O-1GE-1C

  • Page 1 Quick Star t Guide Gigabit Ethernet to Coax bridge GLinq GL-O-1GE-1C Note: For a wood wall, drilling holes and using wall anchors 1. Unpack and Check Contents is not required. Mount the unit on the wall and secure it in place using the GL-O-1GE-1C-XX included three M4 x20 tapping screws.
  • Page 2: Connect An Ethernet Cable

    Quick Start Guide b. DC Power Block 4. Verify Bridge AP Operation Verify basic switch operation by checking the system LEDs. When operating normally, the Power LED should be on green, and the WiFi, Eth and G.hn LEDs should be on or Warning: Before wiring the DC In/Out or connecting blinking green.
  • Page 3 Manage the AP with the IgniteNet Cloud Controller Note: Use only threaded male F-type compression coaxial Go to https://cloud.ignitenet.com to register your AP. Log in and cable connectors to connect coaxial cable between the select Devices from the menu. Click Add Device and enter the AP bridge APs.
  • Page 4: Safety And Regulatory Information

    Quick Start Guide IMPORTANT NOTE: FCC Radiation Exposure Statement: Safety and Regulatory Information This equipment complies with FCC radiation exposure limits set forth for FCC Class B an uncontrolled environment. This equipment should be installed and This equipment has been tested and found to comply with the limits for operated with minimum distance 20 cm between the radiator and your a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5: Warnings And Cautionary Messages

    Use only twisted-pair cables with RJ-45 connectors that conform to FCC standards. Europe - EU Declaration of Conformity Hereby, IgniteNet Inc. declares that the radio equipment type: Outdoor Gigabit Ethernet to G.hn Coax. Bridge AP w/PoC GL-O-1GE-1C-XX in compliance with Directive 2014/53/EU.
  • Page 6: Hardware Specifications

    Quick Start Guide Regulatory Compliance Hardware Specifications Radio Frequencies 2412–2472 (FCC, IC, CE, AU, MIC, ) Chassis Size (WxDxH) 185 x 119 x 44 mm (7.28 x 4.69 x 1.73 in) Weight 450 g (0.99 lb) Temperature Operating: -40° C to 70° C (-40° F to 158° F) Immunity EN 55024:2010 Storage: -40°...
