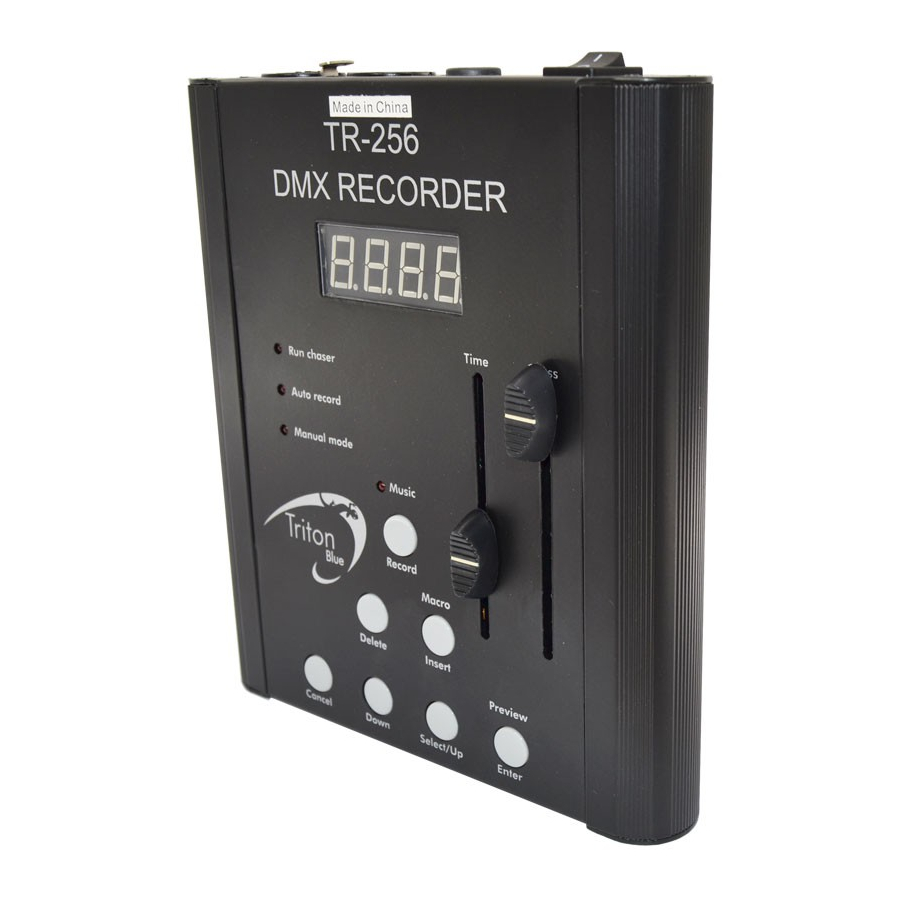

- Page 1 PROFESSIONAL LIGHT CONTROLLER USER’S MANUAL TR-256 KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Safety Instructions
Internet INTRODUCTION Thank you for having chosen a TR-256. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time. -
Page 3: Operating Determinations
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Always plug in the power unit least. Keep away from heaters and other heating sources! If the device has been exposed to drastic temperature fluctuation (e.g. - Page 4 This device is a DMX-recorder for controlling DMX-effects or spots in discotheques, on stages etc. This product is allowed to be operated with a direct voltage of DC 9V, 1A and was designed for indoor use only. Do not shake the device. Avoid brute force when installing or operating the device.
- Page 5 Features For playing back your light shows 1. DMX-Recorder for 256 channels 2. 9 macros with up to 9 chasers 3. 32 chasers with up to 56 scenes 4. Sound-control via built-in mic 5. Ideal for rentals. SETUP Installation Install the device on a plane. Connect the connection cable of the power-unit with the DC IN-socket.
-
Page 6: Operation
Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture. OPERATION After you connected the device to the mains, the TR-256 is ready for use. With the Power-button, you can switch the device on and off. - Page 7 When the controller TR-256 is power on, the state of EMS memory is locked in order to avoid false operation. You are supposed to press "CANCEL" and "DOWN" together for a while until the display shows "--UL", then the controller is released from the locking state and you can use the controller normally.
- Page 8 the chaser number. Press the Enter-button. Select the desired scene via the Up/Down-buttons. Press the Record-button. The scene is now recorded. Select the next scene in your recorder and controller. Press the Record-button. Press the Enter-button in order to leave this mode. Call up a chaser Disconnect the controller from the Recorder.
- Page 9 Delete a chaser Press the Up-button in order to change to the Manual mode. Press Enter-button. Select desired chaser Up/Down-buttons. Press the Delete-button and Insert-button at the same time. The chaser will be deleted. Insert/delete a scene Press the Up-button in order to change to the Manual mode. Press Enter-button.
-
Page 10: Problem Chart
Call up a macro Disconnect the controller from the Recorder. Press the Up-button in order to change to the Run Chaser-mode. Press the Macro-button. Select the desired macro via the Up/Down-buttons. Press the Enter-button. The macro is played back. The program speed, the waiting time and the sound-control can be adjusted like described above. -
Page 11: Technical Specifications
dealers. Should you need any spare parts, please use genuine parts. Should you have further questions, please contact your dealer. TECHNICAL SPECIFICATIONS Power supply: 9 V DC, 1 A Power consumption: Sound-control: Via built-in microphone Dimensions: 192 x 172 x 32 mm Weight: 1 kg Please note: Any information is subject to change without...
