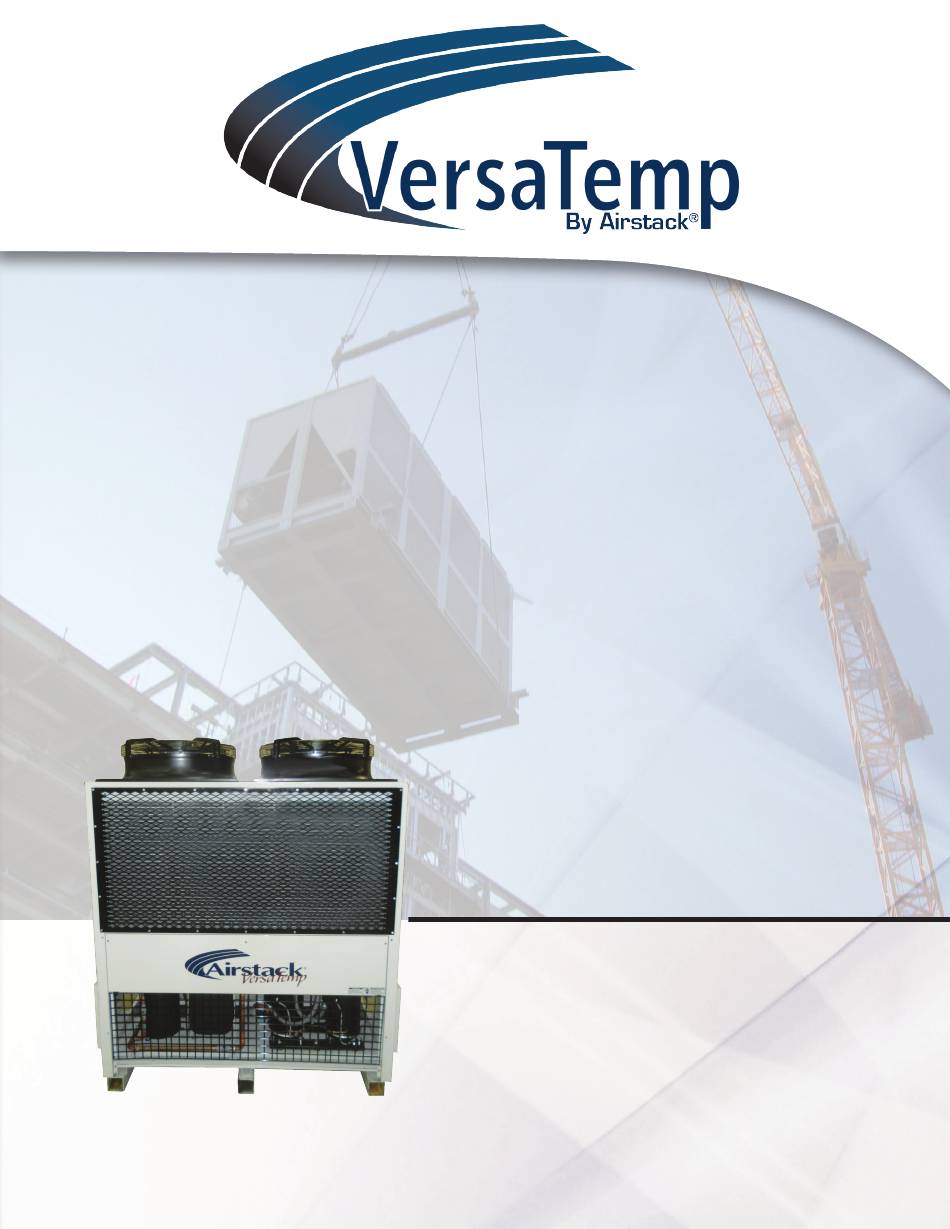

- Page 1 Air Cooled Template VersaTemp™ Water-to-Water Heat Pumps VersaTemp™ Water-to-Water Heat Pump with Auxiliary Air-Cooled Coil Product Data Catalog ARA 020X, 030X, 060X Modules...
-
Page 2: Table Of Contents
VersaTemp™ Water-to-Water Heat Pumps Contents Contents ARA Features & Benefits ...........3 Model Number Nomenclature........4-5 General Information..........6-7 Unit Dimensions, Configurations ......8-15 Electrical & Piping Requirements......16 Guide Specifications.......... 17-20... -
Page 3: Ara Features & Benefits
• Fast payback • Reduced carbon footprint • Can be easily combined with select Multistack ASP air-cooled modular chillers (See Pg. 11) plus pump, free cooling and accessory modules Innovative Design for Maximum Flexibility • Integrated source-sink/refrigerant-to-air heat exchanger—no need for a well field or backup heat sinks •... -
Page 4: Model Number Nomenclature
A - None, B - Bronzeglow, H - Heresite, E - Electrofin, S - Standard, V - Other E - ECM Fans, H - High static, L -Single Fan, V -Other R-410A Multistack has a policy of continual improvement and reserves the right to change product design, literature and specifica- tions without notice. Pump Module Misc Other Comp (Y - Yes other comp., N - No other comp.) - Page 5 VersaTemp™ Water-to-Water Heat Pumps Model Number Nomenclature Free Cool / Dry Cooler / Remote Condenser Module Fan Config (S - Standard, V - Other) Coil Coating (A - None, B - Bronzeglow, H - Heresite, E - Electrofin, V - Other) Coil ( A - Cu tube Al fin, B - Cu tube Cu fin, C- Microchannel, V - Other) Water Piping (C - Copper, S - Stainless, P - PVC, B - Black iron, V - Other, N - None) Voltage...
-
Page 6: General Information
4,000 Operating Weight with Cu/Cu coils (Lbs.) 2,300 2,920 5,610 Shipping Weight with Cu/Cu coils (Lbs.) 2,180 2,730 5,260 Multistack has a policy of continual improvement and reserves the right to change product design, literature and specifica- tions without notice. - Page 7 VersaTemp™ Water-to-Water Heat Pumps General Information Controls Multistack ARA chillers use the latest c.PCO controller tech- nology from Carel. This controller provides effective, efficient control with easy access to the configuration and manage- ment parameters using a menu system. The main screen...
-
Page 8: Unit Dimensions, Configurations
VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions, ARA 020X Dimensions Single Module... - Page 9 VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions, ARA 030X Dimensions Single Module...
- Page 10 VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions, ARA 030X Dimensions Two Modules...
- Page 11 VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions Dimensions ARA 020X with ASP 020X Units...
- Page 12 VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions, ARA 060X Dimensions Single Module...
- Page 13 VersaTemp™ Water-to-Water Heat Pumps Typical Unit Dimensions, ARA 060X Dimensions Two Modules...
- Page 14 VersaTemp™ Water-to-Water Heat Pumps Dimensions Typical Unit Dimensions, ARA 060X Four Modules...
- Page 15 VersaTemp™ Water-to-Water Heat Pumps Dimensions Typical Unit Dimensions, ARA 060X Multiwing Fans...
-
Page 16: Electrical & Piping Requirements
Fan Electrical Data 350 MCM Consult as-ordered/as-built submittals for fan data. 400 MCM 500 MCM 600 MCM Recommended Water Piping Multistack recommends a MINIMUM two to three minute water piping loop time. Hot Water Cold Water Side Side Sensor Pressure Taps... -
Page 17: Guide Specifications
VersaTemp™ Water-to-Water Heat Pumps Guide Specifications Multistack Water-to-Water Heat Pump with Heat Recovery Models ARA 020X, 030X, 060X PART 1 GENERAL 1.01 SUMMARY A. Section Includes: 1. Design 2. Performance Criteria 3. Refrigerants 4. Controls 5. Installation Requirements 1.02 REFERENCES A. - Page 18 3. Full heating capacity with zero need for chilled water. Multistack has a policy of continual improvement and reserves the right to change product design, literature and specifica- tions without notice. For more information on this and other Multistack products, contact your nearest Multistack dealer.
- Page 19 VersaTemp™ Water-to-Water Heat Pumps Guide Specifications 7. OPTIONAL: Interoperability The chiller shall be capable of interfacing to a building automation system. Interface shall be accomplished using an Interoperability Web portal and shall be capable of communication over BACNet, Modbus or LON. I.
- Page 20 Originators… Multistack invented the modular water chiller. It started with a radically simple idea: chiller modules that could be brought into the equipment room one at a time, through standard doorways and down elevators, to form a fully integrated chiller system. The idea launched a revolution and transformed Multistack into a leader in the commercial water-chiller industry.
