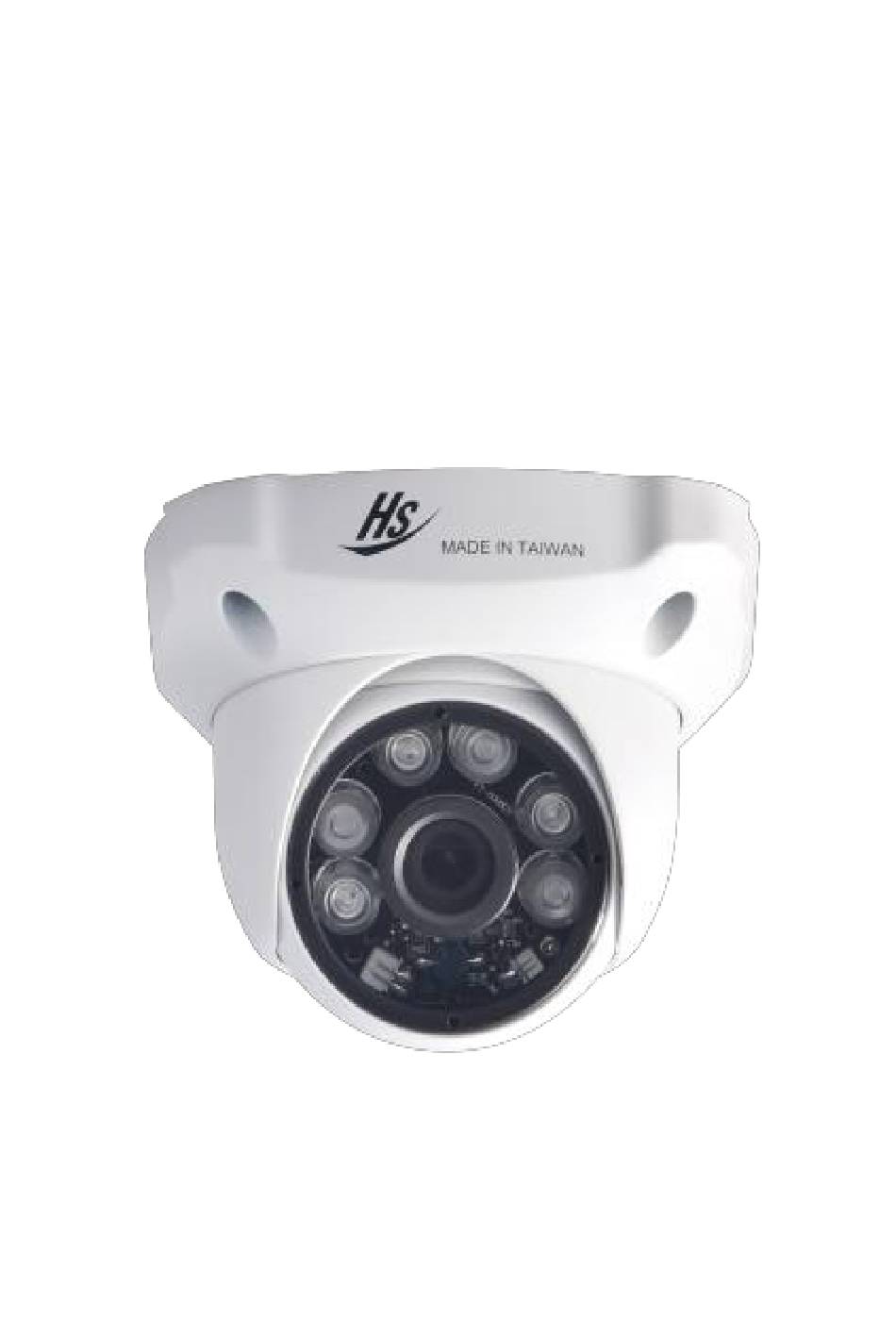

Summary of Contents for Hi Sharp HS-6IN1-D073B7
- Page 1 HD Analogue Camera_ Manual...
-
Page 2: Table Of Contents
Contents SAFETY PRECAUTIONS ............3 Specification ................4 Product contents ..............5 Product overview ..............6 Dimension ................7 COC (control over coaxial) function ........ 8 OSD Menu ................9 Connection ................10... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Specification
Specification Image unit 1/2.8” SONY IMX335 Resolution 4MP / 5MP Video Output AHD / CVI / TVI / CVBS Synchronization Internal S/N Ratio More than 50 dB ( AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/50,000 sec Min. Illumination 0.01Lux Board Lens: 3.6 mm / 4 mm / 6 mm Lens Type... -
Page 5: Product Contents
Product contents Item Figure Trapping Screws × 2 Anchor × 2... -
Page 6: Product Overview
Product overview Item Description Camera ① BNC cable ② Power cable (DC 12 V± 10%) ③... -
Page 7: Dimension
Dimension Unit : mm... -
Page 8: Coc (Control Over Coaxial) Function
COC (control over coaxial) function ① Enable the channel which you want to configure, and choose COC (control over coaxial) function under PTZ Protocol page. ② Click the right button of the mouse, choose PTZ Control. ③ Click ” Iris + “ to open OSD menu. Icon Description Open the OSD menu of camera / Enter... -
Page 9: Osd Menu
OSD Menu Notice : ”(xxx)”means (default value) 1.AE BRIGHTNESS 1~20 (12) EXPOSURE MODE GLOBE,BLC,FLC (GLOBE) LEVEL 1~9 (1) ※This item can be adjust when you choose BLC or FLC. RETURN 2.AWB MODE ATW,MWB (ATW) RGAIN 1~127 (65536) BGAIN 1~127 (65536) RETURN 3.DAY-NIGHT MODE... -
Page 10: Connection
Connection Step 1. Turn clockwise to lock. Step 2. Make sure the connection is tightened. Step 3. BNC cable Connect BNC cable and Power cable power cable. ※NOTICE : If necessary, please install 2 anchors before the first step. 85-B7D073-A502G-A...
