Prestige Glow P7B LED Par Beam User Manual

Glow p7b led par beam15w 7pcs-rgbw-4-in-1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Glow P7B LED Par Beam
USER MANUAL
GLOW P7B LED PAR BEAM-
15W*7PCS-RGBW-4-IN-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glow P7B LED Par Beam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prestige Glow P7B LED Par Beam

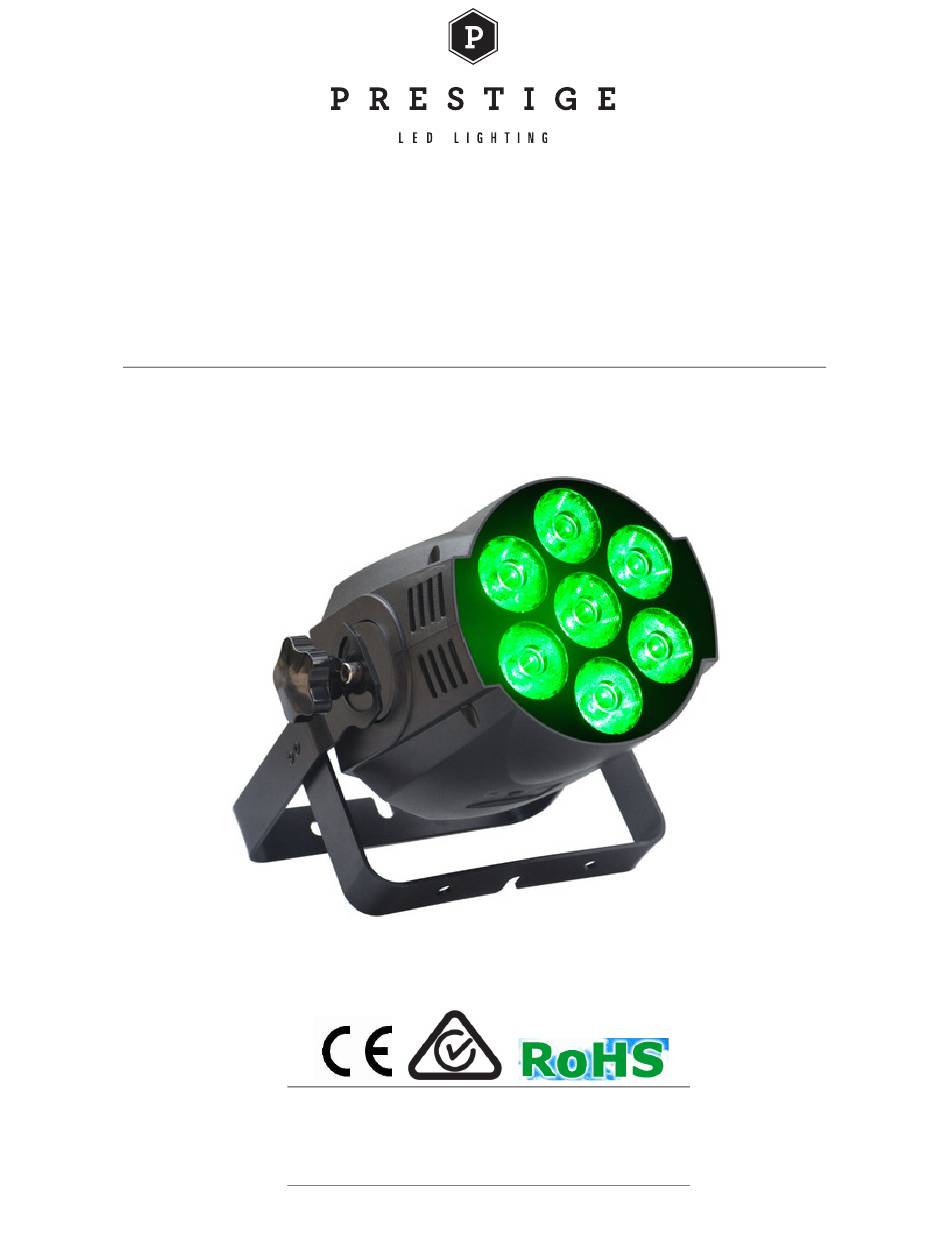

  • Page 1 Glow P7B LED Par Beam USER MANUAL GLOW P7B LED PAR BEAM- 15W*7PCS-RGBW-4-IN-1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.Summary 3   Product Introduction 3   Content List 3   2. Safety Information 3   Safety notes 3   Safety instructions 4   3. Product diagram 4   4. Features 5   5. DMX Control 5   DMX Channel（3CH）...

  • Page 3: Product Introduction

    PRODUCT INTRODUCTION The LED Par Glow P7B LED Par Beam, encased in a full plastic shell, has a light source that uses high powered OSRAM 4-in-115W LED lights, each made up of R, G, B, and W LEDs.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Ensure the power supply voltage corresponds with the required voltage for the lights, and is within the range of the requested technical restrictions. Before installing, check the lights’ fasteners and mechanical structures are in good condition and there is no apparent damage. This light is designed for indoor and outdoor use, however the working temperature must be kept below 50 degrees.

  • Page 5: Features

    4. FEATURES o The Light Source uses OSRAM 15W LED and 4 in 1 chip technology (R, G, B, W), has low power consumption, effective brightness, stable capability and a long life expectancy. o Its special secondary LED lenses ensure it has high quality light and good color mixing o Each LED color has 16666 dimming, and has 5 different modes of dimming.

  • Page 6: Dmx Channel（4Ch

    DMX CHANNEL（ 4CH） Channel DMX value Control Function Remarks 0-255 R 0-100% 0-255 G 0-100% 0-255 B 0-100% 0-255 W 0-100% DMX CHANNEL（ 5CH） Channel DMX value Control Function Remarks 0-255 General dimming 0-255 R 0-100% 0-255 G 0-100% 0-255 B 0-100% 0-255 W 0-100%...

  • Page 7: Dmx Channel（9Ch

    165-191 Dark-bright-dark adjustment auto run from CH8 192-223 Colour jumping 224-255 Sound control Not for waterproof lights 0-255 Speed Adjustment Slow to fast （7CH） DMX CHANNEL（ 9CH） Channel Control Function Remarks Priorit value 0-255 General dimming 0-255 dimiming0—— 100% 0-255 Green dimming0——...

  • Page 8: Menu Instructions

    224-255 Sound control Not for waterproof light 0-255 Speed Adjustment Slow to fast （7CH） As display setting : 6-55 DIMMER0-4 56-105 DIMMER0 106-155 DIMMER1 156-205 DIMMER2 206-255 DIMMER3 DIMMER4 6. MENU INSTRUCTIONS Addr d001-d512 DMX Mode SLAU SL.AU Slave mode 3CH\4CH\5CH\8CH DMX channel CHnd...
  • Page 9 rL-- r.000-r.255 Red dimming GL-- G.000-G.255 Green dimming bL-- b.000-b.255 Blue dimming UL-- U.000-U.255 White dimming Sound SouA So.uA Activated on/Off Display on/off DMX dimmer nodE nod0-nod4 mode The version No. UErn UE2.0 of the software 9   Glow P78 Par Beam – User Manual...

  • Page 10: Operating Instruction

    OPERATING INSTRUCTION: MENU（UP/DOWN) + (ENTER) + (UP/DOWN) + (ENTER) Exp: Select the DMX mode: o Press the MENU to go back to the initial setting. o Press UP/DOWN to display “Addr”. o Press ENTER to change the content. The display will flash. o Press UP/DOWN to change the address code and select d001.

  • Page 11: Operating Control Instructions

    7. OPERATING CONTROL INSTRUCTIONS MASTER/SLAVE Master setting: The master should be one of following modes: built-in mode, color jumping mode, fade mode, white strobe mode or manual dimming mode. This sends out a synchronized signal to the slave. To avoid the master signal and DMX512 signal from interfering with each other, the DMX512 signal must be cut off.

  • Page 12: Wiring Diagram

    Note: In order to avoid failures and interference with signal transmission, connect a resistance 120 （1/4W）at the end of the DMX connection as shown below: The conversion between 3 pin and 5 pin XLR. If the output cable of the DMX512 controller is a 5PIN, a 5PIN to 3PIN cable is necessary.

  • Page 13: Trouble Shooting

    10. TROUBLE SHOOTING Problem Suggestions Check if the power plug is working normally Check if the light switch is off or on The light won’t turn Check if the power supply is working normally Check if the DMX cable is connected to the light properly Check if the DMX512 controller is working normally.

  • Page 14: Technical Specifications

    are always light/not working. light at all Change the IC control board. Note: Seek advice from a professional prior to authoring any repairs 12. TECHNICAL SPECIFICATIONS o Input voltage:AC 100V-264V/47-63HZ o Output voltage:DC24V o Consume:144W o Lamp Type:High Power LED(8W) o Lamp Spec:4-in-1 8W（18PCS）...
