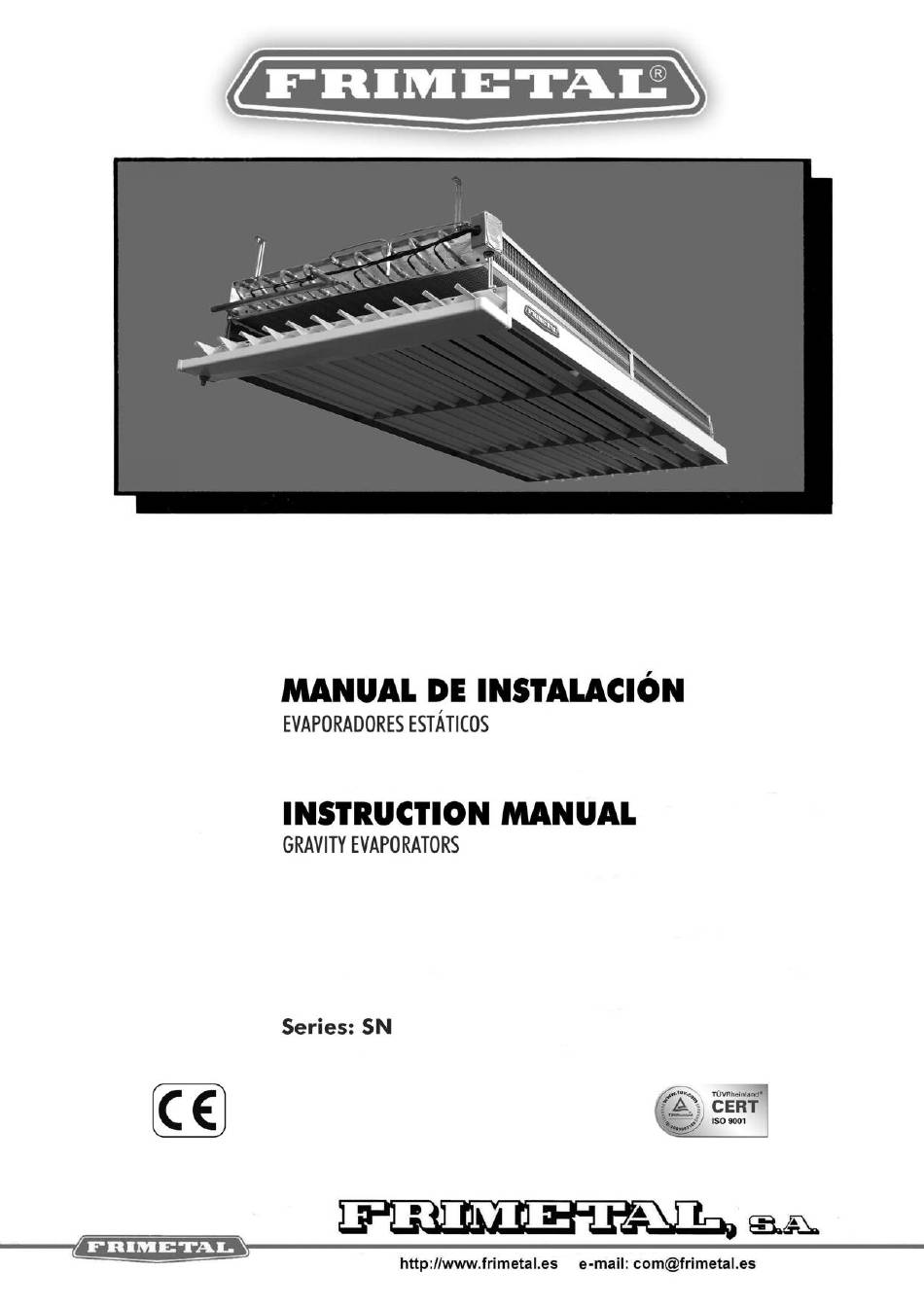

FRIMETAL SN Series Instruction Manual

Gravity evaporators
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SN Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FRIMETAL SN Series

  • Page 2 SERIE SN SERIE SN Evaporadores con movimiento de aire por convección natural Evaporators with gravity or natural convection air movement o gravedad destinados a cámaras frigoríficas para la conser- designed for preserving delicate products in cold-storage vación de géneros delicados donde se requiera una tempera- rooms, specially when constant temperature and humidity tura y grado higrométrico constante.
  • Page 3 4 Elevar la unidad con una carretilla y atornillarla al techo. 4 Lift the unit with a forklift and fix it to the ceiling. 5 Fijar los cuatro soportes regulables de la bandeja a la altura 5 Fix the four drip tray adaptable brackets at the desired deseada.

  • Page 4: Refrigerant Connections

    Technical Service of FRIMET L. Los SN pueden llevar colector y distribuidor (modelos SN-90 y The SN series can have liquid distributor and header (models SN-100), un tubo de entrada y otro de salida o dos colectores SN-90 and SN-100), inlet and outlet connecting pipes or two (modelos con agua glicolada como refrigerante).
  • Page 5 DESCONGELACIÓN ELÉCTRICA (1) ELECTRIC DEFROSTING (1) (1) SOLO P R MODELOS CON EST OPCIÓN (1) ONLY FOR MODELS WITH THIS OPTION Las resistencias son de 230V. En caso de tener línea trifásica The heating elements operate at 230V. In case there is a stan- de 400V, se deberán conectar en estrella Y, cuyo diagrama se dard current line of 400V three phase, they must be connected adjunta.

  • Page 6: Mantenimiento General

    For more information regarding capacities and technical cha- por problemas de corrosión. racteristics about the SN series, consult our General Catalogue Para más información respecto de las capacidades, modelos y which you can request at our Commercial Department.

  • Page 7: Dimensiones Y Pesos

    SERIE SN DIMENSIONES Y PESOS - DIMENSIONS AND WEIGHT...
  • Page 8 Declaración de Incorporación Declaration of Incorporation de acuerdo a la Directiva de Máquinas 2006/42/CE del Parlamento Europeo, nexo II B according to the Machinery Directive 2006/42/EC of the European Parliament, nnex II B El fabricante, FRIMET L, S. . The Manufacturer Calle San Toribio, 6 E-28031 Madrid España (Spain)

This manual is also suitable for:

Sn-20Sn-30Sn-40Sn-50Sn-60Sn-70 ... Show all
