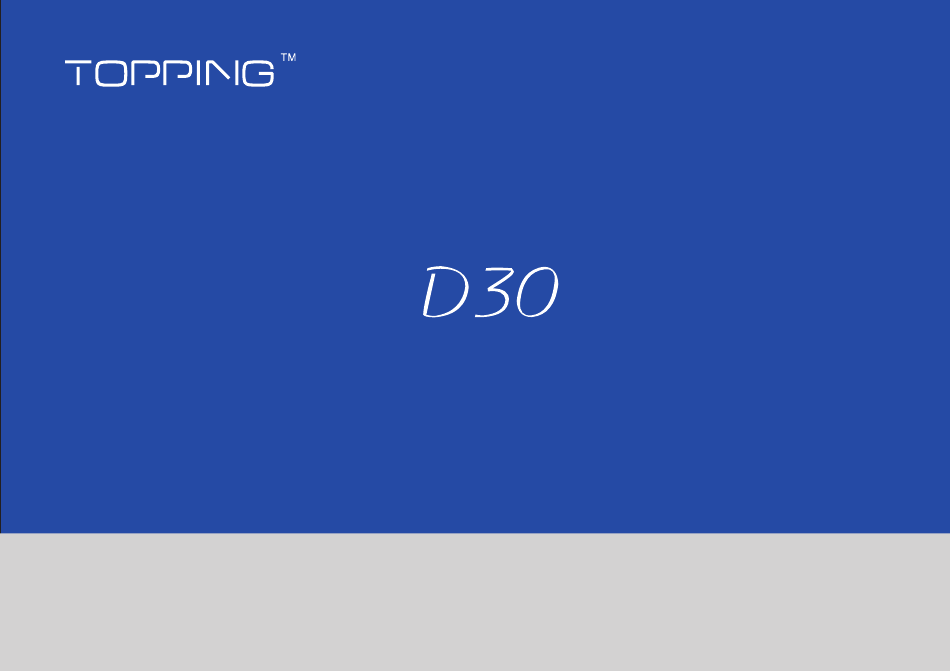

- Page 1 User s Manual...
- Page 2 Introducing Dear Users ： Thank you for purchasing TOPPING's high resolution DAC D30! D30 is designed for high resolution desktop hifi, we hope you can enjoy and love it. Please read this manual before you use D30.
- Page 3 Introducing D30 is a high performance DAC with USB, Coaxial and Optical input. USB support 16bit-24bit/32-192kHz PCM input and DSD64, DSD128 input. Coaxial and Optical support 16bit-24bit/32-192kHz S/PDIF input.
- Page 4 Spec USB input Up to 24bit/192kHz, DSD128 Coaxial, Optical input Up to 24bit/192kHz DC15V,1A Power input Dimensions 122mm X 38mm X 177mm Weight 427g D30 X 1, AC adapter X1, USB cable X 1,Warranty Accessories Card X1, USB disk(Drivers and Tutorial) X1...
- Page 5 Spec 2.1Vrms Line out voltage THD+N* 0.0006@0dBFs 1KHz 3.8u Vrms Noise* 115dB SNR* Crosstalk -125dB@1KHz * A-Weighted...
- Page 6 Components guide Power switch Input selector switch Power LED Unlock LED. It will turn on if input signal is invalid or abnormal. It go off if input signal is OK.
- Page 7 Components guide Line Out. Connect to an amplifier or other device. Coaxial input. Support PCM format, 16-24bit/32kHz-192kHz S/PDIF input. Optical input. Support PCM format, 16-24bit/32kHz-192kHz S/PDIF input. USB input. Support PCM format, 16-24bit/32kHz-192kHz input, and DSD64, DSD128 input. Power input.
- Page 8 Operate Coaxial and Optical DAC: 1. Connect Coaxial or Optical signal from your player to D30 as below. 2. Turn on D30 and select to the input you connected, check Unlock LED to judge signal is OK or abnormal. 3. Connect Line out to amplifier or other device you need. 4.
- Page 9 Operate USB DAC: 1. Connect D30 to your PC as below. 2. Turn on D30 and select to USB input (You need to install driver of D30 at the first time you use on Window OS, you can find the tutorial in this USB disk. Mac OS X 10.6.4 and higher version needn't a driver).
- Page 10 AP test result http www tpdz.net/...
- Page 11 AP test result http www tpdz.net/...
- Page 12 AP test result http www tpdz.net/...
- Page 13 AP test result http www tpdz.net/...
- Page 14 AP test result http www tpdz.net/...
- Page 15 AP test result http www tpdz.net/...
- Page 16 Precautions for daily use ① Never pull out the USB cable while connected to a computer and using the audio output. ② Ensure the output jack, could not short circuit or connect to ground. ③ You must not keep the amplifier in a hot, humid environment or drop it. ④...
- Page 17 Troubleshooting Probably is… solution Problem No power input Check power input Can not boot Change to correct Unknown signal format format Unlock Signal cable loose Check signal cable No signal input Check the player Wrong format of input Noise at Coaxial or signal or signal out of Check input signal Optical input...
- Page 18 About the weak current feel on the aluminum case In some very special case some people could feel very weak current on the aluminum case reason this phenomenon electromagnetic interference suppression component in AC adapter which built a necessary circuit between the primary and secondary This weak current is controlled within the limits of security standards required of and the production of this product in the factory have...
- Page 19 Tel : +8 6-0 20-3 7219 489 address: 26th Jiaomen Road, Huangge Town, Fax : +8 6-0 20-3 7219 489 Nansha District,Guangzhou,China. http://www.tpdz.net/...
