- Page 1 ACTIVE DIFFERENTIAL PROBES INSTRUCTION MANUAL TT-SI 8000 SERIES...
-
Page 3: Safety Summary
In environments where there is a danger of any liquid on the probe. spilled • In air temperatures exceeding the specified operating temperatures. • In atmospheric pressures outside the specified altitude limits or where the surrounding gas is not air. Man_8000_0120 www.testec.de... -
Page 4: Terms And Symbols
Terms and Symbols The following symbols appear on the product or in its documentation: Direct voltage Both direct and alternating voltage Caution, possibility of electric shock Caution, see documentation for details Earth Ground Man_8000_0120 www.testec.de... -
Page 5: Compliance Statements
August 13, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. This probe is in compliance with IEC 61010-031:2015 CAT III, Pollution Degree 2. Man_8000_0120 www.testec.de... -
Page 6: Initial Inspection

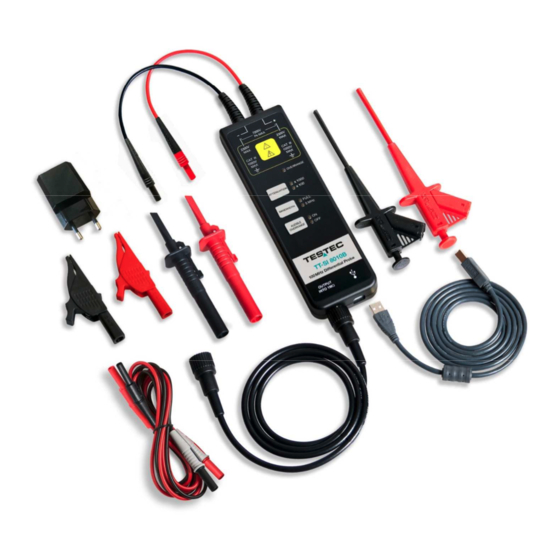

After the inspection, verify the contents of the shipment. Delivery Content • 1 x differential probe - TT-SI 8000 series • 2 x pincer clips, black & red – TT-SI GR82 • 2 x hook clips, black & red – TT-SI GR81 •... -
Page 7: Model Overview
10 V amplitude and 100 kHz frequency. 4. The square-wave will be displayed on the screen of the oscilloscope. The oscilloscope should show the same voltage and frequency as the function generator. This indicates the probe is working properly. Man_8000_0120 www.testec.de... -
Page 8: Product Overview
Maximum Differential Voltage Common Mode Voltage and Maximum Input Voltage to Earth Overrange Indicator Attenuation Selection Button and Indicators Bandwidth Limit Button and Indicators Audible Overrange On/Off Button and Indicators Load Requirement USB Power Lead Input BNC Output Man_8000_0120 www.testec.de... -
Page 9: Specifications
USB 5V/1A and 220V Adapter Safety standard EN61010-031: 2015 Specifications are subject to change without notice. All specifications apply to the unit after a temperature stabilization time of 20 minutes over an ambient range of 25°C ± 5°C. Man_8000_0120 www.testec.de... -
Page 10: Voltage Derating Curve
5 Voltage Derating Curve Derating Curve TT-SI 8071 SI 7005 Voltage Derating Derating Curve TT-SI 8050, 8051, 8052 Man_8000_0120 www.testec.de... - Page 11 Derating Curve TT-SI 8110 Derating Curve TT-SI 8010A, 8010B Man_8000_0120 www.testec.de...
-
Page 12: Accessories Description
TT-SI TL8 - Extension Test Leads Leads 4mm, 1000V CAT III, 100cm TT-SI BN8 - BNC Output Lead, 100cm TT-SI USB8 - USB Power Lead, 150cm TT-SI NT8 – USB Mains Adapter 5V/1A Man_8000_0120 www.testec.de... - Page 13 Dry the probe thoroughly before attempting to make voltage measurements. CAUTION Avoid immersing or using abrasive cleaners or solvents containing Benzene (or similar solvents) on the probe as these can cause deterioration of the probe body and cables. Man_8000_0120 www.testec.de...
-
Page 14: Service And Warranty Information
This warranty is in lieu of all other representations or warranties expressed or implied and no agent or representative of Testec Elektronik GmbH is authorized to assume any other obligation in connection with the sale and purchase of this device. - Page 15 Man_700_0919 www.testec.de...
- Page 16 TT-SI 8XXX Differential Probe User’s Manual © 2020 TESTEC Elektronik GmbH. All rights reserved. Unauthorized duplication of TESTEC documentation materials is strictly prohibited. Customers are permitted to duplicate and distribute TESTEC documentations for internal educational purposes Man_700_0919 www.testec.de...
