Fish Hawk X2 User Manual page 5

the fish haWk X2 LiQUid CrYstaL
disPLaY(LCd)

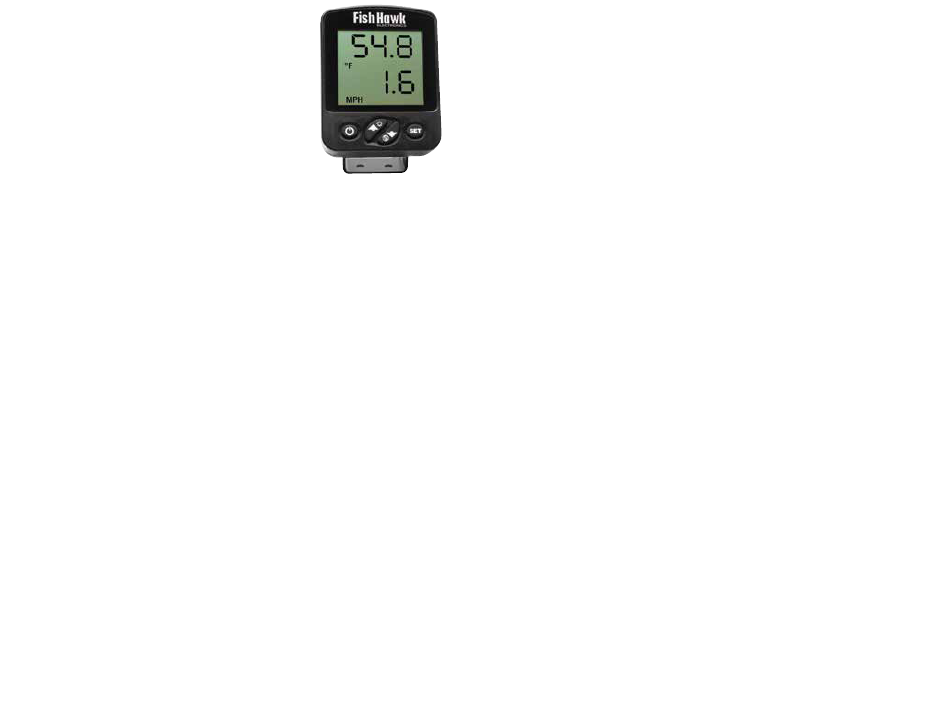

The Fish Hawk X2 Display is divided into a top and
bottom section. The top number is water temperature
at the probe. The bottom half of the display shows the
mechanical speed at the probe. If the probe signal is not
detected, dashes will appear for both the probe tempera-
ture and speed. To indicate that the probe is functioning
correctly, every time a new signal is received the decimal
points on the screen will flash.
Locating the Display In the Boat
The X2 LCD can be fixed mounted or used as a portable unit and moved from
boat to boat. The LCD requires that the Slip-Ducer™ be plugged into the connector
on the back of the case. Place the LCD in a visible location inside the boat that is
within 5-feet of the downrigger or rod holder you plan to use the Slip-Ducer™ on.
For maximum versatility, the X2 LCD includes a gimbal bracket and is fitted with
a threaded 1/4"-20 insert, which is compatible with the popular 1" RAM® Ball
mounting system. An adapter plate for use with track systems is also available at
fishhawkelectronics.com.
The X2 LCD is weatherproofed to IP54 standards to protect from boat spray and
rain events. It is not submersible.
Powering the LCD
The X2 LCD requires two AA batteries. Quality Duracell® Quantum Alkaline™
or Energizer ® Ultimate Lithium™ Batteries are recommended for maximum bat-
tery life. Expect a minimum of 40-hours of continuous use depending on ambient
temperature and back light use. The battery holders are located in the rear of the
LCD case and require the removal of two small screws to access.
Low Battery Warning
When the LCD's batteries are low a LOW BAT sign will appear on the LCD
display. When the LOW BAT sign is present you have approximately 8-hours of
run time remaining.
Adjusting the Angle of the Display
You can adjust the angle of or remove the LCD by loosening the thumbscrews
on the sides of the gimbal bracket.
Activating the LCD Backlight
The display is equipped with a backlight for low-light conditions. Enable
the backlight by pressing the UP arrow or turn the backlight off by pressing the
DOWN arrow
Operating the Fish Hawk X2 Display
The display has four screen settings. To access each setting press the SET
button. Each time the SET button is pressed the display will move to the next
screen setting.
• Screen#1 - Set the GAIN (sensitivity) with a range of 0-25. The default setting is
15. Use the UP and DOWN arrows to adjust. Increasing the gain allows probe
readings to be received from greater distances. Lower gain settings reduce the
possibility of sonar interference, and also may be necessary in shallow water
• Screen#2 - Select the temperature unit of measure to Fahrenheit or Celsius.
The default is Fahrenheit. Use the UP and DOWN arrows to adjust.
• Screen #3 - Select the speed unit of measure to MPH, KNOTS, or KPH. The
default is MPH. Use the UP and DOWN arrows to adjust. The Fish Hawk X2
will display speeds from .8 MPH to 11 MPH.
• Screen #4 - Allows you to calibrate the probe's temperature and speed
readings. Use the UP and DOWN arrows to adjust. Exit these screens by
pressing the POWER button at any time. All changes are saved at that point.
NOTE: Calibration is not necessary. No two boats will read speed exactly the
same. Most of the time factory default settings* will yield the best (and most
importantly) repeatable results.
*Factory default values for water temperature and speed are denoted for each
sensor by a missing decimal point. If you wish to go back to the factory settings
press and hold the SET button down before turning the power on. Continue hold-
ing the SET button. You will eventually see a screen with your offsets and the
decimal points will flash 10-times. Release the SET button and press power once
to restore factory settings.
