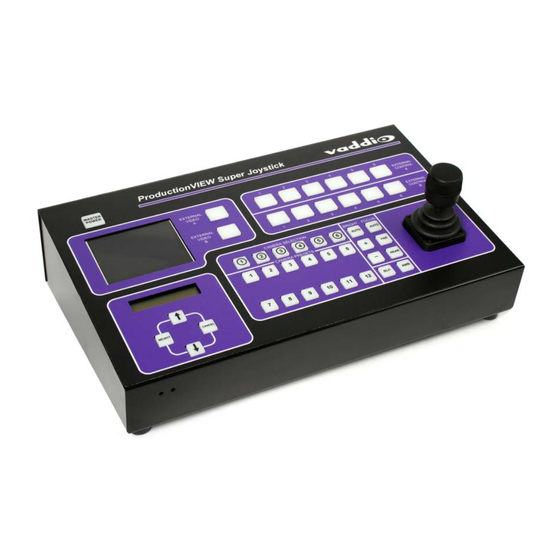

VADDIO PRODUCTIONVIEW SUPER JOYSTICK Installation And User Manual

VADDIO PRODUCTIONVIEW SUPER JOYSTICK Installation And User Manual

Integration joystick with six discrete camera control ports, on-board camera presets, lcd preview monitor and external control capability

Advertisement

Quick Links

VADDIO PRODUCTIONVIEW SUPER JOYSTICK Installation And User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRODUCTIONVIEW SUPER JOYSTICK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VADDIO PRODUCTIONVIEW SUPER JOYSTICK

  • Page 1 PDF provided by Conference Room AV Vaddio ProductionVIEW Super Joystick PTZ Joystick Camera Controller w/ 6 RS-232...
  • Page 2 Camera and Electronic Products for Integrators ™ ™ Integration Joystick with Six Discrete Camera Control Ports, On-board Camera Presets, LCD Preview Monitor and External Control Capability ©2007 Vaddio - All Rights Reserved. ProductionVIEW Super Joystick - Document 341-565 Rev B.
  • Page 3 Each of the six camera control ports will auto-configure based on the robotic PTZ camera system connected to that port upon boot up. Whether it is a Vaddio, Sony® or Canon® PTZ camera system the ProductionVIEW Super Joystick senses the cameras and provides for seamless control of the camera functions.
  • Page 4 Canon VC-C50i & VC-C50iR* *IMPORTANT NOTE: Specifications are subject to change. There are a small number of commands on the ProductionVIEW Super Joystick that will not operate with certain camera platforms. For a list of control exceptions, please contact Vaddio Technical Support.
  • Page 5 ProductionVIEW Super Joystick ProductionVIEW Super Joystick Front Panel Controls (Figure 2): 1) MASTER POWER (system on/off) 2) EXTERNAL VIDEO A • Selector Switch assigns External Video Input A to the Built-in 4” LCD Monitor 3) EXTERNAL VIDEO B • Selector Switch assigns External Video Input B to the Built-in 4” LCD Monitor 4) EXTERNAL CONTROL A •...
  • Page 6 Pin 7: TXD Pin 8: RXD 1) POWER INPUT • Use only the 18 VDC, 2.75A power supply provided with the ProductionVIEW Super Joystick. Use of any other power supply may cause damage to the ProductionVIEW and to the products attached. •...
  • Page 7 First Time Set-up with the ProductionVIEW Super Joystick: ProductionVIEW Super Joystick was designed to be exceptionally easy to use and operate right out of the box. The controls are intuitive and logical and the pin-outs are printed on the back panel.
  • Page 8 Important Note: When the camera control ports are changed or reconfigured, the ProductionVIEW Super Joystick must be restarted (power cycled) or the cameras must be rescanned for type of camera to allow reloading of the proper control codes. ProductionVIEW Super Joystick Manual 341-565 Rev. B Page 7 of 16...
  • Page 9 3-axis to customize control of the PTZ cameras attached to ProductionVIEW Super Joystick. On a per camera port basis, tilt direction and pan direction can be inverted allowing maximum flexibility when setting up the Vaddio Add- A-Cam PRO system with the Vaddio Pan/Tilt PRO pan/tilt head.
  • Page 10: Menu Structure

    ProductionVIEW Super Joystick ProductionVIEW Super Joystick Menu System Structure The ProductionVIEW Super Joystick has a back lit, 2-line LCD that displays the system menus. The menus are traversed with the up/down arrows, select and cancel buttons. The menu structure is as follows:...
  • Page 11 >Yes or No Turns on or off serial input (default is Yes or On) >Serial Echo >Select >Yes or No Turns Serial Echo on or off (default is Yes or On) ProductionVIEW Super Joystick Manual 341-565 Rev. B Page 10 of 16...
  • Page 12: General Specifications

    Brightness, Focus, AWB (auto white balance) and BLC (back light compensation) Power Supply 18 VDC 2.75 Amp Weight 7lbs/3.175kg Dimensions (H x W x D): 4” (10.2cm) x 16” (40.6cm) x 10” (25.4cm) ProductionVIEW Super Joystick Manual 341-565 Rev. B Page 11 of 16...
  • Page 13 *Carriage return required after each command Note: To display this menu on a computer, connect a computer to the RS-232 port of the ProductionVIEW Super Joystick. With a communication program (i.e. Hyper Terminal) type in ? and carriage return, this menu will be displayed. If this menu does not display, then the computer port isn’t configured correctly or the cable is either bad or pinned incorrectly.
  • Page 14 (1-24) Sets Tilt Speed Range - 24 Fastest TiltMaxSpd x Displays Firmware version installed Version (In) Zooms in (Out) Zooms out (Stop) Stops Zoom - On controlled camera. Zoom x ProductionVIEW Super Joystick Manual 341-565 Rev. B Page 13 of 16...
  • Page 15: Compliance And Ce Declaration Of Conformity

    This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 16 Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products.
  • Page 17 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2007 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ProductionVIEW, CeilingVIEW, WallVIEW, EZCamera, Quick-Connect, Add-A-Cam and PowerRite are registered trademarks of Vaddio, LLC.
