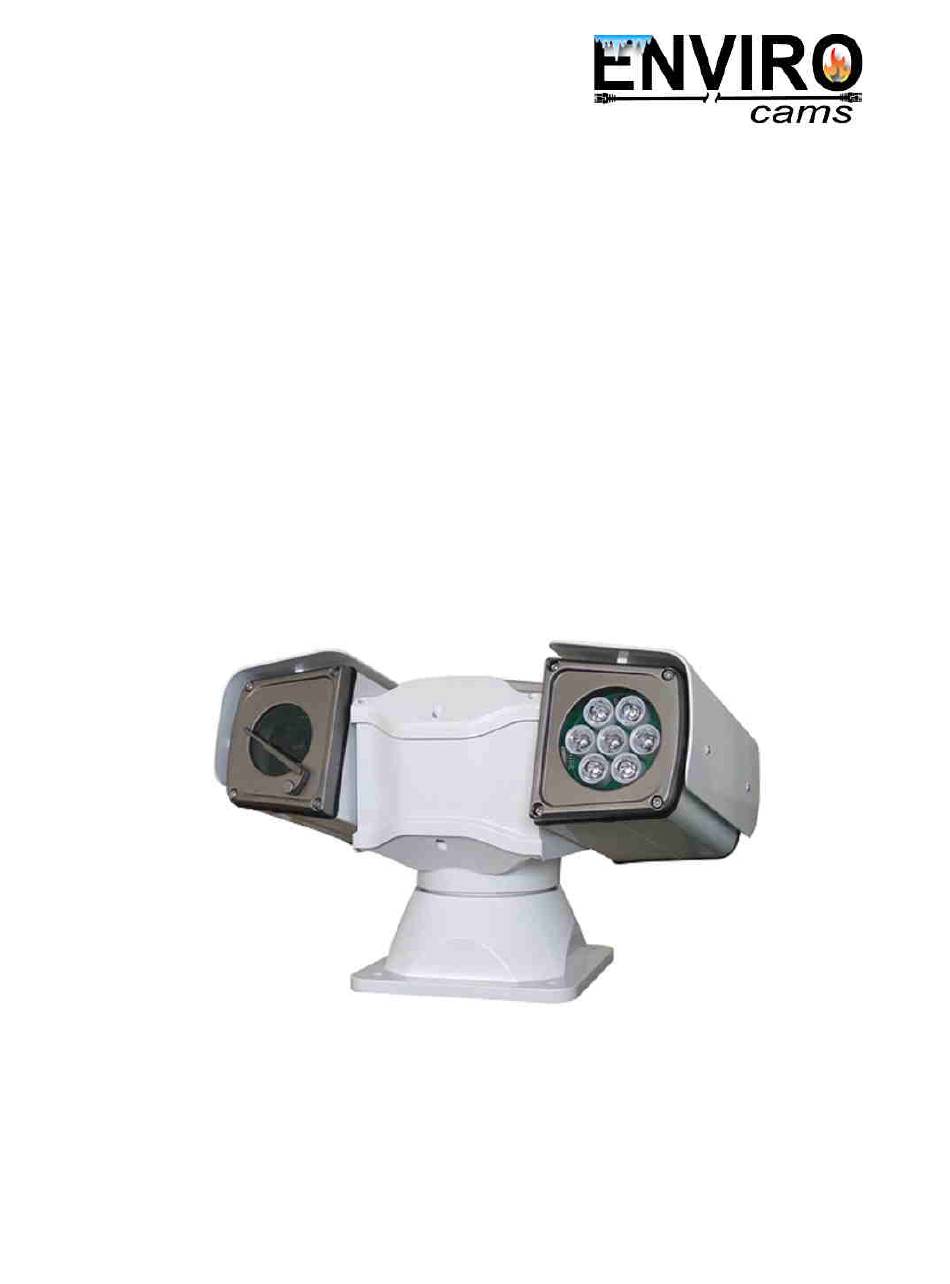

- Page 1 Night Chaser 44 Infrared High Speed PTZ Camera Manual VER:6.0 Please read the operation manual Carefully before installing and using this product www.envirocams.com...
- Page 2 PRECAUTIONS: CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO DOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lighting flash with a arrowhead symbol, in an equilateral triangle, is intended to alert the user.
-
Page 3: Important Safeguards
I . Important Safeguards 1. All the safety and operating instructions should be read before the units is operated. 2. Power supply for HD IR PTZ Camera ： DC12V. The power input power supply indicated on the base of PTZ or other related marking label. 3. -
Page 4: Setup Of Ptz Camera
e. H ome position as tracking, patterns, presets Memory function after power off, it automatically returns to the original station after power on. g. Built-in temperature sensor, with temperature display function, can control internal air cooling system by manual or auto. h. - Page 5 2.Setup of Coding Switch of PTZ Camera .As diagram 1 shows ， SW1 is used to set address of the PTZ camera from 1 – 255. The coding switches from DIP-8 to DIP-1 are equivalent to a 8-bit binary digital. DIP-8 is MSB while DIP-1 is LSB. The state “ON” of each bit means 1 while “OFF”...
-
Page 6: Video Output(Cvbs)
DIP Status Normal Baud Rate Protocols DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 PELCO-D PELCO-P Tablet 2 4. Setup of the Baud Rate of Communication. As shown in Figure 1, SW2 is used to set the protocol of communication and the baud rate used by the PTZ camera. DIP-6 and DIP-5 of SW2 are used to select the baud rate of communication and 4 different baud rates can be selected in maximum. -
Page 7: Installing Steps
IV. The installation of system 1. Installing ways 1 ） Dimension(IR Version) 2. Dimension for shock absorber Dimension for shock absorber 2. Installing steps... -
Page 8: Technical Parameter
Notes: Please connect the related adaptor according to the actual using situation: DC power supply input could be recommended as car surveillance. V. Technical Parameter Model SVN-44TW10SL Image Sensor 1/2.8 Progressive Scan CMOS Sensor Effective pixels 1920*1080@60fps Min illumination Colour:0.002Lux@F1.2,B/W:0.0002Lux@F1.2 White balance AUTO/MANUAL/ATW/INDOOR/OUTDOOR Focal length... - Page 9 Patterns function 4, pattern direction and speed could adjust Self-studying function 1 with 200 seconds Memory after power off Support Home position Presets /Tracking/ Pan scanning Coordination display Support Temperature display Support Compass function Support, the North direction could be setup Wiper function Support jog and linkage mode Power supply...
- Page 10 Operation steps 1. SET 70 (71/72/73/74/75/76/77) preset,Setting up cruise preset,(Seven other items can be set up as well.) 2. Select the preset number to be added,Use the SET Preset Bit Number command,Add up to 32 presets(Note: It can be repeated. The number of useless presets is also occupied.) 3.
- Page 11 300s 600s D. Other special presets Delete commands, note that delete commands need to be operated twice to prevent misoperation SET 90: Delete all user presets (operation twice). CALL 90: Restore factory settings (operation twice). SET 91: Delete 8 scans (operation twice). CALL 91: Delete 8 cruises (operation twice).
