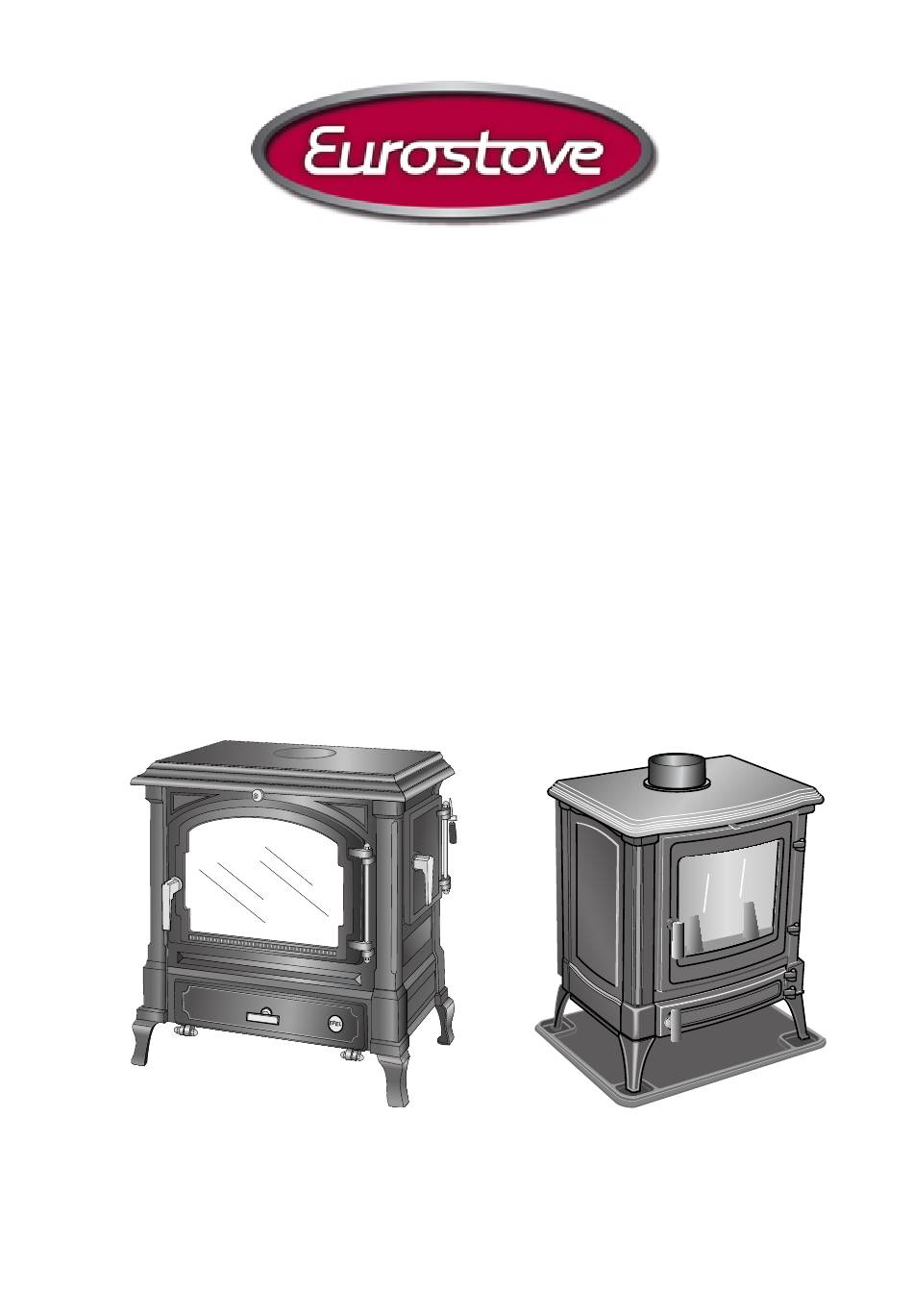

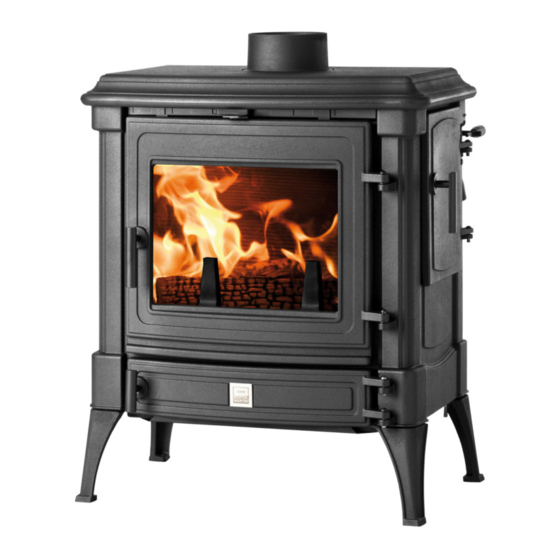

- Page 1 Servicing Instruc�ons for Harmony 1 & 3 Stanford 80 & 140 Stanford 9 & 12 Mul�fuelStoves © EUROHEATDISTRIBUTORS(H.B.S)LTD.April 2007 E& OE Instructions Part number IN1188 Edition A...
- Page 2 Your local Nestor Mar�n supplier TheEurostove web site: www.eurostove.co.uk The service engineer is responsible under the health and safety at work act 1974 vi the caus�c nature of fire cement and the possibility of disturbing asbestos and other materials such as ceramic in exis�ng installa�ons and to suggest appropriate protec�on to be given to the person (s) carrying out the servicing.
-
Page 3: Maintenance Schedule
Maintenance schedule 1. Weekly A) Remove any ash that may have fallen from the ash pan in the stove under the grate. If this is allowed to build up it can foul the ash pan which may make closing the ash pan door difficult and allow air to leak into the stove from the ash pan door seal. - Page 4 Suitable paint may be purchased from a Stove shop or direct from the Eurostove website. Respraying the Stove Surface Remove any dust and dirt with a s�ff brush or vacuum with a brush a�achment.
- Page 5 Repair of the Enamel Surface The enamel surface of the stove may become chipped if it is hit with a hard object such as a coal shovel or opera�ng tool. Suitable cold enamel touch up paint used to be available, we can no longer supply this. To prepare the surface remove any loose or flaking enamel finish and brush or vacuum the area to remove any dust and dirt.
- Page 6 If the lower pin needs to be removed, which is not necessary if you are only removing the door, undo the brass nut and li� up the pin. Order numbers for brass hinge assembly Descrip�on Harmony 1 Harmony 3 Upper door Domed brass nut...
- Page 7 Door Removal without Brass Tube To remove the door undo the handle and open the door. Li� the door and hinge pins straight up holding the hinge side of the door and the handle. Reverse the procedure to refit ensuring that if there were any washers fi�ed they are also fi�ed. Open door and li�...
- Page 8 Glass and Glass Seal Set Replacement When replacing the glass on any of the stove models supplied by Nestor Mar�n the glass seal should also be replaced. Failure to do so could cause damage to the glass or allow air into the stove in an uncontrolled manor which may be detrimental to the performance of the stove.
- Page 9 Order numbers for Glass and Glass Seal sets Stove model Seal set Glass Harmony 1 MS078 MS077 Harmony 3 31593 MS061 Stanford 80 (9) MS078 41771 Flatglass/ 39822 Bowed glass not available Stanford 140 (12) 31593 41772 Flatglass/ 40082 Bowed glass Replacement of Ceramic Strip Gaskets and Glass Lay the ceramic strips around the door frame in the shape of the door.
-
Page 10: Door Handle Adjustment
Removal of Old Seal Pull the old rope seal from the rope groove, it may require a flat bladed screw driver to li� it from the groove. Clean the groove of all accumulated dirt and old rope glue, a flat bladed screw driver and wire brush are recommended to clean the groove. -
Page 11: Door Handle Replacement
WD40 and leave to soak. The sha� can then be gently knocked through the frame of the door, taking care as the door frame is cast iron and could crack. Examples of Handle Kits Harmony 3 Firebox Door Handle Harmony 1 & 3 Lower Door Handle Brass handle assembly Spacer... -
Page 12: Firebox Components
If this is not done the flue way will become choked and the stove will not operate efficiently. Order numbers for Top Baffles Model Le� baffle Right baffle Harmony 1 20162 20163 Harmony 3 19137 19138 Stanford 80 (9) - Page 13 Grate and Grate Frame Removal and Replacement There have been a number of grate systems used in the Harmony and Stanford range of mul�fuel stoves. Harmony 1 and Stanford 80 Grate Systems The Mark 3 is the only complete grate system le� and can be fi�ed in place of the two older grate systems.
- Page 14 38272 Log guard 19113 Grate removal procedure: Harmony 1 Mk1 and Mk3 grate system Stanford 80 (9) with Mk3 grate system Harmony 3 Mk1 and Mk2 grate system Step 1. Removing Riddling Links. Remove or loosen the rear heat shield, held in place by four screws.
- Page 15 Grate removal procedure Harmony 1 and Stanford 80 (9) with Mk 2 grate system Step 1. Remove the two top baffles. Page 12. Step 2. Remove the two rear protec�on plates. Page 12. Step 3. Remove the two side protec�on plates. Page 12.
- Page 16 Removing Mk 2 Grate from Harmony 1 with a 3kW boiler Follow the procedure as discussed earlier removing the top baffles. The rear Air wash baffle protec�on plates have been replaced by the boiler so to remove the side protec�on plates the air wash baffle above the door must be removed. Undo the two nuts (10mm) and withdraw the baffle through the front door.
- Page 17 Direct draught handle Housing retaining screws Frame retaining screws Direct draught plate Descrip�on Harmony 1 & Stanford 80 (9) Harmony 3 & Stanford 140 (12) Direct draught frame 15999 15999 Frame retaining screws FF5003 FF5003 Direct draught plate...
- Page 18 Adjus�ng Thermostat Se�ng Thermostat rotating handle Thermostat damper Minimum The cold se�ng of the thermostat must be checked before the stove is operated for the first �me. The thermostat can be adjusted in two places. A may be bent for course adjustment and B for fine adjustment. With the stove cold the gap between the inside le�...
- Page 19 If you are unsure about the part you require our trained team of technical experts will help you. They may ask you to email a picture of the part you require to ensure that the correct part is iden�fied. Harmony 1 Mul�fuel 27 30...
- Page 20 Eurostove and Nestor Martin have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing.
