Summary of Contents for Blake UK BTFX1/32

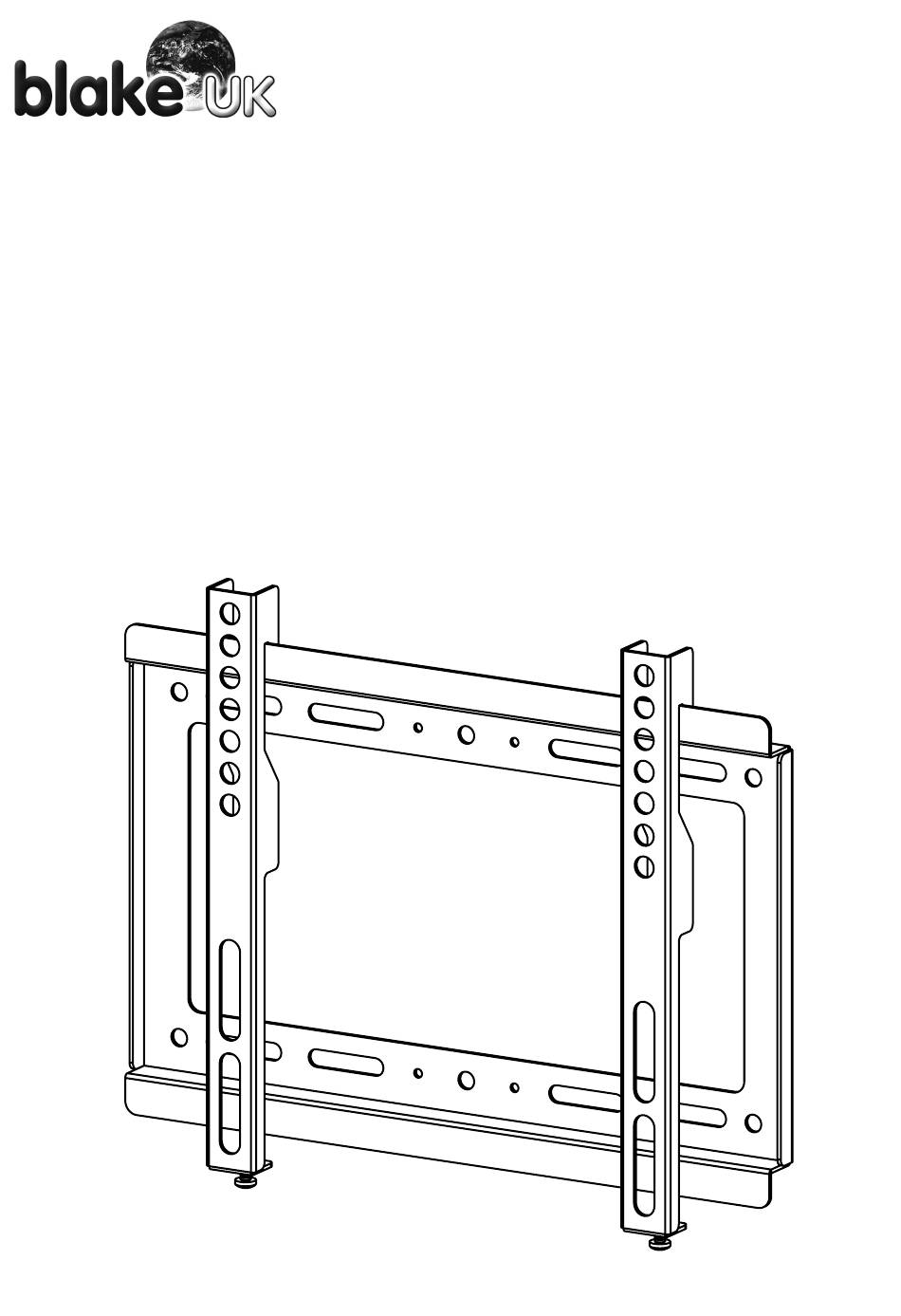

- Page 1 INSTALLATION GUIDE Super Thin TV Wall Mount BTFX1/32 Support 14" to 32" Screens Max Load Capacity: 55lbs (25kg) VESA 75x75 to 200x200 compatible...
- Page 2 Installation Instructions Model Name:BTFX1/32 14"-32" SUPER SLIM TV WALL MOUNT Important Notes Your screen will be only 0.89" from the wall. Unique horizontal level marker for easy installation. 14”-32” universal fixed wall mount supports a maximum load of 25 kg(55 lbs).
- Page 3 Mounting Wall Plate Masonry Wall Timber Stud Wall TIP:Use a level to ensure the Note:Ensure the wall plate 4mm(0.1”)Hole wall plate is leveled Note:Ensure the wall plate is mounted with the folded is mounted with the folded tabs pointing upwards. Concrete Anchor tabs pointing upwards.
