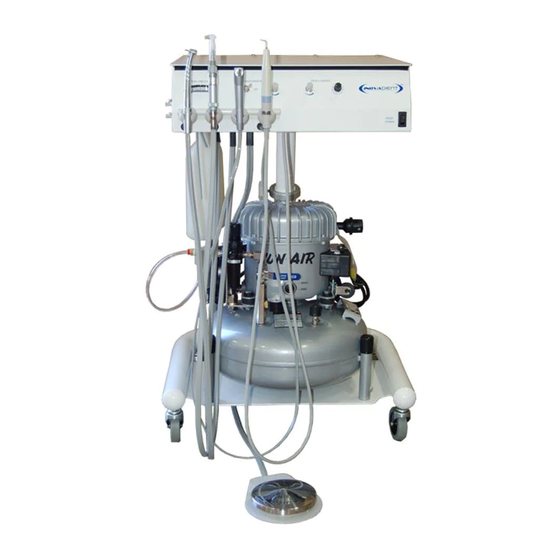

Fiber-optic high speed veterinary dental cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

F
-
O
F
-
O
I
B
E
R
P
T
I
I
B
E
R
P
T
I
V
V
E
T
E
R
I
N
A
R
Y
E
T
E
R
I
N
A
R
Y
INSTRUCTION MANUAL
Inovadent
200 Main Street | Elmwood | WI | 54740
H
S
H
S
C
I
G
H
P
E
C
I
G
H
P
E
D
C
D
C
E
N
T
A
L
A
E
N
T
A
L
A
1
E
D
E
D
R
T
R
T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Veterinary Dental Cart and is the answer not in the manual?

Questions and answers

Summary of Contents for Inovadent Veterinary Dental Cart

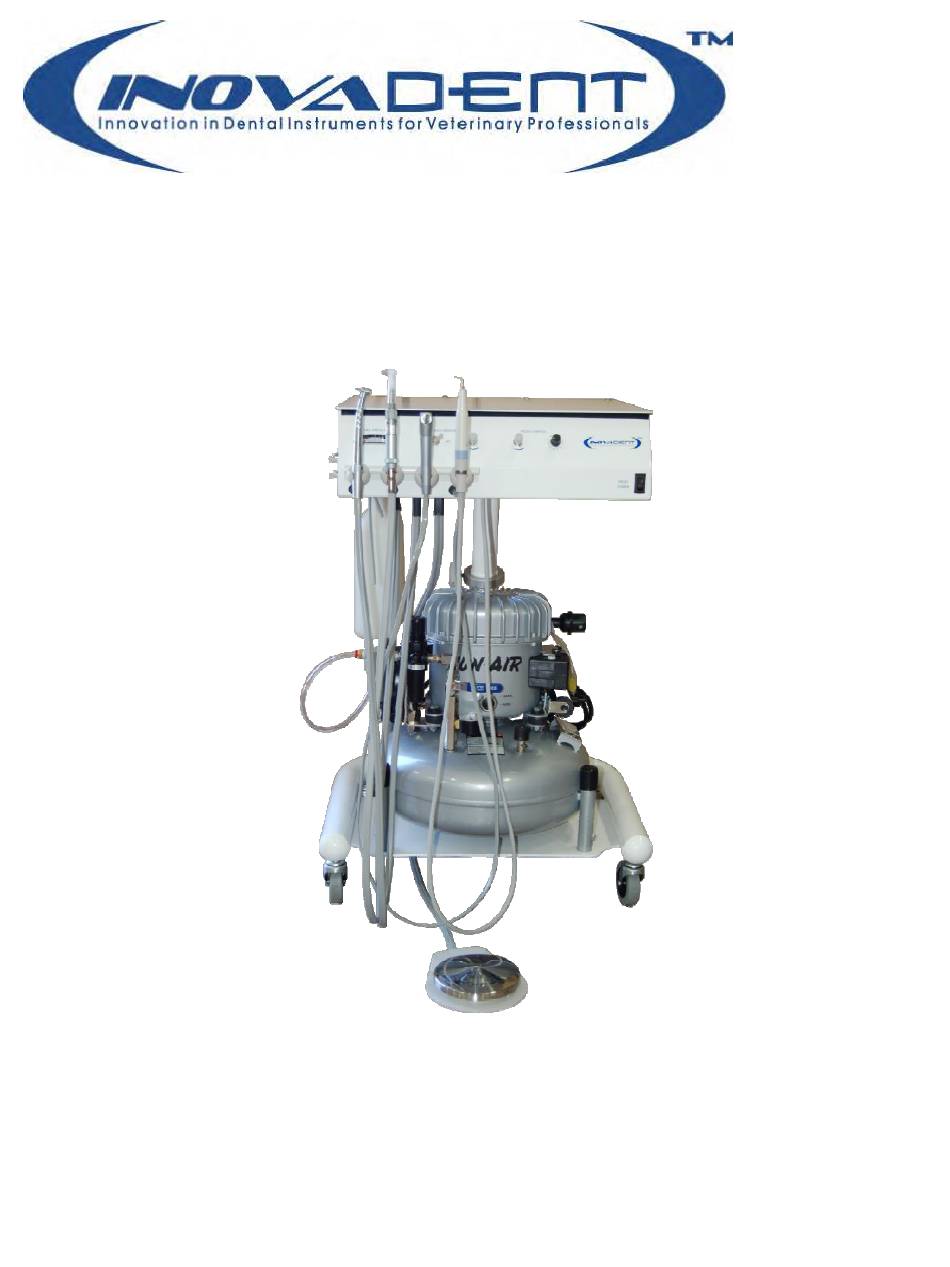

  • Page 1 INSTRUCTION MANUAL Inovadent 200 Main Street | Elmwood | WI | 54740...

  • Page 2: Table Of Contents

    Table of Contents Warnings ..........................................3 High Speed Veterinary Dental Cart ..................................4 Installation and Commissioning Dental Cart ................................5 Unpacking & Set-Up ...................................... 5 Possible Adjustments Required Subsequent To Shipping ........................6 Handpiece Descriptions ......................................8 Hand pieces – General ....................................8 Air/Water Syringe ......................................

  • Page 3: Warnings

    It is suggested that patients or professionals who have pacemakers avoid using a Piezoelectric scaler. • The Inovadent™ Veterinary Dental Cart should be powered from a separate wall outlet with a grounding point. • Do not dismantle the machine. Violation of this requirement may cause harm to the user or machine and void the Warranty.

  • Page 4: High Speed Veterinary Dental Cart

    2. High Speed Veterinary Dental Cart...

  • Page 5: Installation And Commissioning Dental Cart

    3. Installation and Commissioning Dental Cart 3.1 Unpacking & Set-Up 1. Unpack carefully from crate. Tools required: flat head screwdriver and paper towel. (Packaging should be kept for future shipping purposes, in the event the entire unit needs to be returned for service). 2.

  • Page 6: Possible Adjustments Required Subsequent To Shipping

    14. Operating pressures for each handpiece have been factory set; however minor adjustments may be required due to shipping - see “Adjustments” below. ® 15. Complete and mail Warranty cards for Inovadent and JUN-AIR 3.2 Possible Adjustments Required Subsequent To Shipping 1. Verify the air pressure discharge from the air regulator/filter (gauge located between the air tank and the compressor motor on the front of the unit) is at 60 PSI (See Figure 3.6).
  • Page 7 is very sensitive, so a minor adjustment will cause a significant change. ➢ Follow the same procedure as above to adjust the Low Speed Handpiece (the middle adjustment knob) to 25 PSI, and to adjust the Piezoelectric Handpiece (the far right adjustment knob) to 50 - 60 PSI.

  • Page 8: Handpiece Descriptions

    4. Handpiece Descriptions 4.1 Hand pieces – General • The handpieces have pre-designated holder positions as follows: Fiber-Optic/High Speed far left, Low Speed second from left, Air/Water second from right and Piezoelectric far right (See Figure 4.1). Note: Handpiece holder positions have been temporarily labeled. The labels can be removed at any time.

  • Page 9: Air/Water Syringe

    4.2 Air/Water Syringe • To operate the Air/Water Syringe, press the power switch to ON, lift the syringe from the holder and depress the respective button(s) on handpiece to obtain either air or water, or both. 4.3 Built-in Piezoelectric Scaler and Handpiece •...

  • Page 10: Care & Maintenance Of The Piezoelectric Scaler & Handpiece

    4.4 Care & Maintenance of the Piezoelectric Scaler & Handpiece 1. Clean housing and foot pedal cords with a non-chloride disinfectant. Use a solution that does not contain iodine to prevent staining of the unit. 2. Disconnect the cord and Piezoelectric Handpiece and clean handpiece with a disinfectant (non-chloride, non- iodine).

  • Page 11: Klaw™ Veterinary Ultrasonic Tips

    5. KLAW™ Veterinary Ultrasonic Tips 5.1 KLAW Tip Installation ™ ™ ™ ™ Your Veterinary Dental Cart includes three KLAW tips; KLAW 1, KLAW 4 and ™ KLAW 6. To install a tip on the handpiece; hold the handpiece in one hand, place ™...

  • Page 12: Klaw Tip Wear Guide

    5.4 KLAW Tip Wear Guide ™ ™ KLAW tips will need to be replaced, on average, every 3 - 4 months, based on appropriate use and 8 - 10 dental procedures per week. See Figure 5.2 Figure 5.2 5.5 KLAW Tip Care &...

  • Page 13: End Of Day Procedure

    Figure 6.1 cartridge to purge moisture from air system (See Figures 6.1 and 6.2). Inovadent recommends changing filters annually. 2. Purge all water from handpiece cords. Water must be purged from the High Speed Handpiece, the Air/Water, Syringe, and Piezo Handpiece daily.
  • Page 14 Reattach, and then depress the foot pedal blowing air through the handpiece for 15 to 20 seconds. (See Figure 6.5) • Inovadent recommends using Bio Lube™ Cleaner for the cleaning and lubricating process. (See Figure 6.9) Figure 6.5 7. Switch the water bottles switch to the OFF position (See Figure 6.6).

  • Page 15: Jun-Air Compressor

    Note: Inovadent recommends using Bio Lube™ Cleaner (Spray Can) for the cleaning and Bio Lube™ Oil (Pen)lubricating process. (See Figure 6.9) Figure 6.9 ® 7. JUN-AIR Compressor • Review the JUN-AIR® Compressor Operation Manual before use. • DO NOT operate the compressor if the oil level is below the minimum line on the glass bubble window.

  • Page 16: Technical Support

    8. Technical Support Please contact ARO Systems with any questions or concerns. Many technical support issues can be easily handled via the telephone. ARO Systems 3/67 Wigg Street Wodonga, 3690 Phone: 02 6059 6664 Fax: 02 6056 2355 E-mail: support@arosystems.com.au 9.

  • Page 17: Warranty

    Merchandise returned as defective will ™ not be replaced until it has been determined to be defective by Inovadent . Please allow up to 3 - 4 weeks for ™...

  • Page 18: Appendix

    11. APPENDIX 11.1 Fiber-Optic Bulb Installation & Removal CAUTION: The bulb is a halogen-type bulb and is susceptible to reduced lifespan from oil (even from your hands). Use gloves if possible to avoid touching the bulb glass. (See Figure 11.1) 2.

  • Page 19: Adding Oil To The Compressor

    11.2 Adding Oil to the Compressor Note: Oil level should be checked daily. 1. Remove oil plug, which is located on the top of the compressor head. Using a 22 mm wrench, turn the plug counter-clockwise to loosen the plug. (See Figure 11.5) 11.5 Figure...

  • Page 20: Changing Air Filters

    11.3 Changing Air Filters Note: Filters should be changed annually and can be ordered from any Inovadent ™ distributor. Micro-Mist Filter Item # 54916 Filter Element Item # 54918 1. Make sure all air has been drained from the dental system.

  • Page 21: Checking & Changing Fuses

    3. Check the fuse for continuity. If the fuse needs to be changed, use the spare 1 Amp fuse provided with your unit. Fuses can be purchased ™ from your Inovadent distributor or local electronics store. Figure 11.14 Figure 11.14 4.

  • Page 22: High Speed Handpiece - Maintenance And Care

    12. High Speed Handpiece – Maintenance and Care In order to always provide the handpiece with clean air, water accumulated in the compressor must be drained out ONCE A DAY. DAILY LUBRICATION IS ABSOLUTELY ESSENTIAL. 12.1 Operation and Maintenance Operate the handpiece at a pressure of 35 PSI. The handpiece is engineered to attain speeds of 400,000 RPM at 35 PSI.
  • Page 23 IMPORTANT: Lubricate by placing a drop of oil into bur hole to maintain auto-chuck best retention. never allow oil to dry out in chuck spring or auto-cuck spring. this can cause malfunction. NOTE: NEVER AUTOCLAVE HANDPIECE WITH BUR IN PLACE 12.6 To Prevent Bur Drop-Off If you experience any one of the following symptoms, the most likely causes are contamination and/or...
  • Page 24 12.7 Important Notices Disinfection-ready Symbol This symbol on your Inovadent product means that the product can be cleaned and disinfected with a thermodisinfector. Autoclave Symbol This symbol on your Inovadent product means that the product can be sterilised with an autoclave at 135?C maximum.

  • Page 25: Low Speed Handpiece - Maintenance And Care

    Recommended operating pressure: 25 PSI (Maximum air pressure: 50 PSI) 13.3 Maintenance To keep the Low Speed Handpiece in good condition, only use dental handpiece oil. Inovadent recommends using Bio Lube™. Lubrication should be performed daily after cleaning the unit. Lubrication Be sure to lubricate after autoclaving or in the event that water and/or dust gets inside.
  • Page 26 13.5 WARNING: a. Do not drop Low Speed Handpiece or apply excessive force or impact on to the connected bur. This will void the warranty (Prevent the bur on Low Speed Handpiece from hitting others during autoclave). b. When water gets inside the handpiece, lubricate three times. c.

  • Page 27: Piezoelectric Parts

    14 Piezoelectric Parts ™ ™ ™ KLAW KLAW KLAW Item # 54830 Item # 54831 Item # 54832 ™ ™ ™ KLAW KLAW KLAW - E Tip 30mm Item # 54833 Item # 54834 Item # 54840 ™ ™ ™ KLAW - E Tip 40mm KLAW...

  • Page 28: Handpiece Parts

    15 Handpiece Parts High Speed Handpiece with Fiber-Optics High Speed Handpiece Non Fiber-Optic Item # 54900 Item # 54901 Fiber-Optic Light Bulb 4-Hole Gasket 5-Hole Gasket Item # 54905 Item # 54911 Item # 54910 High Speed Turbine End Cap for H/S Handpiece Item # 54903 Item # 54907 Prophy Angle...

  • Page 29: Burs

    16 Burs #2 Round Bur #701L Carbide Bur #330 Pear Shaped Bur Item # 54821 Item # 54803 Item # 54820 Standard Length Standard Length Standard Length Item # 54822 Item # 54805 Surgical Length Surgical Length #699 Carbide Bur #700 Carbide Bur #702L Carbide Bur Item # 54810...

  • Page 30: Replacement Parts

    17 Replacement Parts Water Bottle Gasket Regulator Filter Micro-mist Separator Filter Item # 54912 Item #54918 Item # 54916 JUN AIR Compressor Oil Water Bottle, 1 Liter Ultra Scale Item # 54884 Item # 54925 Item # 54270 Manual Number 20-450-0011...
