Summary of Contents for KLUNDER KL 2000

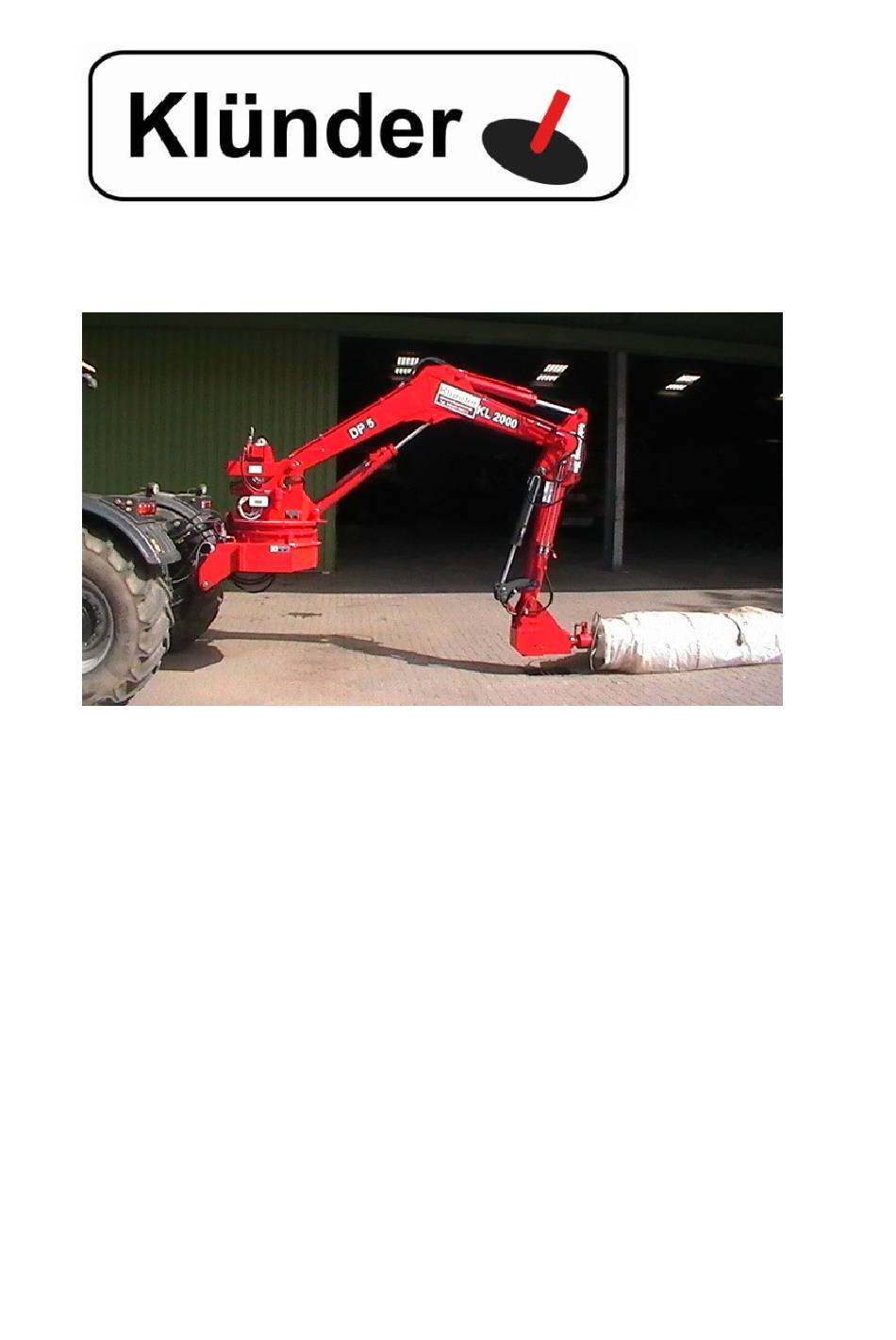

- Page 1 Operating and maintenance instructions Sugar beet covering eqipment KL 2000 Hermann Klünder GmbH Brückenstraße 1 31628 Landesbergen Tel: +49(0)5025/94073 Fax: +49(0)5025/94074 www.mietenpflege.de...
-
Page 2: Table Of Contents
Table of contents 1. Delivery 2. Safety instructions 3. Before first use 4. Operation 5. Maintenance 6. Declaration of conformity 7. Appendix: Description haystack maintenance 8. Appendix: Operating instructions excavator Appendix: Spare parts... -
Page 3: Delivery
1. Delivery The fleece-winding machine leaves our factory according to your specifications. Upon receipt, you must make sure that everything was properly delivered. As a rule, the fleece winder is ready for use upon delivery. However, before using the machine and after the first use, you must check all hydraulic, screw and bolt connections . -
Page 4: Before First Use
When using public roads or paths, the machine must be equipped in accordance with traffic regulations. This machine must be tested annually according to UVV guidelines. A crane book shall be kept. Work on public roads is prohibited. Warning signs Read and observe the operating and safety instructions. - Page 5 4.2 Hydraulic connection In the basic configuration, two control devices and a pressure-free return flow are provided for the hydraulics. Hoses are appropriately marked. One cable provides the pressure supply for the control block (continuous pressure). The pressure-free return flow to the tank must always be ensured, otherwise control blocks may be damaged.
-
Page 6: Maintenance
5. Maintenance Refer to the maintenance plan of the company Ostler (in the annex). In the winding spindle, bearings are fitted with 2 grease nipples. Moreover, the drive chain must be lubricated and re-tensioned once a year. The sprockets in the swivel head must be filled once a year with grease -access from below. -
Page 7: Declaration Of Conformity
D-31628 Landesbergen erklären in alleiniger Verantwortung, dass das Produkt declare under our own responsibility, that the product dichiariamo, sotto nostra esclusiva respnsabilita`, che il prodotto Haystack maintenance unit Kl 2000 Typ / Type / Tipo: ____________________ Series/serial no.: ___________________ sich diese Erklärung... - Page 8 7. Sugar beets- calmp maintenance Arrangement of the clamp Beets should be provided in removable and uniform stacks (no hilly profiles). Place haystack on flat and passable surface with no furrows directly to the stack. Clamp maintenance right after digging but before cultivation or ploughing. For fleece attachment, it is best if the clamp is accessible with the tractor.
- Page 9 Excess fleece lengths must be tucked under the calmp. There should be no fleece in mud or puddles; in case of frost, it may tear when picked up. Drive around the clamp with the "Klünder-disc" at ca. 20 cm height. The disc should push the fleece at around 15 - 20cm into the haystack.
- Page 10 Stow away the wound fleece in the trailer. If the fleece is covered with lots of snow or a lot of beets are frozen, the fleece must be detached with a paddle (see picture). The fleece is then pulled from the stack and left lying until it is thawed.
