Index
1. Each part and their names
2. Safety
3. Safety lock
4. Product specification and technical parameters
5. Battery and charger usage
6. Machine operation and method employed
7. Common faults and removal methods
8. Replacement of gears
9. Care and maintenance
1. Each part and their names

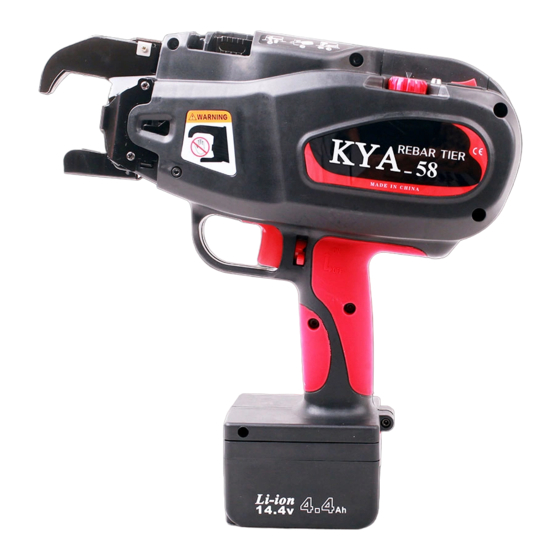

Front and back of machine
Window
Release Lever
Arm A unit
Curl Guide
Cover P
Trigger
Battery
Locking Piece
Adjusting Knob
Main Switch
Alarm Lamp
Trigger Lock
Knob
Battery Box
Cap
Terminal
Reel stay
Reel Stopper
Wire Coil
Plug Juck
Charge Lamp
Stand by
Lamp
1
Wire Guide C
Reel Holder
Charger
Main Plug
Label
Power Cord
Advertisement
Related Manuals for KYA KYA-210B
Summary of Contents for KYA KYA-210B
- Page 1 Index 1. Each part and their names 2. Safety 3. Safety lock 4. Product specification and technical parameters 5. Battery and charger usage 6. Machine operation and method employed 7. Common faults and removal methods 8. Replacement of gears 9. Care and maintenance 1.
- Page 2 2. Safety This equipment is a high performance battery operated tool.Failure to follow the warnings and instruction may result in electrical shock,fire or serious injuries. 1) .Always operate the tool with personal protective equipment(Safety helmet and eye protection).Using the appropriate safety equipment at all times will avoid body injury.
- Page 3 6) .When the machine is not being used or when abnormalities occur,please turn the switch off.When changing or adjusting the battery,make sure to turn off the main switch,and lock the trigger. 7) .Do not place fingers,hand or body position at the wire coil area.This may result in distortion of the coil and may cause body injury.
- Page 4 12) .When charging,the ambient temperature shall be at the range of 0 ℃ -45 ℃ ,super-cooling or over-heating environment suitable charging. 13) .Continuous use of charger is not allowed as this will shorten the life span of the battery and the performance of the charger.When not in charging mode,the power supply must be switch off.
- Page 5 Turn the switch on for power supply when it operation. 2） .Trigger lock Always turn the trigger lock to OFF position when not in use or when changing the coil. 4.product specification and technical parameters 1).Main technical parameters Model KYA-210B KYA-400B Dimension(mm) 275*120*275 295*120*275 Total weight(kg) 2.2(include battery) 2.25(include battery)
- Page 6 3).The corresponding rebar size for each tying machine KYA-210B Longitudinal steel dia. ϕ6 ϕ8 ϕ10 ϕ12 ϕ14 ϕ16 ϕ18 ϕ6 Trave Ο Ο Ο Ο Ο Ο Ο ϕ8 Ο Ο Ο Ο Ο Ο Χ ϕ10 Ο Ο Ο...
- Page 7 3) .Use 100-240V AC,50/60HZ power supply for the charger.Fully insert the battery into the charger slot and it will begin to charge automatically and is being indicated by the charging light.It will take about 70 minutes to fully complete charge a battery. 4) .It is recommended to charge the battery at 0℃-45℃.Do not charge under extremely cold or hot environment.
- Page 8 6) .The wire must pass through the wire guide C,in between the two feeding gears till it reaches the end gap. 7) .Keep inserting the wire into the pipe until it reaches the arm A unit. 8) .Release the release stopper and confirm the release lever returned...
- Page 9 3) .Push the reel stopper to open the reel stay,take out the reel holder. 3. Tying procedure 1) .Unlock the trigger lock,keep the mechanical arm on the rebars with a 45 angle at a vertical position to the rebars.Press the trigger and tool will tie automatically.
-
Page 11: Replacement Of Gears
8. Replacement of gears Loose the Wire Guide C screw here Feeding Plastic cover Gear A Fig. 1 Fig. 2 Fig. 3 Fig. 1 1). Loose screws fastened 2). Use hex wrench to take 3). Use plier to take down the in motor plastic cover by off wire guide C which is E-ring and washer fixed on... -
Page 12: Care And Maintenance
3) Fix wire guide C on the plate. 4) Then fix the screw in the plastic cover of motor 9. Care and maintenance 1) . The storeman must carry out a daily inspection before sending or getting back the machine; the user must carry out a daily inspection before using.
