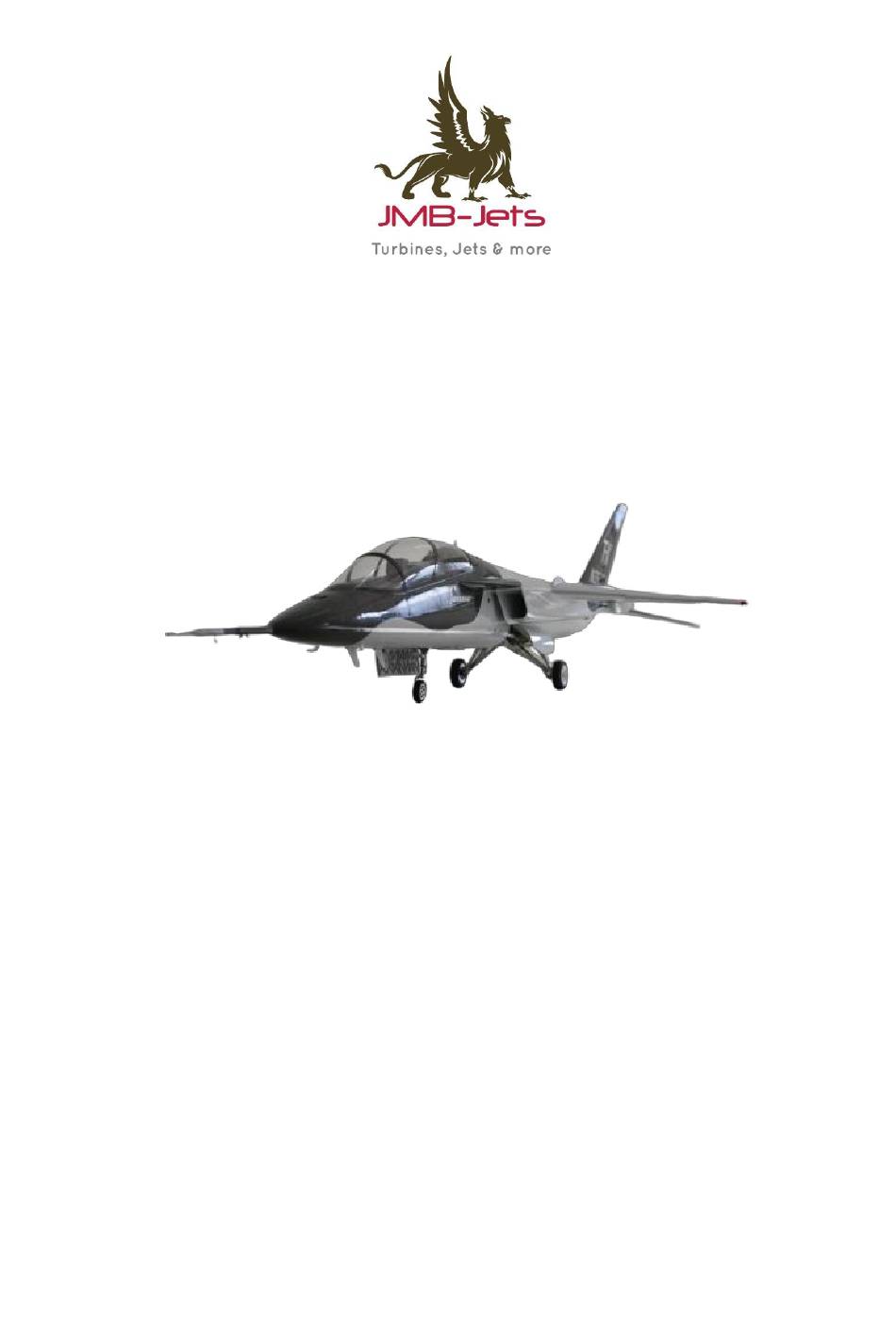

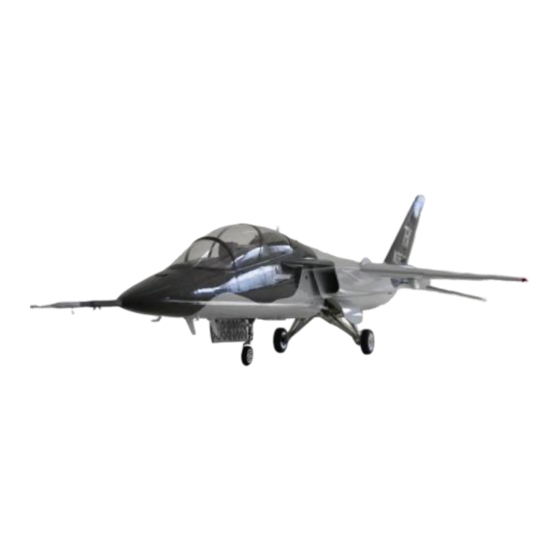

- Page 1 JMB-Jets Boeing TX/ T7A Instructions Specifications: Length: 2050mm Wingspan: 1340mm Weight dry: 8,2 kg with K85G For turbines: 7-12kg max...
- Page 2 Dear Customer, thank you for purchasing our JMB-Jets jet product. Following you can find greater information for building and flying this model. Before you get started building and setting-up your aircraft, please make sure you have read this Instruction manual and understood it. If you have any questions, please don’t hesitate to contact us.
-
Page 3: Installation
Installation Take out all components You will find -retract module with integrated sequencer -brake module -light module main lights and a small black module for gear lights -spare parts as screws and scale parts -wooden plates to fix the engine small ones as K70 or K85... - Page 4 Thrust tube The tube is fixed provisory for transport please take out the screws and adjust as here on picture...
- Page 5 Install of the engine Install the engine like on pictures for K70 or K85 need to use plywood or else to ix it Not needed with K100 or K120...
- Page 6 All servos are preinstalled please check all hinges and screws; due transport they can get loose. The servos are all HV Install your receiver and all your components you will find some pictures in attachment. Connect pump tubing on tank and UAT.
- Page 7 Electric retracts, door sequencer and brakes The door hinges are not fixed yet to avoid damages on servos and door, first make dry tests, then fix the gear doors to the servos and try the waypoints and adjust you have digital servos so may be some noise can be, but this is ok Test the doors always first without connected gears and gears up!!! Instruction Manual...
- Page 8 A- Multi-function landing gear controller features: 1. Automatic identification current 2. Set the voltage of the door servo 3. Set the CW and CCW direction and stroke of the door servo 4. Set the door retraction sequence Long press the mode button to enter the setting mode: 1.
- Page 10 B- Electric retract control operating principle： In the normal service condition， • Turn on the retract switch then the control system will activate the retraction system to open after checking the door fully open by Auto. The doors will close after the retract are open. •...
- Page 11 Retracts Trouble shooting: Problems Solutions Check whether the retract controller signal The retract controller signal lines connected to lines connected correctly the retract channel again Check whether the remote control signal is Check the switch channels. Good debugging normal remote control signal The Retract doesn't move Check whether the remote control retract...
- Page 12 JP New Adjustable E-Brake Using illustration: Voltage input: 7.4v - 25.2v ( 2S -6S Li-Po ) Voltage output: Signal input: Connected to the brake wheel channel of receiver (on/off channel of remote control),and set an action. Setting: The percentage of transmitter which control the brake force. +/-100% is max brake force.
- Page 13 Navigation light controller manual A1：Left wing red light B1: The vertical tail lights B2：The vertical tail lights C：Landing gear lights are always on D1：Blinking white light D2: Blinking white light D3: Blinking white light A2: Right wing green light Setup CG: 115mm Elevons: 50mm up et down Taileron: 8mm up/down...
- Page 14 Enjoy Nice maiden and a lot of fun Manufacture: JMB-Jets SARL Contact +352621138851 Web: www.kingtechturbine.lu Mail: kingtech.turbine@gmail.com...
