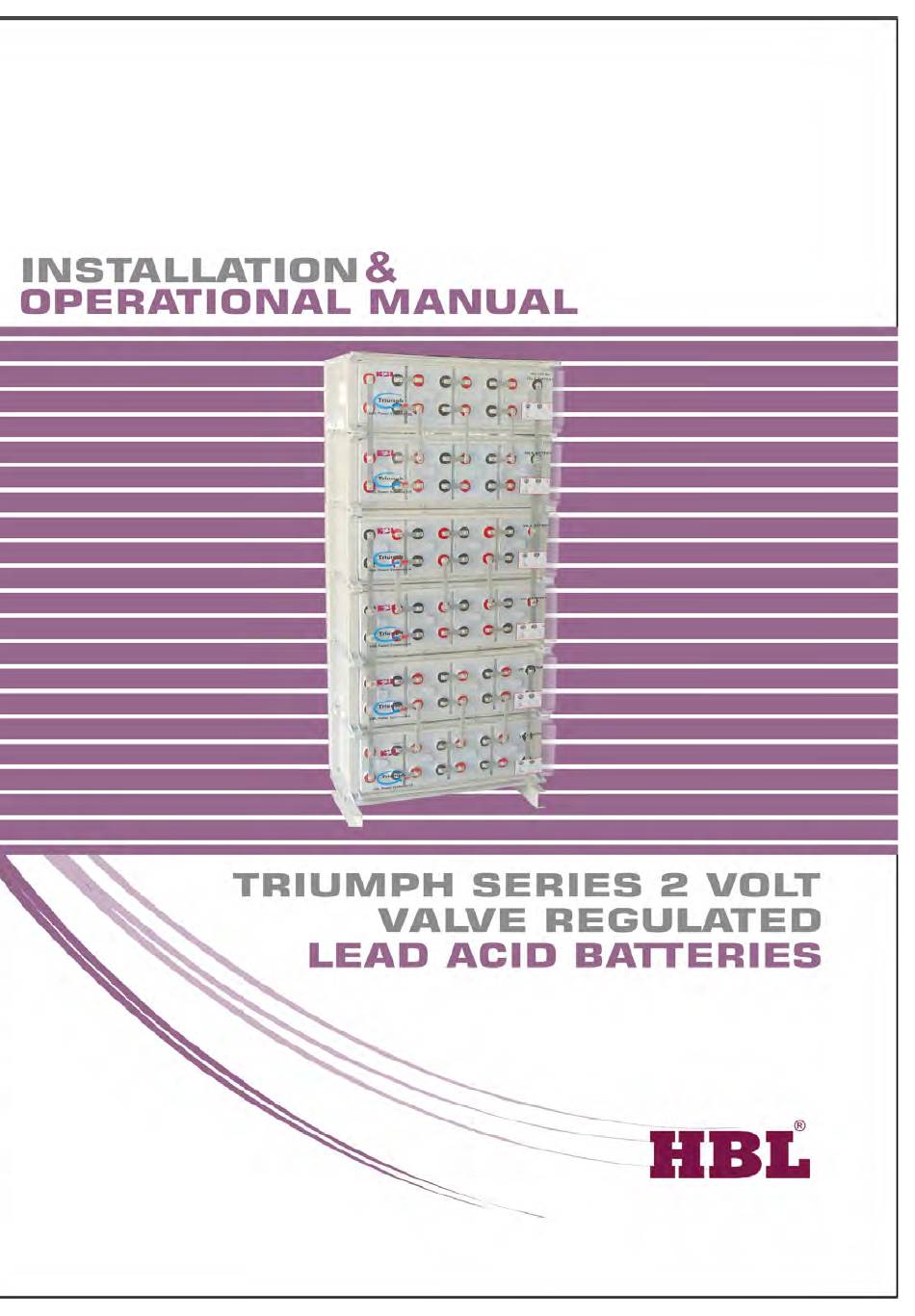

Summary of Contents for HBL TRIUMPH Series
- Page 2 SAFETY PRECAUTIONS POSITIVE...
- Page 3 Disposal Action RECYCLE Charger settings are given in page No. 10 of this manual...
- Page 5 CONTENTS Page No. Introduction 2. Receiving the Shipment Storage 4. Shifting of Batteries Unpacking 6. Battery Installation & Commissioning 7. Power Plant Compatibility 8. Charge Settings & Recharge Durations 9. Acceptance Test 10. Performance of Batteries 11. Battery Monitoring 12. Important Points to avoid Premature Failure of the Battery 13.
- Page 8 Table 3.2.1 Ambient temperatre Storage period (Max) 27° C 6 months 36° C 3 months 45° C 2 months...
- Page 10 IN G P FO R AM U SE S SI T HI S ID...
- Page 16 Table 8.3.1 Description Float application Cyclic application Float charge 2.250 V/cell 2.270 V/cell voltage @27° C Boost charge 2.300 V/cell 2.350 V/cell voltage @27° C Equalizing charge 2.350 V/cell 2.350 V/cell voltage @27° C Charge current with respect to rated C Min: 10% to Max: 20% capacity Current drawn by the battery is >...
- Page 17 Recommended interval for Application giving equalizing charge Float For every 6 months Cyclic For every 1 month...
- Page 18 Table 8.5.1 Float charge voltage / Boost charge voltage / Temperature cell (Volts) cell (Volts) (° C) ± 0.005 ± 0.005 -10 to -20 2.350 2.370 2.400 2.450 2.331 2.351 2.381 2.431 2.316 2.336 2.366 2.416 2.301 2.321 2.351 2.401 2.336 2.386 2.286...
- Page 19 (Hrs) Recharge time to attain Current: 10 % Current: 15 % Current: 20 % 43.3 41.1 38.8 40.8 39.1 37.4 38.6 37.4 36.1 35.8 35.4 34.9 33.0 32.9 32.8 Recharge time to attain (Hrs) Current: 10 % Current: 15 % Current: 20 % 24.0 21.8...
- Page 21 Discharge C/10 & Above Rate 0.43 0.45 0.47 0.50 0.54 0.58 0.62 0.68...
- Page 22 2.200 2.150 2.100 2.050 2.000 1.950 1.900 100 110 % State of Charge Graph 11.1...
- Page 23 2.150 2.150 2.150 2.150 2.150 2.100 2.100 2.100 2.100 2.100 2.050 2.050 2.050 2.050 2.050 2.000 2.000 2.000 2.000 2.000 1.950 1.950 1.950 1.950 1.950 1.900 1.900 1.900 1.900 1.900 1.850 1.850 1.850 1.850 1.850 1.800 1.800 1.800 1.800 1.800 1.750 1.750 1.750...
- Page 26 Event /Activity Sl.No. I - Fort night / Monthly checks Measurement of battery terminal voltage (both on oat & boost charge) Checking of charge settings Cleaning of battery bank Measurement of individual cell voltage Equalizing charge Re-torquing of terminal bolts Load current and typical duty cycle Checking for error in measuring instruments of Charger/Power plant Applying of petroleum jelly to cell terminals...
- Page 28 (To be generated & maintained by the user) 14.1. 1. Name of the Customer / User : _______________________ 2. Address of the Customer / User : _______________________ 3. Battery rating (Voltage & Capacity) : _______________________ 4. Date of installation of the battery : _______________________ 5.
- Page 29 1. Name of the Customer / User : _______________________ 2. Address of the Customer / User : _______________________ 3. Battery rating (Voltage & Capacity) : _______________________ 4. Date of installation of the battery : _______________________ 5. Application details : _______________________ 6.
- Page 31 DO’s & DON’Ts Do ’ s 02. Store the batteries in a cool and dry location. 03. Charge the batteries within 6 months for extending the storage period. 04. Unpack the batteries as per the unpacking instructions. 05. Install the batteries in a cool and dry location. 06.
