Horejsi Q12 X Manual

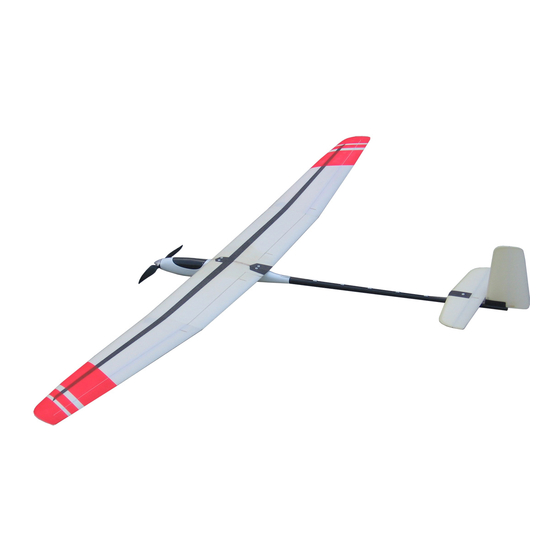

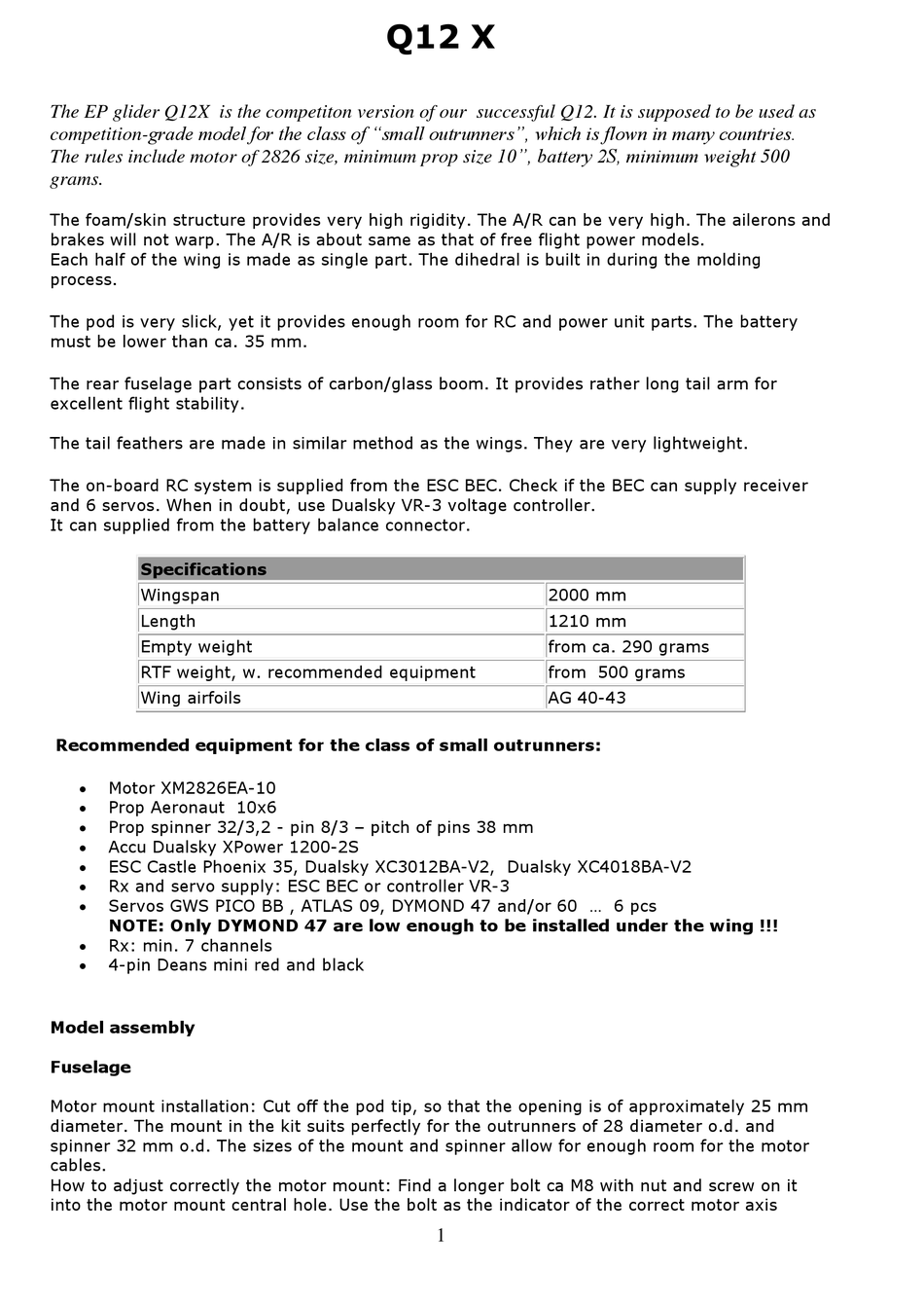

The EP glider Q12X is the competiton version of our successful Q12. It is supposed to be used as
competition-grade model for the class of "small outrunners", which is flown in many countries.
The rules include motor of 2826 size, minimum prop size 10", battery 2S, minimum weight 500
grams.
The foam/skin structure provides very high rigidity. The A/R can be very high. The ailerons and
brakes will not warp. The A/R is about same as that of free flight power models.
Each half of the wing is made as single part. The dihedral is built in during the molding
process.
The pod is very slick, yet it provides enough room for RC and power unit parts. The battery
must be lower than ca. 35 mm.
The rear fuselage part consists of carbon/glass boom. It provides rather long tail arm for
excellent flight stability.
The tail feathers are made in similar method as the wings. They are very lightweight.
The on-board RC system is supplied from the ESC BEC. Check if the BEC can supply receiver
and 6 servos. When in doubt, use Dualsky VR-3 voltage controller.
It can supplied from the battery balance connector.

Specifications

Wingspan
Length
Empty weight
RTF weight, w. recommended equipment
Wing airfoils
Recommended equipment for the class of small outrunners:
 Motor XM2826EA-10
 Prop Aeronaut 10x6
 Prop spinner 32/3,2 - pin 8/3 – pitch of pins 38 mm
 Accu Dualsky XPower 1200-2S
 ESC Castle Phoenix 35, Dualsky XC3012BA-V2, Dualsky XC4018BA-V2
 Rx and servo supply: ESC BEC or controller VR-3
 Servos GWS PICO BB , ATLAS 09, DYMOND 47 and/or 60 ... 6 pcs
NOTE: Only DYMOND 47 are low enough to be installed under the wing !!!
 Rx: min. 7 channels
 4-pin Deans mini red and black

Model assembly

Fuselage

Motor mount installation: Cut off the pod tip, so that the opening is of approximately 25 mm
diameter. The mount in the kit suits perfectly for the outrunners of 28 diameter o.d. and
spinner 32 mm o.d. The sizes of the mount and spinner allow for enough room for the motor
cables.
How to adjust correctly the motor mount: Find a longer bolt ca M8 with nut and screw on it
into the motor mount central hole. Use the bolt as the indicator of the correct motor axis
Q12 X
1
2000 mm
1210 mm
from ca. 290 grams
from 500 grams
AG 40-43
