I. Product introduce

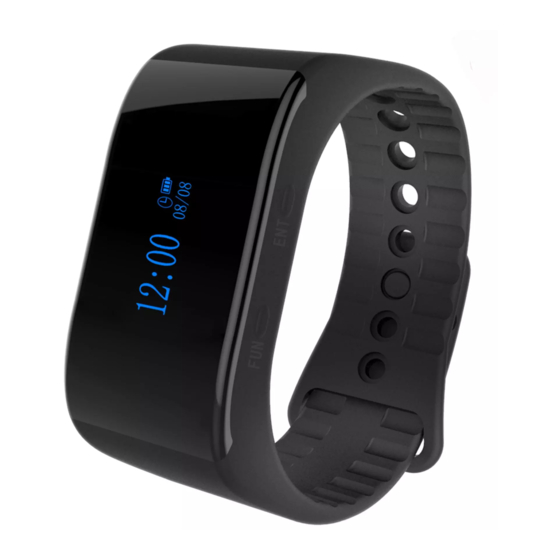

HCM6900 is the fifth generation of the mobile receiver. It is also the first waterproof
bracelet mobile receiver. The waterproof grade is IPX7. The receiver can be used with all
SINGCALL call pagers. It also can be registered and download data through the serial
port.
Main characteristics
1. It is waterproof, and the waterproof grade is IPX7.
2. It has calendar, clock and alarm clock function.
3. With fast delete function, it can delete one registered number or all registered numbers
with only one key
4. Downloading the registration through the serial port, makes the registration easier.
5. It can be charged to avoid the problem of frequent battery replacement, super standby
time (about 5 days)
6. With encryption function, avoiding the information lost by mistake operation
II. Screen display
Time display
III. Product parameter
◆ Key number: 2
◆ Key life: Million times
◆ Number of display: 10 numbers
◆ Screen: OLED monochrome screen
◆ Display type: a group of three-digit or five-digit number (with storage function)
◆ Battery: 3.7V lithium battery
◆ Battery volume: 150mAh
◆ Prompt time: 01 to 15 time length
◆ Receiving sensibility: -114dbm
◆ Frequency: 433.92Mhz
◆ Pager capacity: 500
◆ Prompt mode: Vibration
◆ Standby time: 5 days
◆ Number deleting mode: manually, automatically
◆ Calling number display: all positions can be set with English letter or digit(0-9，A-Z)
User manual of HCM6900
Alarm clock indication
12：00
FUN
Battery indication
00/00
Date display
ENT
Advertisement
Table of Contents
Summary of Contents for iHomePager HCM6900
- Page 1 User manual of HCM6900 I. Product introduce HCM6900 is the fifth generation of the mobile receiver. It is also the first waterproof bracelet mobile receiver. The waterproof grade is IPX7. The receiver can be used with all SINGCALL call pagers. It also can be registered and download data through the serial port.
- Page 2 IV. Operation instruction ※ a. Please charge the receiver before the first using, then pressing the key ENT 5 seconds to enter into standby mode after full charging (clock display time). Please turn off the receiver before charging. When the charging indicator light becomes green color, you can use it.
- Page 3 6900 the watch receiver Number register 1) Standby mode, press and hold key [FUN], until ‘F01’ shows on the screen. 2) Press and hold key [FUN] until the number ‘001’or ‘001-01’appears. There are two kinds of number format. (Refer to step 9 to change the format) 3) Press [ENT] to change the flashing number, press [FUN] to move the cursor (each position can set from 0-9 and A-Z).
- Page 4 6. Display time setting 1) Standby mode, press and hold key [FUN] 3 seconds till ‘F01’ appears. 2) Press key [ENT] repeatedly to choose ‘F03’. 3) Press and hold [FUN], till a number between 00 and 99 appears. Press [ENT] to change the flashing number, press [FUN] to change the cursor position.
- Page 5 ‘00’ means the number display mode is XXX (the default number is ‘00’) ‘01’ means the number display mode is XXX-XX Press [ENT] to change the number between ‘00’ and ‘01’. 4) Press and hold [FUN] till ‘F07’ appears. 5) Press and hold [ENT] to back to standby mode. Display mode setting is done. 10.
- Page 6 d) Press key [FUN] for one second to stop alarming. 13. Data downloading function (F11)(Please refer to the manual of SINGCALL data download software) V. Attention 1. When the product does not use for a long time, it is better to charge every two months to avoid damaging the battery.
