DE-STA-CO DirrectConnect DPE Series Manual

DPE Parallel Gripper-
Electric Gripper Series
1.8
• Electrically Actuated
24 VDC, 4-wire input: power, ground, open & closed signals.
100% duty cycle for high throughput.
• "Light Switch" Simplicity
Plug and play. No programming, tuning or adjusting required.
As easy as a pneumatic gripper to control and operate.
• Energy Efficient
Only 3W required. Can be driven directly by most PLC's
without a separate power supply. Can be battery driven
for remote applications.
• High Cycle Life
20+ million cycles with zero maintenance!
High reliability eliminates down time.
Lowest cost of ownership of any gripper,
pneumatic or electric.
• Built-in Electronics
All electronics are sealed
within the gripper. No external
control board needed.
4-pin/wire control cable
sold separately.
Patent Pending.

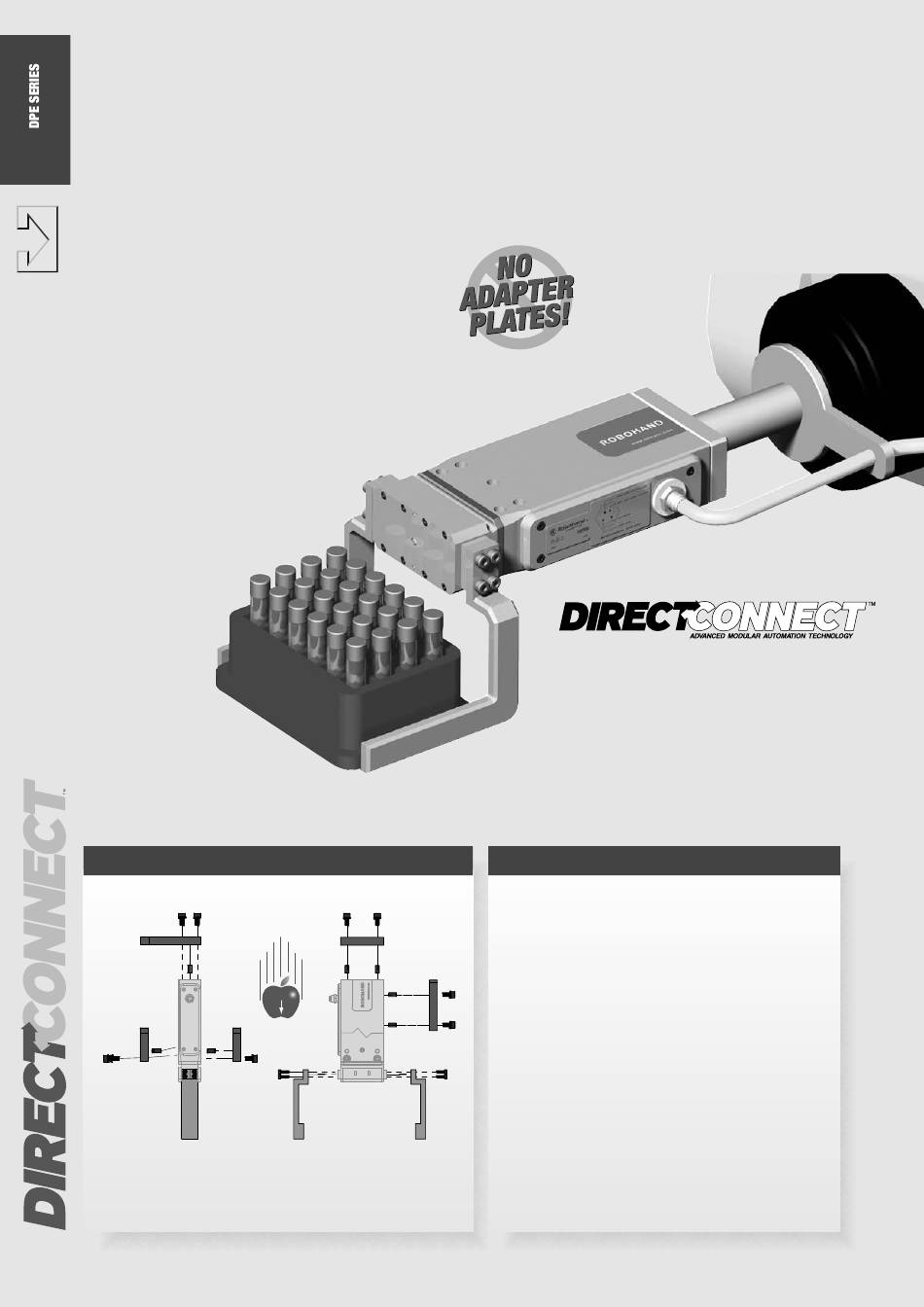

Mounting Information:
Gripper can be mounted and operated in any orientation
Body mounts with screws
and locates with slip fit
dowel pins for accuracy
G
Fingers attach to jaws
with screws and locate
with dowel pins
Please see back cover for DE-STA-CO Global Locations. www.destaco.com
• Long Stroke, Fast Actuation
25mm stroke for picking multiple sized parts.
Full actuation in 0.25 second. Pick up to 150
parts per minute (with reduced stroke).
• Failsafe operation
In case of a power loss, the jaws will not
separate but grip force will be diminished.
Finger design should include features other
than just friction to retain part for critical
applications.
Technical Specifications:
Product Specifications
Voltage
Power Max.
Operating Temperature
Protection Class
Clean Room
Clean Room with Scavenge Port*
*Contact Tech Support.
Maintenance Specifications
Field Repairable
Application Restrictions
• Timing, power and load beyond specifications
• Suitable for external gripping only
24 VDC
40 W
5° / 50° C (40° / 120°F)
IP54
100
10
Yes
