ALPHA LEISURE BAS-P-UH-R Quick Start Manual

Upward hinged practice basketball goal

Product Description:

Product Code:

Dimensions:

Colour:

Materials:

Variants / Accessories:

Reference Sites:

www.alpha-leisure.co.uk

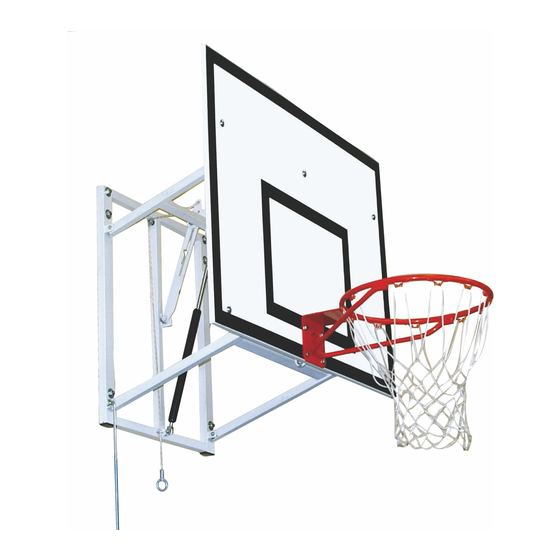

Upward Hinged Practice Basketball Goal

BAS-P-UH-R / BAS-P-UH-R-MB

Highly stable hoop with 800mm projection from the

wall. Adjustable from 2.6m to 3.05m with gas

spring which allows quick adjustment between mini

and normal heights.

The gas spring also lifts the goal into a storage

position.

Includes hoop and nylon net.

Can be supplied with a Practice or Matchplay sized

backboard (optional extra).

A highly versatile goal offering excellent value and

flexibility for a range of hall types.

Images:

1. Position 1: Storage

2. Position 2: Ring @ 2.6m

3. Position 3: Ring @ 3.05m

Backboard size 1200 x 900 mm OR 1800 x 1050 mm

Black and white

Steel, Laminated Timber

BAS-P-UH-R / BAS-P-UH-R-MB

PRODUCT DATA

Table of Contents

Do you have a question about the BAS-P-UH-R and is the answer not in the manual?

Page 1 Product Description: Upward Hinged Practice Basketball Goal Product Code: BAS-P-UH-R / BAS-P-UH-R-MB Highly stable hoop with 800mm projection from the wall. Adjustable from 2.6m to 3.05m with gas spring which allows quick adjustment between mini and normal heights. The gas spring also lifts the goal into a storage position.
Page 2 Technical Information: This information sheet is intended as a guide only. Alpha Leisure should be consulted to approve any fixing provisions prior to installation. Please note that non-standard fixings which require specialised fixings or additional drilling, etc, may incur additional charges. If in doubt, contact us.
Page 3 BAS-P-UH-R Technical Information: This information sheet is intended as a guide only. Alpha Leisure should be consulted to approve any fixing provisions prior to installation. Please note that non-standard fixings which require specialised fixings or additional drilling, etc, may incur additional charges. If in doubt, contact us.
Page 4 Product Description: Upward Hinged Practice Basketball Goal Product Code: BAS-P-UH-R Supplier Contact Details: Warranty Details: Alpha Leisure (Scotland) Ltd 1 Year Unit 5 Burnbank Business Units, Souter Head Road, Altens, Aberdeen, AB12 3LF Tel: 01224 899959 N.B. Equipment should only set up / operated by or Operating Instructions: under supervision of appropriately trained staff.
