Summary of Contents for ARTMEX V7

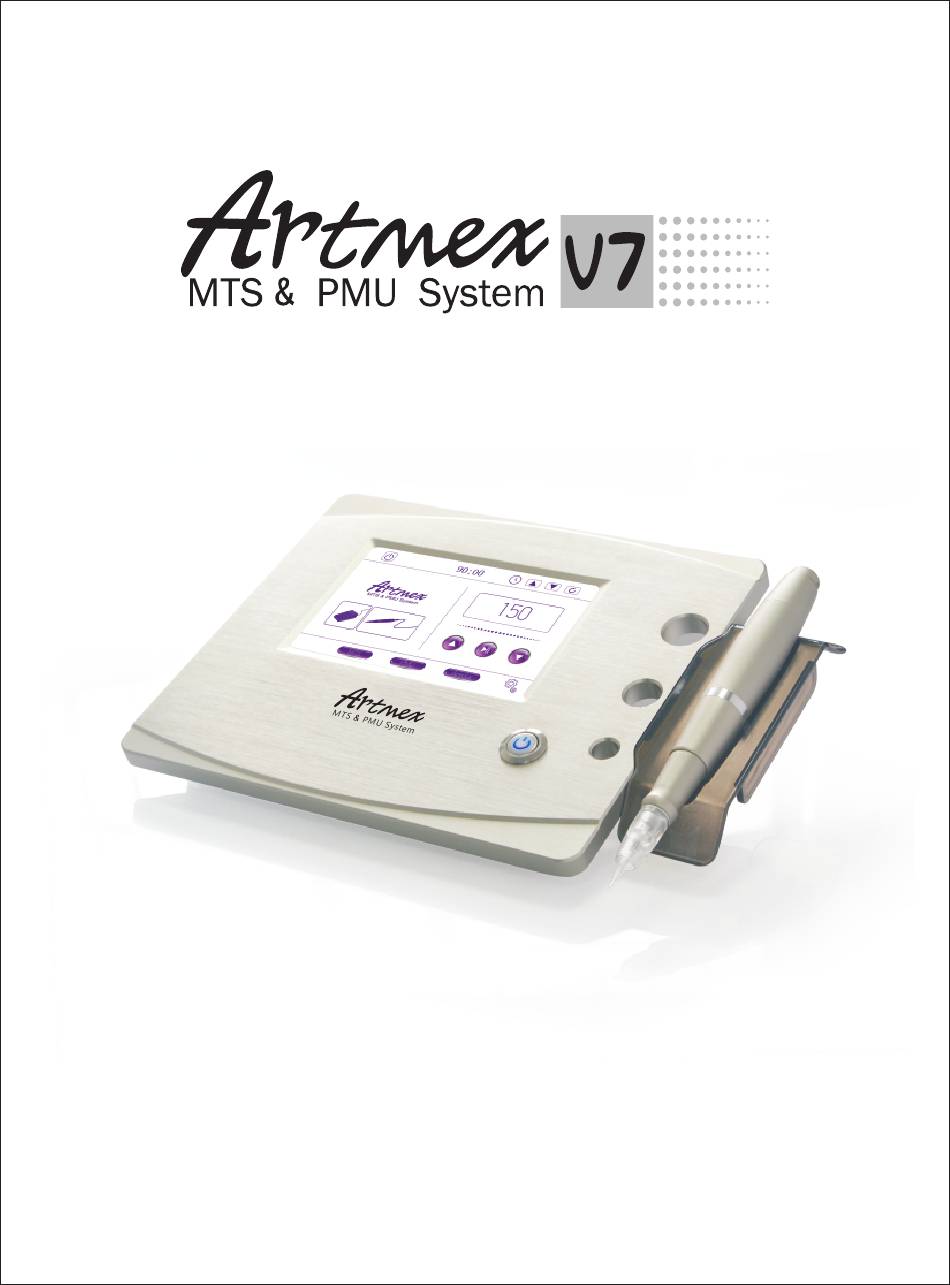

- Page 1 User Manual...
-
Page 2: Table Of Contents
Contents Product detail Basic operation Intelligent hand-piece Needles head installation Adjustment of needles depth Needles head introduction Specification Precaution... -
Page 3: Product Detail
Product detail Power switch Holder Pedal Power interface Hand piece interface Pedal interface... - Page 4 Product detail Integrated cable connecting with hand-piece Needles depth adjustment Needles head interface...
-
Page 5: Basic Operation
Introduction PMU marks the color pigments inhale into the needle by injecting them to skin by a back-and-forth motion MTS helps medical supplies be absorbed to skin by irritating Basic Operation 1.Place accessories well and connect to main body Fig 1 Fig 2 Cord of adapter connect to power interface (Operating like fig 1 and fig 2) - Page 6 Basic Operation 2.Plug DC charger to AC outlet 3.Press the power switch for 2 seconds to enter the loading interface. It will enter the interface as (Fig 7) after finish loading interface. Fig 7 4.Click the interface(Fig 7) to enter interface as(Fig 8) The hand-piece icon will flash when the host without connecting hand-piece The function key is unselectable when the...
- Page 7 Basic Operation Fig 8 Working Hours Up Shutdown Button Working Hours Down Reset Working Hours MTS Mode PMU Mode Speed Up Areola Mode Set Default Speed Start/Pause Speed Down...
- Page 8 Basic Operation 5. Mode selection(MTS&PMU&AREOLA) [1] Click “ ” to enter the interface as(Fig 9) Fig 9 [1] Click the dashed region of face to choose the treated part. [2] Click to select the speed level 21 speed levels. Higher level, higher speed [3] Click to start or pause the hand-picece Or use pedal to control the hand-piece.
- Page 9 Basic Operation 6.Click “ ” to enter the interface as(Fig 10) Fig 10 The operation of PMU is the same as MTS after choosing the treated part. -Click the solid line region of face to choose the treated part. ( include the eyebrows & eyeliner & lip ) 7.Click “...
- Page 10 Basic Operation 8.Click “ ” to enter the interface as(Fig 12) Fig 12 set default speed for each function. Select function. Click “up” or “down” to adjust the speed. Click “ok” finish adjusting the default speed. Use the stylus to touch the screen...
-
Page 11: Intelligent Hand-Piece
Automated intelligent hand piece Stationary mode The pen will stop working automatically when it stays on the placement area. Operating mode The pen will start working automatically when it leaves the placement area. -
Page 12: Needles Head Installation
How to install a cartridge 1.Take out needles cartridges from the sterilized package. 2.Pushing the needle cartridge horizontally into the round slot of pen. 3.Assemble the needles cartridges by clockwise rotation take apart the needles cartridges by counterclockwise rotation. 4.Adjustment of needle length should be done after turning on the machine. Adjustment of needles depth Adjusting the depth of needle by turning the needles depth adjustment. -
Page 13: Needles Head Introduction
Needles head introduction R3-M R3-L Nano... -
Page 14: Specification
Specification 【Model name】: ARTMEX - V7 【 】: 2650g Weight 【 】:100V~240V Adapter 【 】:290mm*273mm*105mm Size 【 】: Yes Patented product Permanent make-up & 【 】: Purpose of Use Micro-needle Therapy Maintenance 1.General maintenance -Keep it with power off. Wipe its surface up with a dry cloth. -
Page 15: Precaution
Precaution...
