Summary of Contents for Argent Cables IR-KIT-X2

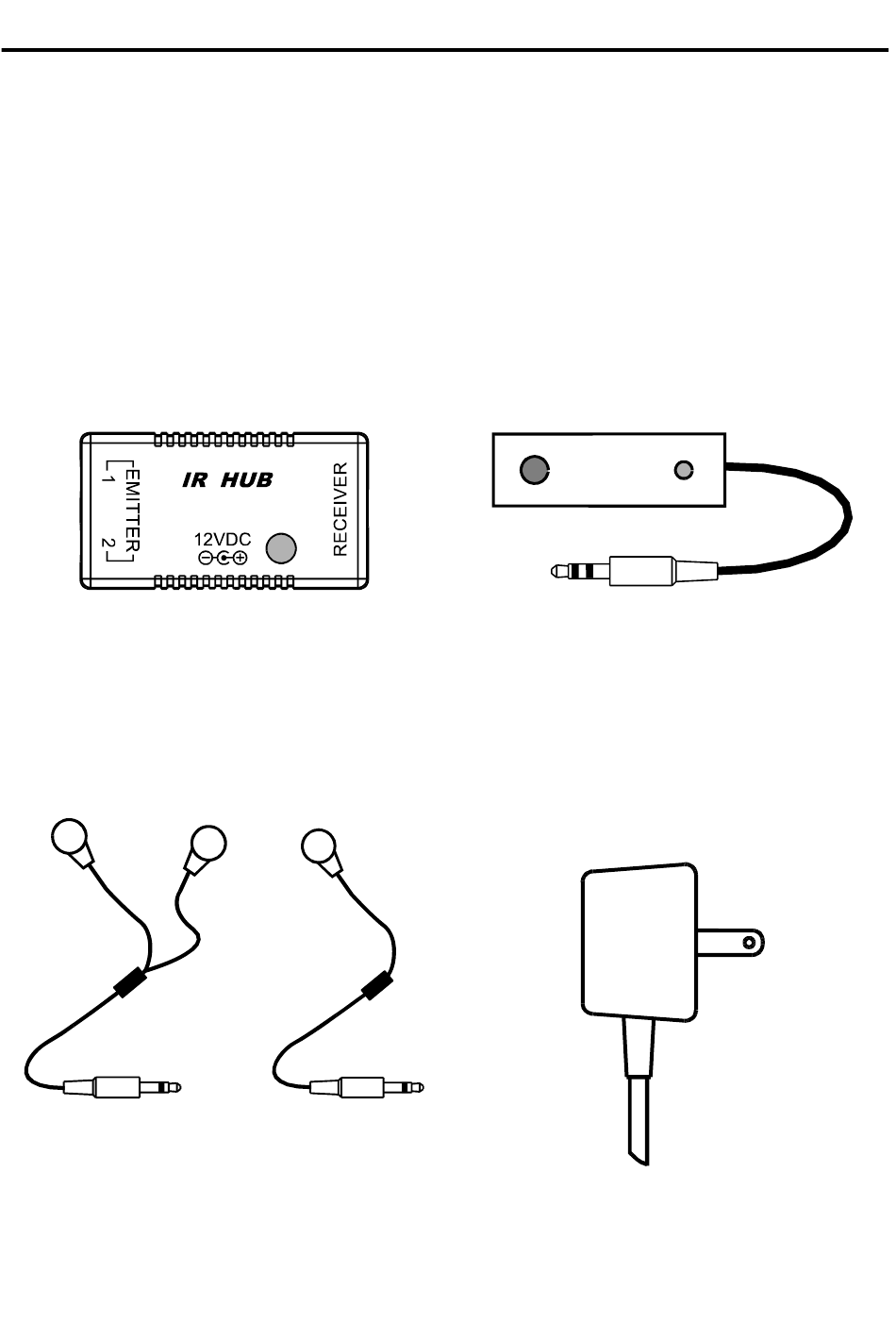

- Page 1 Economic Type IR Repeater Kit Instruction Manual The Economic Type IR Repeater connects IR Hub, IR Receiver, IR Emitter, and Power Supply together to interface the IR system to the audio/video components. Package Contents: IR Hub IR Receiver IR Emitter Power Supply (12VDC, 200mA)
- Page 2 Economic Type IR Hub FEATURES 1. Two emitter output connections. 2. Power receptacle with LED indicator. 3. Three conductor 1/8” receptacle for interfacing with many brands of freestanding IR receivers. 4. Compact size to place near audio/video equipment. INSTRUCTIONS ○...
- Page 3 Dual Band Mini Stick Infrared Receiver Features 1. CFL friendly–allows installations in areas with compact fluorescent lighting. Works in most lighting environments. 2. Blue IR confirmation LED. 3. Wide band IR receives IR from many types of remotes. 4. Self-adhesive tape for quick and easy fixing on any flat surface. 5.
- Page 4 Dual IR Emitter A. Standard installation 1. IR emitter attached directly to IR sensor window. 2. More reliable activated B. Attach emitter at inside of shelf 1. Attach emitter on above or below of the IR sensor. 2. Less reliable activated. C.
