Summary of Contents for VolantexRC Easy-Plug Series
- Page 1 Easy-plug Brushless ESC Auto-Match function Light weight & High quality Easy to play start from here...

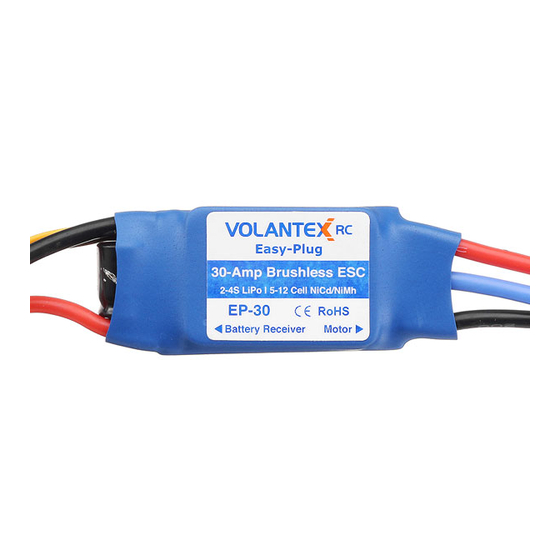

- Page 2 , low voltage cutoff , timing etc. making this truly a ‘Easy-Plug’ ESC. VolantexRC’s Easy-Plug ESC are designed for no-frill, quick and easy plug to play for controlling brushless motors. All feature the Safe-Start function, which prevents accidental propeller rotation until the ESC is deliberately “armed”.
- Page 3 properly. • Do not attempt to use Silver Series ESC with brushed motors. • Do not allow water, moisture or any foreign material onto the ESC PC board. • Use heat-shrink tubing to insulate any bare wires between the motor battery and ESC , and from the ESC to the motor to prevent a short circuit.
- Page 4 It might be hard to determine exactly how much current is being demanded through the BEC circuit . As a general guide , refer to the chart below to determine approximately how many servos can be used with the different size Easy-Plug ESCs. Remember, this is only an approximation! More extreme setups ( with very high powered digital servos, for example) will be more demanding on the BEC circuit.
- Page 5 5. Unplug the battery, restart the ESC. 6. Throttle Range is seted successfully. PS: VolantexRC’s Easy-Plug ESC have Pro auto-match functi- on, after Throttle Range setting, it will match and setup the best throttle linear according to different Transmitter . And usually this setting is needed in the first operation for a new Transmitter, after that it will be saved in the program.
- Page 6 Brake Function Setting BRAKE FUNCTION: The factory default brake setting is “off”. Skip to the “ESC OPERATION” section below if you want to keep this setting. To turn the brake “on”: 1. Move the throttle stick to full throttle, turn on the transmitter and connect the battery to the ESC.
- Page 7 ESC Operation 1. Turn the transmitter’s power on. 2. Move the throttle stick to the off or brake position (towards you). 3. Connect the battery to the ESC. The motor will beep firstly to match the Battery type, (like 3 beep sounds, means 3 cells LiPo battery, 4 beep sounds, means 4 cells LiPo etc.) After that it will have sound to indicate the brake setting (once for on, twice for off).
- Page 8 ALWAYS make sure the throttle stick is at minimum position before attempting to disconnect the battery from the speed control! ElectriFly is not responsible for incidental damage or personal injury as a result of misuse of this product. VolantexRC Easy-Plug Series Eletric Speed Control ESC Item. EP-10 EP-20...
