Summary of Contents for DAE INSTRUMENT WSC500A

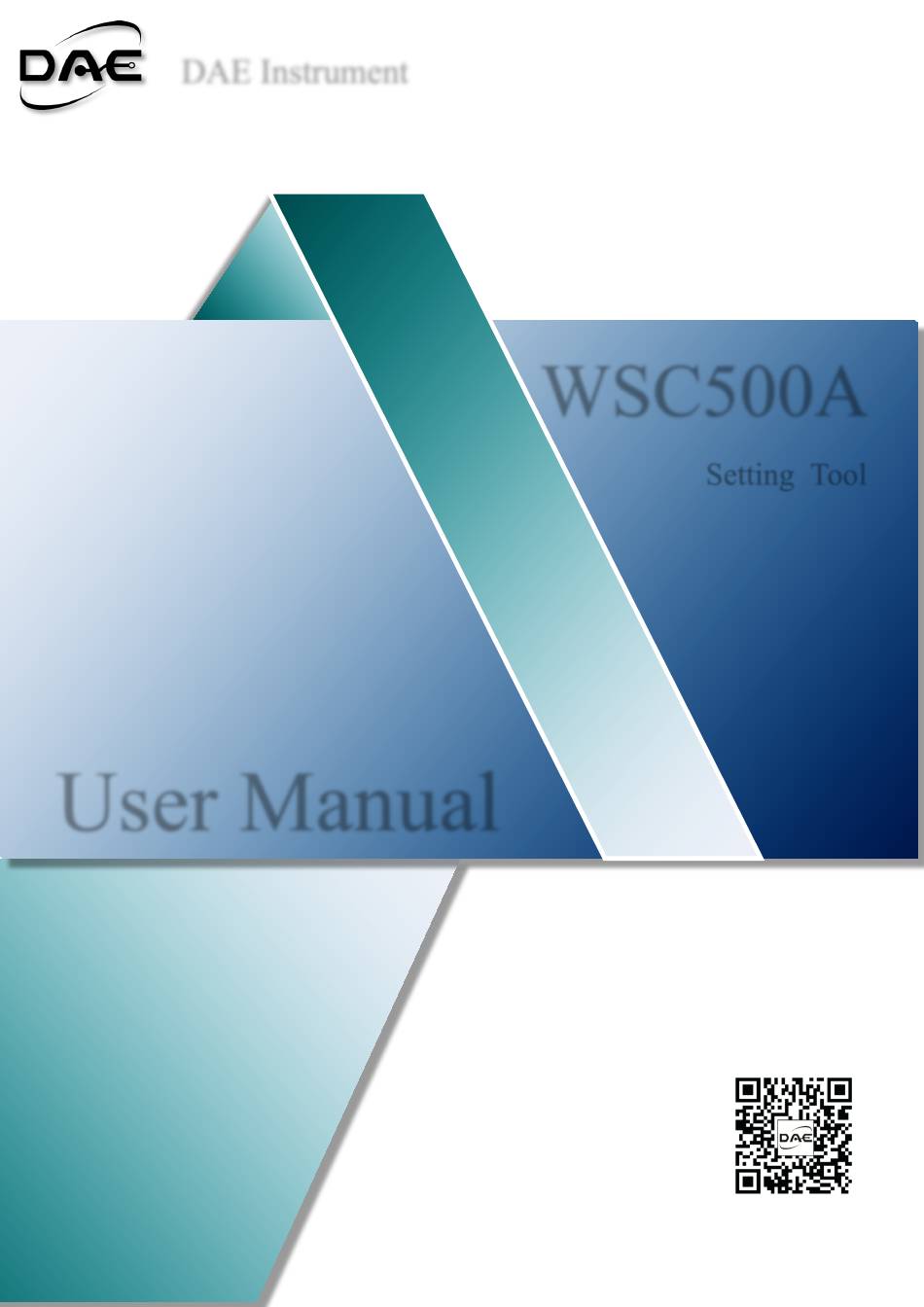

- Page 1 DAE Instrument WSC500A Setting Tool User Manual V 1.0 https://www.daeinstrument.com...
- Page 2 Index I. About WSC500A A. Hardware Specification--------------------------------------------------------------------------------02 B. Outward Appearance Overview ---------------------------------------------------------------------02 II. Setting Details A. Connect--------------------------------------------------------------------------------------------------03 B. Read Parameter------------------------------------------------------------------03 C. Air Rate--------------------------------------------------------------------------------------------------03 D. Power---------------------------------------------------------------------------------------------------- 04 E. Channel and Feq----------------------------------------------------------------------------------------04 F. Set Parameters------------------------------------------------------------------------------------------04 G. Reset Parameters-----------------------------------------------------------------------------------04 H. Disconnect-------------------------------------------------------------------------------------------05...
- Page 3 Long Distance Range Transmit Power DC Input DC 12~15V / 12W I-B. Outward Appearance Overview: Indicator light: Red: WSC500A operating mode Input Power Orange: RF Parameter setting mode DC12~15 V Micro USB USB is only used to connect computer to set device parameters.
- Page 4 II-A. Connect & II-B. Read Parameters: ・Please click “Open Connect”button first to activate the setting tool. ・Please click “Read Parameter” button to get the corresponding parameters. II-C. Air Rate: ・Air Rate: Default Value is 2.4 kbps.
- Page 5 II-D. Power: ・ Power: Default value is 30dBm. II-E. Channel: ・Channel: The default value is 65. (Range: 52~77) The value of Feq will change with the channel. II-F. Set Parameters & II-G. Reset Parameters: ・Please click “Set Parameters” button to save all the changes. ・Users could rectify all the settings by clicking “Reset Parameters”...
- Page 6 II-H. Disconnect ・Please remember to click “Close Connect” button to finish all the settings. ❑Friendly Notice: Please make sure that the indicator light turn into red after clicking “Close Connect”.
- Page 7 2020 DAE Instrument Corporation. All Rights Reserved.
