The
requires a barrel-style power brick (15V – 20V DC) and supplies power to modules
via flying bus cables, direction connection, and/or bus boards using the single
standard 16-pin Eurorack header on the back. For custom power systems, the
Row Power 25
MTA156 connectors to connect to distribution bus boards.
Multiple
daisy-chaining with an inexpensive barrel cable. The
daisy-chained to 4ms Company's Pod enclosures.
Maximum and recommended power output:
Maximum power output can be expected under normal operating conditions.
Recommended power output is guaranteed under extreme temperature and limited airflow
conditions.
Power Brick:
Features:
Row Power 25

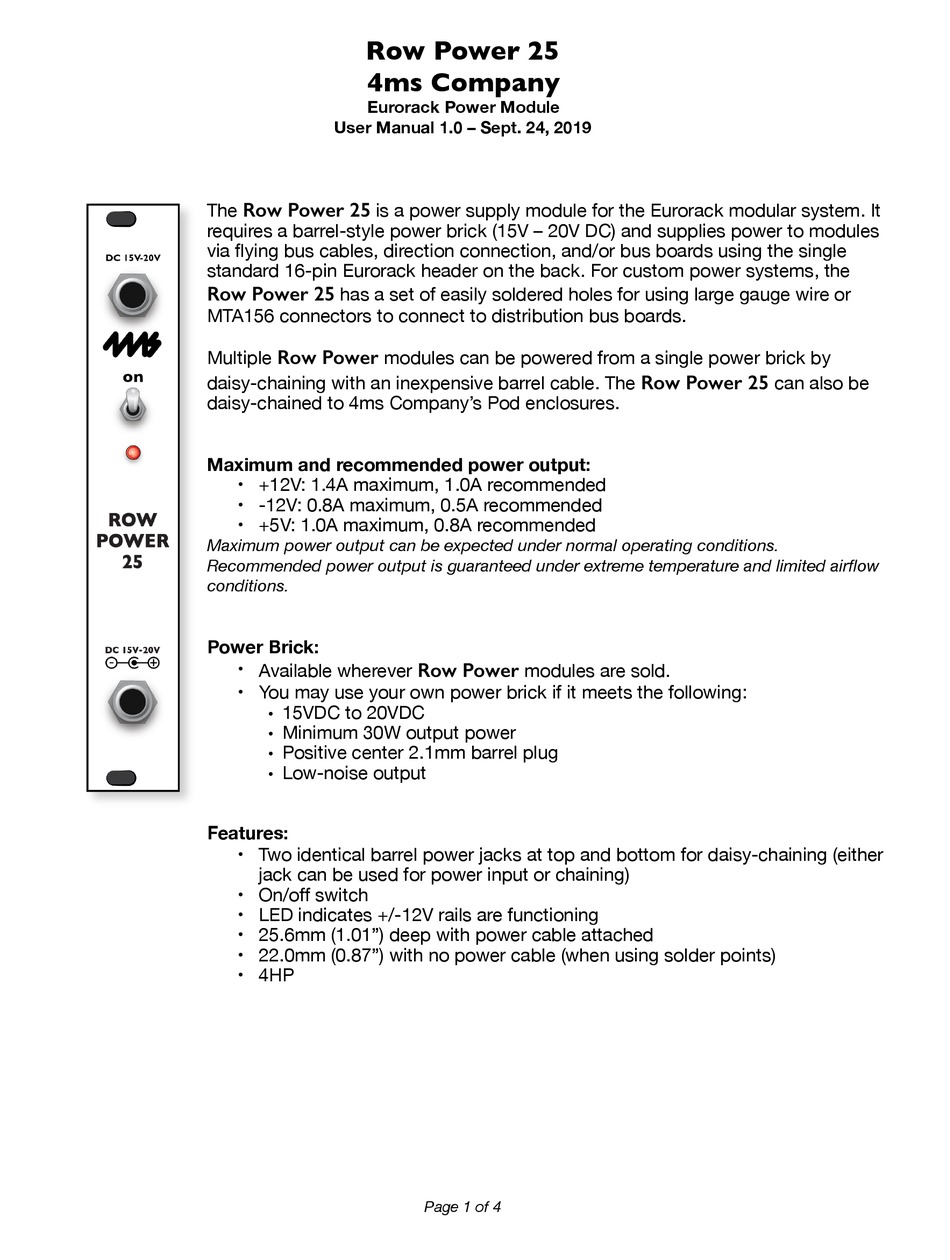

4ms Company
Eurorack Power Module
User Manual 1.0 – Sept. 24, 2019
Row Power 25
is a power supply module for the Eurorack modular system. It
has a set of easily soldered holes for using large gauge wire or
Row Power
modules can be powered from a single power brick by
• +12V: 1.4A maximum, 1.0A recommended
• -12V: 0.8A maximum, 0.5A recommended
• +5V: 1.0A maximum, 0.8A recommended
• Available wherever
• You may use your own power brick if it meets the following:
• 15VDC to 20VDC
• Minimum 30W output power
• Positive center 2.1mm barrel plug
• Low-noise output
• Two identical barrel power jacks at top and bottom for daisy-chaining (either
jack can be used for power input or chaining)
• On/off switch
• LED indicates +/-12V rails are functioning
• 25.6mm (1.01") deep with power cable attached
• 22.0mm (0.87") with no power cable (when using solder points)
• 4HP
Row Power
modules are sold.
Page
1
of
4
Row Power 25
can also be
