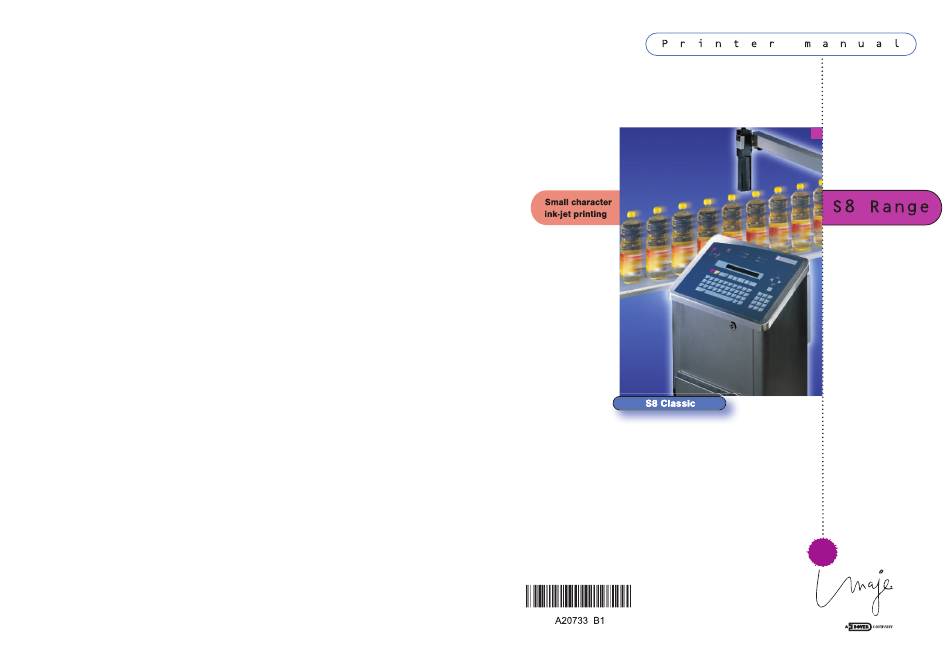

Imaje S8 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Imaje S8 Series

Summary of Contents for Imaje S8 Series

  • Page 2 p˜ˆ™ˆ”š„šŒ•” i”ŒšŒ„’@–˜•Š˜„““Œ”Š mˆ™™„Šˆ@–˜•Š˜„““Œ”Š sˆ˜œŒ†Œ”Š t˜•›…’ˆ™‹••šŒ”Š a‡Ž›™š“ˆ”š „”‡@˜ˆ–’„†ˆ“ˆ”š@–˜•†ˆ‡›˜ˆ™ c•”™›“„…’ˆ™ tˆ†‹”Œ†„’@™–ˆ†Œ‰Œ†„šŒ•”™ i”–›š@O@o›š–›š@c•””ˆ†šŒ•”™ A20733 B1...

  • Page 3: Table Of Contents

    PRESENTATION Contents Presentation Control panel Operator interface Print head Ink circuit: S8 Classic (without condenser) Ink circuit: S8 Classic (with condenser option) Ink circuit: S8 Egg Classic Ink jet printing Matrix printing Continuous deviated ink jet printing Startup and shutdown Starting the printer Stopping the printer General summary table...

  • Page 4: Presentation

    Presentation Presentation Control panel Figure 1: Control panel Conduit Print head Electronic compartment Hydraulic compartment (tanks for consumables) Operator interface (keyboard - screen) Industrial interface compartment (inputs - outputs) Figure 1 A20733 B0...

  • Page 5: Operator Interface

    Presentation Operator interface Display 40 character liquid crystal display to: - Display messages. ON/OFF? - Dialog with the operator. Keys On/Off. Autodating. Counter. A20733 B0...
  • Page 6 Presentation - Press directly to display and clear faults. - After pressing , access to maintenance functions. Edit or modify message. Access character style (font, bolderization, tabulation, etc.). Access to message parameters. Enter alphabetic characters in upper or lower case. The start and end of message delimiters on the display are shown as follows: when entering upper case.
  • Page 7 Presentation Indicators ORANGE:-Lit: as soon as mains voltage present. RED: - Lit: indicates a jet fault or alarm. - Unlit: no fault or printer stopped. POWER FAULT READY ALARM RED: - Lit steadily: indicates a jet alarm (printing impossible). - Flashing: indicates a print speed fault. - Unlit: no alarm or jet stopped.

  • Page 8: Print Head

    Presentation Print head Figure 1: Overall view of print head with cover open Gutter open/close tap Recuperation gutter Deflection plates Detection electrode Charge electrode Cannon Nozzle rinse spray fig 20 Figure 1 A20733 B0...

  • Page 9: Ink Circuit: S8 Classic (Without Condenser)

    Presentation Ink circuit: S8 Classic (without condenser) A20733 B0...

  • Page 10: Ink Circuit: S8 Classic (With Condenser Option)

    Presentation Ink circuit: S8 Classic (with condenser option) A20733 B0...

  • Page 11: Ink Circuit: S8 Egg Classic

    Presentation Ink circuit: S8 Egg Classic A20733 B0...

  • Page 12: Ink Jet Printing

    Ink jet printing Ink jet printing enables contact-free marking to identify, date or customize a product. Imaje printers use the "deflected continuous jet" principle with dot-matrix type characters. Matrix printing Each symbol (letter, digit, punctuation mark, etc.) is contained within a rectangular area known as a "matrix", which is divided into columns known as "trames"...

  • Page 13: Continuous Deviated Ink Jet Printing

    Presentation Continuous deviated ink jet printing The printer head is supplied with pressurized ink. The ink arrives in a cannon (2) with a hole ("nozzle") (3) through which the ink is ejected to form a jet. The ink jet is modulated by a piezo-electric resonator (1) to form calibrated and equidistant droplets.

  • Page 14: Startup And Shutdown

    Presentation Startup and shutdown Starting the printer Press The jet starts automatically after an ink conditioning phase. NOTE The jet starts automatically by default, but may be programmed to start manually ( Stopping the printer Press Stop? Y-N Wait 2 mn A20733 B0...

  • Page 15: General Summary Table

    A20733 B0...
  • Page 16 PERSONAL NOTES A20733 B0...
  • Page 17 INITIAL PROGRAMMING Contents SETTING THE TIME SETTING THE DATE LIBRARY SIZE KEYBOARD CODE SECURITY CODE CHOICE OF DIALOG LANGUAGE CPU OPTIONS PRINT BOARD OPTIONS HEAD START-UP COUNTER DISPLAY, RESET AND LEADING ZEROS A20733 B0...
  • Page 18 A20733 B0...

  • Page 19: Setting The Time

    Autodating SETTING THE TIME The printer has an internal clock and autodating functions which can be inserted in a message. To insert dates in a message, see the "Message programming" chapter. RUN/STOP clock (option): • In RUN position, the time displayed and printed changes in real time. •...

  • Page 20: Setting The Date

    Autodating Autodating SETTING THE DATE Access Function?... Display Date: (DMY) : 10.02.01 Modify using + enter new values, to move the cursor. to change the format (DMY or MDY) if the cursor is under the first digit of the day. to print the month as two digits or three letters if the cursor is under the first digit of the month.

  • Page 21: Library Size

    Message library LIBRARY SIZE The size of the printer’s library is variable and can be programmed by the operator. The number of characters available per message depends on the number of messages selected. These two values are displayed together. Access Function?...

  • Page 22: Keyboard Code

    Codes KEYBOARD CODE This code locks the keyboard. NOTE The code is deleted each time the printer is started using the ON/OFF KEY. Access Function?... Display Code: xxx Modify using - To enter a code (if no code present): (yes) + enter new code - To change the code: + enter the old code + + enter the new code...

  • Page 23: Security Code

    Codes SECURITY CODE This code locks the counter, autodating and message editing functions (changes to the content). Access Function?... f l d Display Security code: xxx Modify using - To enter a security code (if no code present): (yes) + enter new code - To change the code: + enter the old code + + enter the new code...

  • Page 24: Choice Of Dialog Language

    Language CHOICE OF DIALOG LANGUAGE This function is used to choose the language in which all operator interface messages are displayed. Access Function?... f v d (twice) Display English Modify using The choice is validated as soon as you leave this mode. Choices Français French...

  • Page 25: Cpu Options

    CPU and print boards CPU OPTIONS This function is used to display the CPU board options present in the printer. It also enables Imaje technicians to identify faults on the CPU board. Access Function?... (3 times) Display Number of Machine software...
  • Page 26 CPU and print boards Choices The CPU options are indicated by two sets of 8 digits (bits). Each bit corresponds to one option and can be either "0" or "1". The option is present in the printer if the corresponding bit is set to "1". 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 Ink type...

  • Page 27: Print Board Options

    CPU and print boards PRINT BOARD OPTIONS This function is used to display the printer board options present in the printer. It also enables Imaje technicians to identify faults on the printer board. Access Function?... f v d (4 times)

  • Page 28: Head Start-Up

    Automatic jet start-up HEAD START-UP This function selects whether the jet is started up automatically or manually after starting the printer. Access Function?... Display Head start-up: Man. Modify using to enter the function, to modify. Choices Automatic or manual. A20733 B0...

  • Page 29: Counter Display, Reset And Leading Zeros

    Counter COUNTER DISPLAY, RESET AND LEADING ZEROS Role This function is used to: - Display the counter value for the message currently being printed (one counter per message). - Reset it to the initial value. - Select whether or not leading zeros are printed. Access Function?...
  • Page 30 NOTES A20733 B0...
  • Page 31 MESSAGE PROGRAMMING Contents COMPOSING A MESSAGE CONTAINING ONE LINE OF CHARACTERS COMPOSING A MESSAGE CONTAINING TWO LINES OF CHARACTERS DELETING A CHARACTER DELETING A LINE RETURN TO SINGLE LINE MODE CREATING MESSAGES IN THE LIBRARY LIBRARY: Copying messages and/or print parameters MESSAGE: Selection for printing PRINTING DELAY PRINTING SPEED OR TACHOMETRIC DIVISION...
  • Page 32 A20733 B0...

  • Page 33: Composing A Message Containing One Line Of Characters

    Head number Jet number Message start and end delimiters Editing upper case 01 Head 1.1 * Editing lower case Message selected for printing To access the content. I M A Enter message text..IMAJE twice Function?... A20733 B0...

  • Page 34: Composing A Message Containing Two Lines Of Characters

    CONTAINING TWO LINES OF CHARACTERS Press Display Comment Start of message 1 displayed. 01 Head 1.1 * IMAJE To access the content. IMAJE Enter double line mode and display line 2. Enter characters on the second line..

  • Page 35: Deleting A Character

    Message programming DELETING A CHARACTER Press Display Comment CLAASSIC Move the cursor and position it underneath the character to be deleted. CLAASSIC Delete the character. CLASSIC A20733 B0...

  • Page 36: Deleting A Line

    Message programming DELETING A LINE Press Display Comment CLASSIC Move the cursor and position it under the start of line index. CLASSIC Delete the contents of the line. A20733 B0...

  • Page 37: Return To Single Line Mode

    Message programming RETURN TO SINGLE LINE MODE Press Display Comment IMAJE Move the cursor and position it under the line number. IMAJE The line number disappears. IMAJE IMPORTANT All these modifications are only effective after exiting the message editing function...

  • Page 38: Creating Messages In The Library

    Message programming CREATING MESSAGES IN THE LIBRARY Press Display Comment 01 Head 1.1 * Select the desired message (e.g. 02). 02 Head 1.1 To access the contents of message 2. B A T ... Type in characters. 02 Head 1.1 Batch: 26 Message 2 is saved.

  • Page 39: Library: Copying Messages And/Or Print Parameters

    Message programming LIBRARY: Copying messages and/or print parameters Role This function is used to: - Copy a source message to a target message (text and print parameters). - Copy parameters from a source message to all messages (print parameters, counter parameters, postdate). To copy only the print parameters from one message to all other messages, "**"...

  • Page 40: Message: Selection For Printing

    Message programming MESSAGE: Selection for printing Role This function is used to select the message to be printed. Access Function?... Display the message then number by pressing Display 01Head 1.1* BEST BEFORE = Message number Head 1.1 = Head 1 jet 1 = indicates that the message is selected for printing BEST BEFORE = shows the start of message 01.

  • Page 41: Printing Delay

    Message parameters PRINTING DELAY Role This function is used to create a margin before the message is printed. NOTE This margin, expressed in mm, is only equal to the actual margin if the displayed print speed is equal to the actual speed. Access Function?...

  • Page 42: Printing Speed Or Tachometric Division

    Message parameters PRINTING SPEED OR TACHOMETRIC DIVISION Role The printing speed can be adapted to the speed at which the object moves, which may be fixed (expressed in mm/s) or variable. If it is variable, the print speed is controlled by a tachometric generator, in which case the user must specify a value for the tachy division.

  • Page 43: Message Sense

    Message parameters MESSAGE SENSE Role This function can be used to invert the direction in which the message is printed (from the beginning to the end or from the end to the beginning). NOTE The "message sense", "vertical sense" and "horizontal direction"...

  • Page 44: Vertical & Horizontal Sense Of Characters

    Message parameters VERTICAL & HORIZONTAL SENSE CHARACTERS Role The vertical sense setting reverses all the characters in a message in a vertical plane, e.g. becomes The horizontal sense setting reverses all the characters in a message in a horizontal plane, e.g. becomes NOTE "message sense", "vertical sense"...
  • Page 45 Message parameters Display Vertical sense: ↑ Horizontal sense: → Modify using Vertical sense: ↓ Horizontal sense: ← A20733 B0...

  • Page 46: Printing: Trigger Mode

    Message parameters PRINTING: Trigger mode Role This function is used to define the printing trigger mode. SPACE - In "Manual Object" mode, printing is triggered by pressing the bar. - In "Manual Auto" mode, continuous printing is triggered by pressing the SPACE .

  • Page 47: Bolderization

    Variables BOLDERIZATION Role This function is used to increase the thickness of characters by assigning them an expansion or "bolderization" coefficient from 1 to 9. These coefficients can be assigned to one or more characters, and several coefficients can be used in a single message. NOTE Changing bolderization...

  • Page 48: Matrix: Changing

    06 = number of trames per character 053 = character generator number 001 to 200 = generator number for fonts in the Imaje catalog 201 to 210 = generator number for non-catalog fonts 241 to 255 = generator number reserved for logos, never displayed in this function.

  • Page 49: Bar Codes: Composing And Inserting In The Message

    Variables BAR CODES: Composing and inserting in the message Role This function is used to insert a bar code sequence in a message. The height of the bar code trames is equal to the height of the last font selected. The bar code type and parameters are defined in the "Bar code: type, etc."...

  • Page 50: Bar Codes: Inserting Autodating

    Variables BAR CODES: Inserting autodating Role This function is used to insert autodating information in the bar code text. Access Function?... t l C j Display the message then number by pressing Display Variables: (H,N,S,D,M,Y,W,X,Z,P,J,E) Modify using Enter the character representing the autodating element to be inserted (see M31 for the correspondence).

  • Page 51: Bar Codes: Inserting A Counter

    Variables BAR CODES: Inserting a counter Role This function can be used to insert a counter in the bar code text. Access Function?... t l C c Display the message then number by pressing Display Choices Counter with parameters defined in the function.

  • Page 52: Bar Codes: Type

    Variables BAR CODES: Type Role This function is used to define the parameters of the bar code. Access Function?... t l C v Display the message then number by pressing Display Bar code type: 2/5 int Modify using Choices 2/5 interleaved code, Code 39. A20733 B0...

  • Page 53: Bar Codes: Control Word

    Variables BAR CODES: Control word Role The control word is used to ensure that a bar code has been read correctly. It corresponds to a digit located at the end of the code, identifying the parity of the preceding coded text. It may optionally be inserted in the text. Access Bar code type: Display...

  • Page 54: Bar Codes: Bar / Space Ratio

    Variables BAR CODES: Bar / space ratio Role This function is used to adjust the readability of the code. Access Control word: Display Ratio: nb: 1 wb: 3 ns: 1 ws: 3 Narrow bars (nb), wide bars (wb), narrow spaces (ns) and wide spaces (ws). Modify using Numeric key to modify the digit at the cursor position.

  • Page 55: Logo: Inserting

    Variables LOGO: Inserting Role This function can be used to insert from 1 to 15 predefined custom logos into the message. For further details, contact your usual Imaje correspondent. Access Function?... t l L Display the message then number by pressing...

  • Page 56: Tabulation

    This function is used to insert empty frames between characters in a message. Access Function?... Display the message then number by pressing Display Tabulation: 000 Modify using Numeric keys. Choices 0 to 255 trames. Display A tabulation in the message is represented by: → Imaje Tabulation A20733 B0...

  • Page 57: Counter Batch

    Counter COUNTER BATCH Role This function is used to determine the number of messages in a batch. The counter changes when the batch value is reached. Access Function?... Display the message number by pressing Display Counter batch: 000001 Modify using + Numeric keys.

  • Page 58: Step Counter

    Counter STEP COUNTER Role This function is used to determine the value by which the counter is incremented. Access Function?... Display the message then number by pressing Display Step counter: 01 Modify using + Numeric keys. Choices 01 to 99. A20733 B0...

  • Page 59: Start Value

    Counter START VALUE Role This function is used to determine the initial value of the counter. If the start value is greater than the final value, the counter counts backwards. Access Function?... Display the message then twice number by pressing Display Start value: 000000001 Modify using...

  • Page 60: Final Value

    Counter FINAL VALUE Role This function is used to determine the final value of the counter. If the start value is greater than the final value, the counter counts backwards. Access Function?... Display the message then 3 times number by pressing Display Final value: 000250000 Modify using...

  • Page 61: Inserting Into Message

    Counter INSERTING INTO MESSAGE Role This function is used to insert the contents of a counter into a message. Access Function?... Display the message then number by pressing Display ccccccccc Modify using Insert the counter into the message by pressing Choices The counter may be inserted into the message several times in character mode or bar code mode.

  • Page 62: Postdate

    Autodating POSTDATE Role This function is used to program the number of days difference between the current date and the desired postdate. NOTE If the printer is fitted with the programmable offset Julian calendar option, postdates are not shown. Access Function?...

  • Page 63: Time Code

    Autodating TIME CODE Role This function is used to define the parameters of the time code. Access Function?... Display the message then number by pressing Display S: 08: 00 I: 00: 01 : 08:00 = time code start time : 00:01 = interval between each code change 01 : type of code to print Modify using to move the cursor to "S", "I"...

  • Page 64: Time, Date, Postdate, Time Code: Inserting Into The Message

    Autodating TIME, DATE, POSTDATE, TIME CODE: Inserting into the message Role This function is used to insert autodating elements (time, date, postdate, time code) into the message. The autodating elements are displayed as lower case letters as shown below. When they are printed the actual values are inserted. A single element can be inserted several times.
  • Page 65 Autodating Choices = hour, represented by "hh" in the message. = minutes, represented by "nn" in the message. = seconds, represented by "ss" in the message. = day of the month, "dd" in the message. = month, "mm" in the message for two-digit months and "mom" for three-letter months (the format is chosen when setting autodating parameters during initial programming).

  • Page 66: Din Characters (Option)

    Autodating DIN CHARACTERS (Option) Role The part of the message or the message created with this option will be printed as follows: NOTE If you also have a "chimney" font (Font menu), the print result is as follows: Access Function ?... Display the message then number by pressing...
  • Page 67 SERVICING Contents Introduction Servicing and maintenance function Preventive maintenance procedures General preventive maintenance table Shutdown and start-up procedures A20733 B0...
  • Page 68 66 - A20733 B0...

  • Page 69: Introduction

    Servicing Introduction The aim of this section is to provide all the information needed to perform servicing correctly. All the procedures given in this chapter are standard operations which must be performed correctly for optimum printer operation. Servicing and maintenance function The servicing and maintenance function allows the operator to retrieve information about printer operation and control certain specific elements of the head or ink circuit.
  • Page 70 Servicing STATUS JET Role This function gives access to the various instructions for jet servicing and maintenance operations. Access Function?... Display Status jet Modify using Choices Stop/Start Nozzle unblocking Intro. solution Stability Refresh IMPORTANT All these instructions are independent of each other. However in some cases it is recommended that they be performed in order: [Nozzle unblocking], [Intro.
  • Page 71 Servicing JET: Stop/Start Role This instruction is a sub-function of the [Status jet] function It is used to stop or start the jet. The jet is operational after a stabilization phase lasting approx. 50 seconds (green jet indicator lit steadily). Access Status jet Display...
  • Page 72 Servicing NOZZLE UNBLOCKING Role This instruction is a sub-function of the [Status jet] function. It is used when the jet is missing or deviated out of the recuperation gutter. Access Status jet Display Nozzle unblocking: N Modify using Choices N = no or Y = yes A20733 B0...
  • Page 73 Servicing Procedure - Validate the [Nozzle unblocking] function. - Close the recuperation gutter (Figure 1). - Spray cleaning solution onto the nozzle using the cleaning bottle (Figure 2). - Stop the [Nozzle unblocking] function after approx. 30 seconds by pressing Closed Open Figure 1...
  • Page 74 Servicing INTRODUCING CLEANING SOLUTION Role This instruction is a sub-function of the [Status jet] function. It is used to clean the nozzle and the inside of the cannon, by provoking a pressure drop inside the cannon causing cleaning solution to be sucked in through the ejection nozzle.
  • Page 75 Servicing Procedure - Close the recuperation gutter (Figure 1). - Validate the [Intro. solution] function. - Pour cleaning solution onto the cannon for 30 seconds (Figure 2). - Stop the [Intro. solution] function by pressing - Open the recuperation gutter (Figure 1). - Dry the head (Figure 3).
  • Page 76 Servicing STABILITY Role This instruction is a sub-function of the [Status jet] function. It is used to stabilize the jet in the gutter. This is checked visually when the function is selected using the eyeglass supplied in the servicing kit. Access Status jet (3 times)
  • Page 77 Servicing Procedure - Validate the [Stability] function. - Check the position of the jet in the gutter using the eyeglass (Figure 1). If the jet is stable in the gutter: - Stop the [Stability] function by pressing - Clean the head. If the jet is unstable (gutter particularly dirty or jet permanently deviated): - Repeat the [Nozzle unblocking] and/or [Intro.
  • Page 78 Servicing Ink refresh Role This instruction is a sub-function of the [Status jet] function. It homogenizes the ink by circulating it in all pipes in the circuit. It is used after a prolonged stop (several days) or after replacing the ink). Access Status jet (4 times)
  • Page 79 Servicing INHIBITING COVER AND VACUUM FAULTS Role For safety reasons, the printer continuously monitors the presence of the head cover and recuperation of the jet in the gutter (if the jet is operating). Opening the head cover immediately cuts off the high voltage applied to the deflection plates.
  • Page 80 Servicing JET: Speed Role This function is used to display the jet speed. Access Function?... (twice) Display If the jet is operating: Jet 1: Dc 20.0 m/s If the jet is stopped: Jet 1: Dc 00.0 m/s Modify using Impossible. A20733 B0...
  • Page 81 Servicing JET: Drop control IMPORTANT Selecting this function stops the current printing process. The green jet control indicator flashes throughout the display phase. Role This function displays the quality of the drop charge. It is one of the main characteristics of the ink jet printing principle. The drop charge is determined by the jet break-off point and the ink quality.
  • Page 82 Servicing INK VISCOSITY CHECK Role This function displays the viscosity monitoring data. The printer continually monitors and controls the ink viscosity to ensure that the break-off point is correct. Access Function?... (3 times) Display Visco: PS:OC Lhl:++ Ft:31s → 29s 07add Number of additive additions since start-up.
  • Page 83 Servicing Modify using to change from one electrovalve to another Stop function using A20733 B0...
  • Page 84 Servicing PRINTER OPERATING PARAMETERS Role This function displays the printer’s five main operating parameters. Access Function?... (4 times) Display Vm:1500 P:2.72b µ:4.9 Vj:20.0m/s T:26°C - 20°C Vm Pressure motor speed expressed in revolutions per minute (rpm). Operating pressure expressed in bar (b). µ...
  • Page 85 After connecting the draining tool, this function can be used to monitor the operation of the automatic draining cycle IMAJE SAV This function displays a recorded history of the printer’s operating parameters. Records are at five-minute intervals, and several hours of operation are stored.

  • Page 86: Preventive Maintenance Procedures

    Servicing Preventive maintenance procedures The purpose of this section is to specify the procedures to be followed regularly. It also explains the printer shutdown procedures. These procedures depend on the expected duration of the shutdown, and the restarting procedures are adapted accordingly. General preventive maintenance table FREQUENCY ACTION...

  • Page 87: Shutdown And Start-Up Procedures

    Servicing Shutdown and start-up procedures 3.2.1 General table DURATION SHUTDOWN RESTART < 1 week ON/OFF ON/OFF Rinse the head and conduit assembly. ON/OFF + refresh (5 mins). See page 86. See page 87. 1 week 2 weeks ON/OFF daily. ON/OFF daily + operate jet for 1 hour. Rinse the printer automatically with the Replace the ink filter cartridge and refill draining/rinsing tool.
  • Page 88 Servicing 3.2.2 Rinse the conduit and head assembly Circulating clean additive through all pipes in the head and conduit ensures that they are perfectly clean and guarantees that the printer can be restarted easily after being shut down for between one and two weeks. The procedure is as follows: 1- With the printer running and the jet idle, make the machine take in additive from the recuperation gutter for 20 seconds.
  • Page 89 Servicing 3.2.3 Restarting the printer after rinsing the conduit and head Restart the printer simply by pressing However, we recommend checking that the ink jet is present and stable. • It may be necessary to use the [Stability] function. • It is essential to use the [Refresh] function for 5 minutes. NOTE Remember to open the recuperation gutter.
  • Page 90 Servicing 3.2.5 Restarting the printer after manual rinsing For a shutdown of less than three months: For a shutdown of more than three months: The procedure involves three phases: The procedure involves five phases: 1) Drain. 1) Drain. 2) Change the filter cartridge. 2) Completely rinse the ink cartridge.
  • Page 91 Servicing 3.2.6 Rinsing the printer with the draining/rinsing tool This procedure involves two phases: Manually rinsing the recuperation gutter. Automatically rinsing the printer. Manual rinsing of the recuperation gutter With the printer running and the jet idle, make the machine take in additive from the recuperation gutter for 20 seconds Stop the printer and unplug it from the mains.
  • Page 92 Servicing Remove and clean the head filter, then replace it. Start the printer. The printer automatically enters "draining" mode and several cleaning, rinsing and draining operations are performed, after which the printer stops automatically. Validate the [Draining] function ( ) to monitor the progress of the automatic draining cycle.
  • Page 93 Servicing 3.2.7 Restarting the printer after rinsing with the tool This procedure involves two phases: Replacing the ink filter cartridge. Refilling with ink. Replacing the ink filter cartridge: Open the main filter, remove the old cartridge, thoroughly clean the inside of the casing with fresh cleaning solution, fit a new filter cartridge and reassemble the filter.
  • Page 94 Servicing NOTES A20733 B0...
  • Page 95 TROUBLESHOOTING Contents Introduction Preliminary checks Appearance of ink circuit Appearance of the electronic compartment and industrial interface board Checking the printer’s general operating parameters Help with diagnostics Introduction At printer start-up At jet start-up During printing A20733 B0...

  • Page 96: Troubleshooting

    Troubleshooting Introduction This chapter forms a troubleshooting guide to help users search for the origin of a fault in a quick, logical way. The search starts with a simple diagnosis of the fault, without disassembling any parts, and is refined by a series of precise checks until the defective part is located. This guide provides a directory of possible failures and actions to be taken to restore normal operation.

  • Page 97: Preliminary Checks

    Troubleshooting Preliminary checks All the searches for defective items in the sections below must be preceded by preliminary checks. These checks allow problems such as dirty parts, ink leaks, faulty electric or hydraulic connections to be detected with the naked eye. Stop the printer and disconnect it from the mains, then check the items below: Check Type of problem...

  • Page 98: Appearance Of Ink Circuit

    Troubleshooting Appearance of ink circuit • Stop the printer and unplug it from the mains. • Withdraw the ink circuit until it reaches the stops. • Press the left and right stops simultaneously and pull. • Remove the ink circuit and place it at the base of the console, taking care not to damage the electrical and hydraulic connections.
  • Page 99 Troubleshooting 2.1.2 Ink circuit: S8 Egg Classic Front view Rear view 6+7+8 Ink tank Additive tank Condenser with fan Viscometer drain electrovalve Additive addition electrovalve Nozzle rinsing electrovalves Anti-pulse Ink filter Pressure / temperature sensor Pressure pump / by-pass adjustment Viscometer Motor and vacuum pump for head 1 A20733 B0...

  • Page 100: Appearance Of The Electronic Compartment And Industrial Interface Board

    Troubleshooting Appearance of the electronic compartment and industrial interface board The location of the boards are shown in figures 1 and 2. Figure 1: Console electronics compartment Motor control board * Power supply board Main board Front panel board * The motor control board is Installed on main board connectors J13 and J21 on S8 Egg Classic printers.

  • Page 101: Checking The Printer's General Operating Parameters

    Troubleshooting Checking the printer’s general operating parameters In addition to the steps described in the sections above, the printer’s operating status should be checked. The information is available in the maintenance function, accessible by pressing . The following parameters should be noted for subsequent investigation: •...

  • Page 102: Help With Diagnostics

    Troubleshooting Help with diagnostics Introduction This chapter contains tables with the following two columns: • Anomalies observed (by the operator) or displayed (by the printer) • Solutions Each anomaly is identified in the tables by a number in bold. Each anomaly may be resolved by several "Solutions". After performing the preliminary checks, apply the first solution proposed which corresponds to the situation.

  • Page 103: At Printer Start-Up

    1b- Replace 4 A delayed-action fuse (see corresponding procedure). Operator interface indicators off but 2a- Stop and restart the printer. motor starts. 2b- The front panel board is faulty. Contact Imaje technical support. Operator interface indicators off. 3a- Stop and restart the printer. Motor does not start.
  • Page 104 10a- The ambient temperature in the room where the printer is too high, causing the temperature in the electronic compartment to exceed 70°C. Modify the installation. 10b- The main board is faulty. Contact Imaje technical support. 11- Viscometer fault 11a- Check that the viscometer electrovalve operates correctly by monitoring viscometer level variations ( 11b- If the fault persists, contact Imaje technical support.

  • Page 105: At Jet Start-Up

    2b- Check that the ambient conditions (humidity, temperature) comply with the specifications given on the ink technical data sheet. If not, contact Imaje technical support to fit dry air head overpressure accessories. 2c- Check the electromagnetic environment around the head (interference).

  • Page 106: During Printing

    1d- Enable the [Refresh] function for 2 minutes. 1e- Check the electromagnetic environment around the head (interference). The main board is faulty. Contact Imaje technical support. IMP does not reply 2a- The fault appears after a prolonged conveyor stoppage while printing a message in Tachy mode.
  • Page 107 4e- Check the viscosity reference time displayed on the printer and the theoretical viscosity given on the ink data sheet. The head requires mechanical and/or electronic adjustment. Contact Imaje Technical Support. 4g- The main board is faulty. Contact Imaje Technical Support. Example 3: Example 4: A20733 B0...
  • Page 108 Troubleshooting NOTES A20733 B0...
  • Page 109 ADJUSTMENT AND REPLACEMENT PROCEDURES Contents Adjustment procedures Jet break-off point Adjusting the jet in the gutter Adjusting the pressure motor speed Replacement procedures Replacing the mains fuse (4 A delayed-action fuse) Changing the ink Replacing the ink filter cartridge Replacing the pressurization air filter A20733 B0...

  • Page 110: Adjustment Procedures

    Adjustment and replacement procedures Adjustment procedures Jet break-off point Special tools: - Bifocal lens (eyeglass). PREPARATION 1- Place the head on the support stand. 2- Start the jet and leave it running for at least half an hour. 3- Remove the upper cover and the head cover. ADJUSTMENT 4- The adjustment procedure must be performed while looking at the jet through the eyeglass (see Figure 1).
  • Page 111 Adjustment and replacement procedures CHECKS AND TESTS 5- Close the head cover. Clear any faults. 6- Perform printing tests and adjust again if necessary. Figure 1: Adjusting the break-off point Potentiometer housing Eyeglass Rotation 4-5-6 Jet seen through eyeglass Satellite drop CORRECT SETTING Charge electrode A20733 B0...

  • Page 112: Adjusting The Jet In The Gutter

    Adjustment and replacement procedures Adjusting the jet in the gutter Special tools: - Cannon orientation tool, ring spanner. - Bifocal lens (eyeglass). - Head cleaning kit. - Protective goggles. - 1.5 mm Allen wrench. - Tweezers. IMPORTANT Protective goggles must be worn during this operation to avoid any ink being splashed into your eyes.
  • Page 113 Adjustment and replacement procedures 6- Loosen the cannon holder lock screws (see Figure 1). 7- Bring the jet closer to point A or point A’ by pivoting the cannon in the cannon holder using an orientation tool at the top (Figure 2). IMPORTANT Rotate in the direction shown on the diagram to avoid unscrewing the cannon nut.
  • Page 114 Adjustment and replacement procedures 8- Visually center the jet in the charge electrode using the lower cam (see Figure 3). IMPORTANT Do not force the cams. Loosen or tighten the lock screws to ease or restrict the movement of the cannon holder. 9- Center the jet in the gutter using the upper cam (Figure 4).
  • Page 115 Adjustment and replacement procedures FINAL OPERATIONS 11- Tighten the two cannon holder lock screws without forcing them. 12- Stop the jet. Clean the head and reconnect the resonator leads. Replace the protective cover. Close the head cover. 13- Start the jet and re-enable the "Recup. fault" check. 14- Check the break-off point and adjust if necessary.

  • Page 116: Adjusting The Pressure Motor Speed

    Adjustment and replacement procedures Adjusting the pressure motor speed Special tools: - Allen wrench. The speed of rotation of the motor primarily depends on the ink viscosity. The by-pass must not be adjusted unless the ink viscosity is correct, i.e. when the viscosity measured by the printer is within one second of the reference viscosity.

  • Page 117: Replacement Procedures

    Adjustment and replacement procedures Replacement procedures Replacing the mains fuse (4 A delayed-action fuse) With the printer stopped and unplugged. 1- Unscrew the mains lead protective sleeve. 2- Remove the mains lead from the printer. 3- Use a screwdriver to remove the fuse holder from adjacent to the mains plug. 4- Change the fuse and replace the fuse holder.

  • Page 118: Changing The Ink

    Adjustment and replacement procedures Changing the ink Special tools: - 3 mm Allen wrench. - Recovery tray. - Protective equipment (latex gloves, goggles, cloths). Frequency: See ink technical data sheet. Take great care to avoid spilling any ink onto your clothes or the floor. WITH THE PRINTER SWITCHED OFF: 1- Open the front door of the console.

  • Page 119: Replacing The Ink Filter Cartridge

    Adjustment and replacement procedures Replacing the ink filter cartridge Special tools: - Standard draining and cleaning equipment. - 3 mm Allen wrench. PREPARATION 1- Stop the printer and unplug it from the mains. Withdraw the ink circuit to the end of the runners.

  • Page 120: Replacing The Pressurization Air Filter

    Adjustment and replacement procedures Replacing the pressurization air filter The filter is located on the air treatment unit, in the rear compartment. Stop the printer and unplug it from the mains. Disconnect the air inlet or close the valve. Pull out the air treatment unit. Unscrew the air filter housing and pull it downwards.
  • Page 121 CONSUMABLES Contents Consumables Definition Sales units Labeling Consumables and the application Consumables and the printer Ink usage specification Consumption Consumables and safety Consumables, printer warranty and public liability A20733 B0...

  • Page 122: Consumables

    Its composition prevents the ink drying within the cannon during a printer shutdown. Sales units Depending on the type of ink and additive, Imaje offers packs of 4 or 6 units and starter kits containing ink and additive. A20733 B0...

  • Page 123: Labeling

    Consumables Labeling Labeling serves three purposes: • Identify the supplier, giving the address and contact details. • Inform the user about the product. - article reference, - manufacturing batch number: this should be quoted if you need to contact our Technical Support department, - expiry date: date guaranteeing original product quality.

  • Page 124: Consumables And The Application

    The customer is solely responsible for qualifying the intended application. To help existing and prospective customers qualify their applications (including the ink, ink jet equipment, nature of surfaces, manufacturing process, printing specifications, etc.), Imaje makes a wide range of printers and inks available for producing print samples.

  • Page 125: Consumables And Safety

    Consumables Consumables and safety Safe use of Imaje consumables implies knowledge of some of the corresponding physical and chemical properties as well as the safety recommendations for storing, handling and using the products. All this information is available on a safety data sheet, available by request from our sales offices.

  • Page 126: Consumables, Printer Warranty And Public Liability

    The use of any consumable products other than those supplied by Imaje shall render the equipment warranty null and void and result in the exclusion of any claims concerning impaired performance potentially causing production stoppages.
  • Page 127 TECHNICAL SPECIFICATIONS A20733 B0...
  • Page 128 Technical specifications • Physical description • Dimensions : - Control cabinet: 1051 mm x 463 mm x 340 mm (41.4" x 18.2" x 13.4") - Print head: 225 mm x 44.5 mm x 47.5 mm (8.8" x 1.7" x 1.9") •...
  • Page 129 Technical specifications • Standard accessories - Head support stand - Object detector - Tachometric generator - External alarm (girolamp or siren) - Head protection - Transport trolley - Head movement • Main operating characteristics - counting of individual objects or batches, - full autodating, - variable message library, - logo printing (15 logos/jet)
  • Page 130 Technical specifications • Ink • Color: - See ink catalog • Standards compliance • EMC: - Emission EN55011 - Class B FCC - Class B - Immunity IEC 1000-4-2 (10 Kv) IEC 1000-4-3 (10 v/m) IEC 1000-4-4 (2 Kv) IEC 1000-4-5 (2 Kv) •...
  • Page 131 INPUT / OUTPUT CONNECTIONS Contents Industrial Interface board Inputs Object detection cell Object detector inhibit Tachometric generator Absolute limit values for inputs Outputs "General alarm" output "Jet alarm" output Electrical characteristics of the outputs Timing diagrams DTOP and VALIMP DTOP, message printing and BUSY A20733 B0...

  • Page 132: Input / Output Connections

    Input / Output Connections Industrial Interface board The rear access door must be opened to connect accessories. To do this: • Unscrew the two quarter-turn screws located on either side of the rear door. • Gently pull the door open (see Figure 1). The connection terminal blocks on the Industrial Interface board are organized as follows: •...
  • Page 133 Input / Output Connections Connector B1:CPU RS232C asynchronous serial link and 20 mA current loop Program output - counter reset. RS422 synchronous serial link. TTYOUT- Photocoupled output TTYOUT+ 20 mA current loop TTYIN- Photocoupled input TTYIN+ -TXDOUT Transmit Data RTSOUT Request To Send DTROUT Data Terminal Ready...
  • Page 134 Input / Output Connections Connector B2: Head printing + 24V T1 + 24 V power supply, max. 300 mA, not galvanically isolated (not present when machine stopped) COMDTOP1 Object pulse common Terminals for connecting object detection cell DTOP1 Object pulse COMVALIMP1 VALIMP common -VALIMP1...

  • Page 135: Inputs

    Input / Output Connections Inputs Object detection cell • Role: The object detector is connected to the DTOP and COM DTOP terminals on the industrial interface board. When it is activated by an object, the detector sends a signal to the printer which starts printing. To avoid spurious signals, the DTOP input is filtered to a minimum of 200 µs.

  • Page 136: Absolute Limit Values For Inputs

    Input / Output Connections Absolute limit values for inputs • Maximum permissible current in photocoupler LED: DC: I = 25 mA AC ~: I = 50 mA with a duty cycle of 50% and a pulse width of 1 ms. = 1 A with a pulse width ≤...

  • Page 137: Outputs

    Input / Output Connections Outputs "General alarm" output • Role: This output signals a printer malfunction which does not stop printing. This alarm is generated to warn the operator to correct the cause of the anomaly. Two types of contact are available for this output: an "Inactive" (normally closed) dry contact or an "Active"...

  • Page 138: Timing Diagrams

    Input / Output Connections Timing diagrams DTOP and VALIMP DTOP VALIMP TOPIMP ≥ 1 µs If t > filter value => Message printed ≤ filter value If t => No message printed A20733 B0...

  • Page 139: Dtop, Message Printing And Busy

    Input / Output Connections DTOP, message printing and BUSY 4.2.1 Printing : "Object mode" DTOP B C D Printing MESSAGE BUSY A = TOPIMP > filter value = from 0 to 700 µs if "Run/Stop" option set to Run B = CPU/IMP communication = 0 if "Run/Stop"...
  • Page 140 Input / Output Connections NOTES A20733 B0...
  • Page 141 Tél.: (33) 04 75 75 55 00 Fax : (33) 04 75 82 98 10 http://www.imaje.com Imaje S.A. reserves the right to modify the technical characteristics of the product without prior notice. Reproduction, in whole or in part, is prohibited. English edition...
