Aircraft in Miniature Limited USAF B-4 Assembly Instructions

Maintenance stand, 1:72 and 1:48 versions

Advertisement

1

General

A
Remove each etched part from the fret as required and
remove any burrs with a needle file.
Removes all flash, mould lines or burrs from the castings.
B
Use solder or your preferred adhesive (super glue or
epoxy cement) to assemble the model. Use adhesive to
attach the cast metal parts.
C
Pilot holes are etched for all pivot points (shown thus
Use a 0.75mm diameter twist drill to enlarge these h o l e s
to suit the dress-makers pins supplied for use as pivots.
2

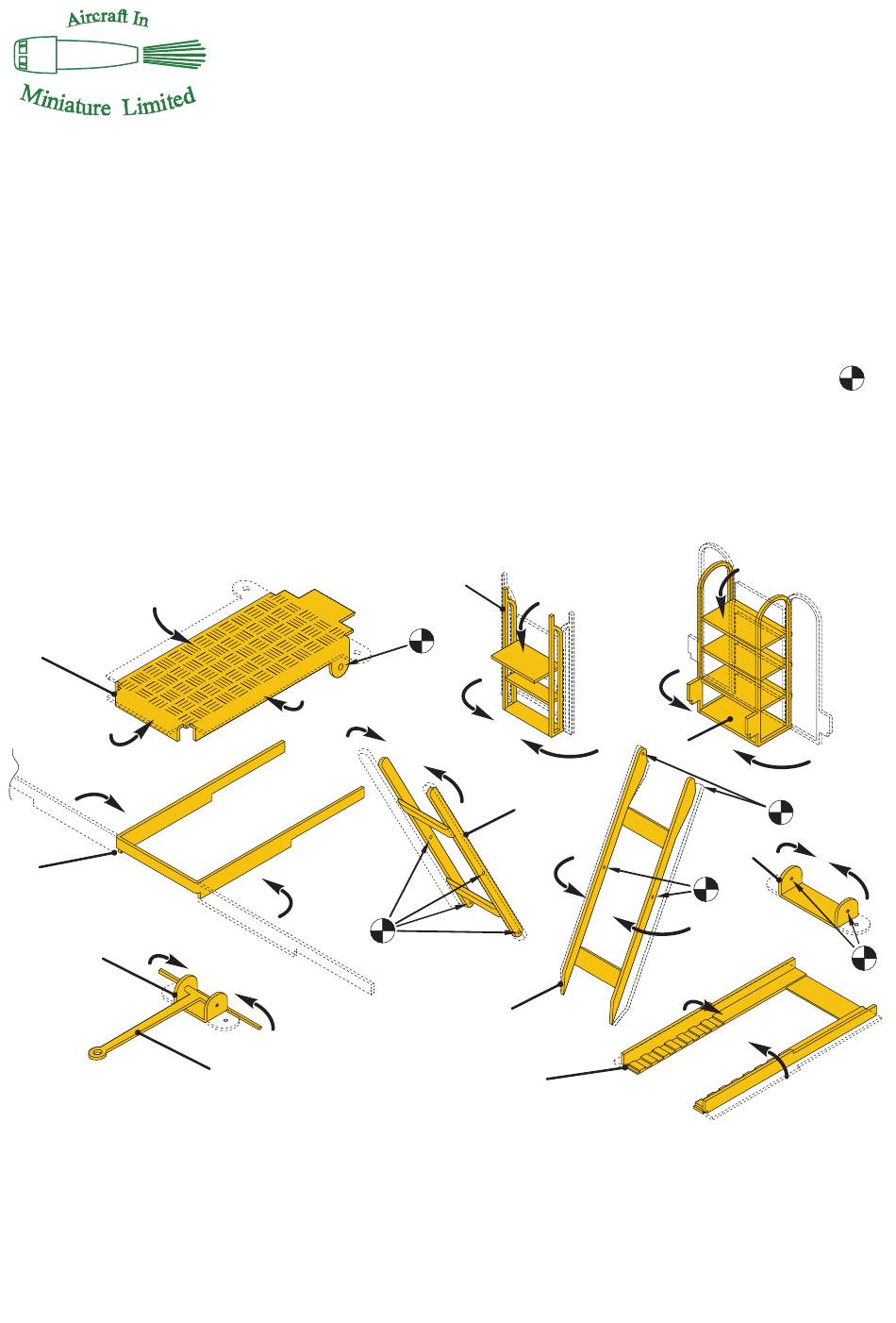

Fold each part as shown in Figure 1, below. Fold up the tabs on
the chassis (2) to trap the pins on the towbar (9), but leave the
towbar free to move.
3
1
2
Figure 1
3
Platform Assembly (see Figure 2)
A
Make sure that the capping (1) fits the platform (3), and
that the hand rails (11 and 2 x 12) fit into the sockets at the
corners of the platform, then attach the capping with the
top of the capping level with the platform top face.
USAF B-4 MAINTENANCE STAND
ASSEMBLY INSTRUCTIONS
1:72 and 1:48 versions
9
7
6
5
3
11
8
).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USAF B-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aircraft in Miniature Limited USAF B-4

  • Page 1 USAF B-4 MAINTENANCE STAND ASSEMBLY INSTRUCTIONS 1:72 and 1:48 versions General Remove each etched part from the fret as required and remove any burrs with a needle file. Removes all flash, mould lines or burrs from the castings. Use solder or your preferred adhesive (super glue or epoxy cement) to assemble the model.
  • Page 2 Attach the lever to the hydraulic pump, then attach the assembly to the corner of the platform in the position shown. Attach the top tread of the ladder (7) to the tab on the platform (3). BOND AREAS ARE SHOWN IN RED LEVER HYDRAULIC PUMP...
  • Page 3 Scissors Links Assembly (see Figure 4, below) Slide the inner scissors link (6) inside the outer scissors link (5) until the central pivot holes are aligned. Put a pin through the holes on one side of the assembly. Crop the shank of the pin, leaving about 2 - 3 mm of shank inside the assembly.
  • Page 4 E & O E. This kit is manufactured in the United Kingdom by Aircraft In Miniature Limited 19, Watling Street, Nuneaton, Warwickshire, CV11 6JJ, England email: info@aim72.co.uk - web site: www.aim72.co.uk...
