ci C-100S Manual

Stereo power amplifier

Download this manual

C100S Stereo Power Amplifier

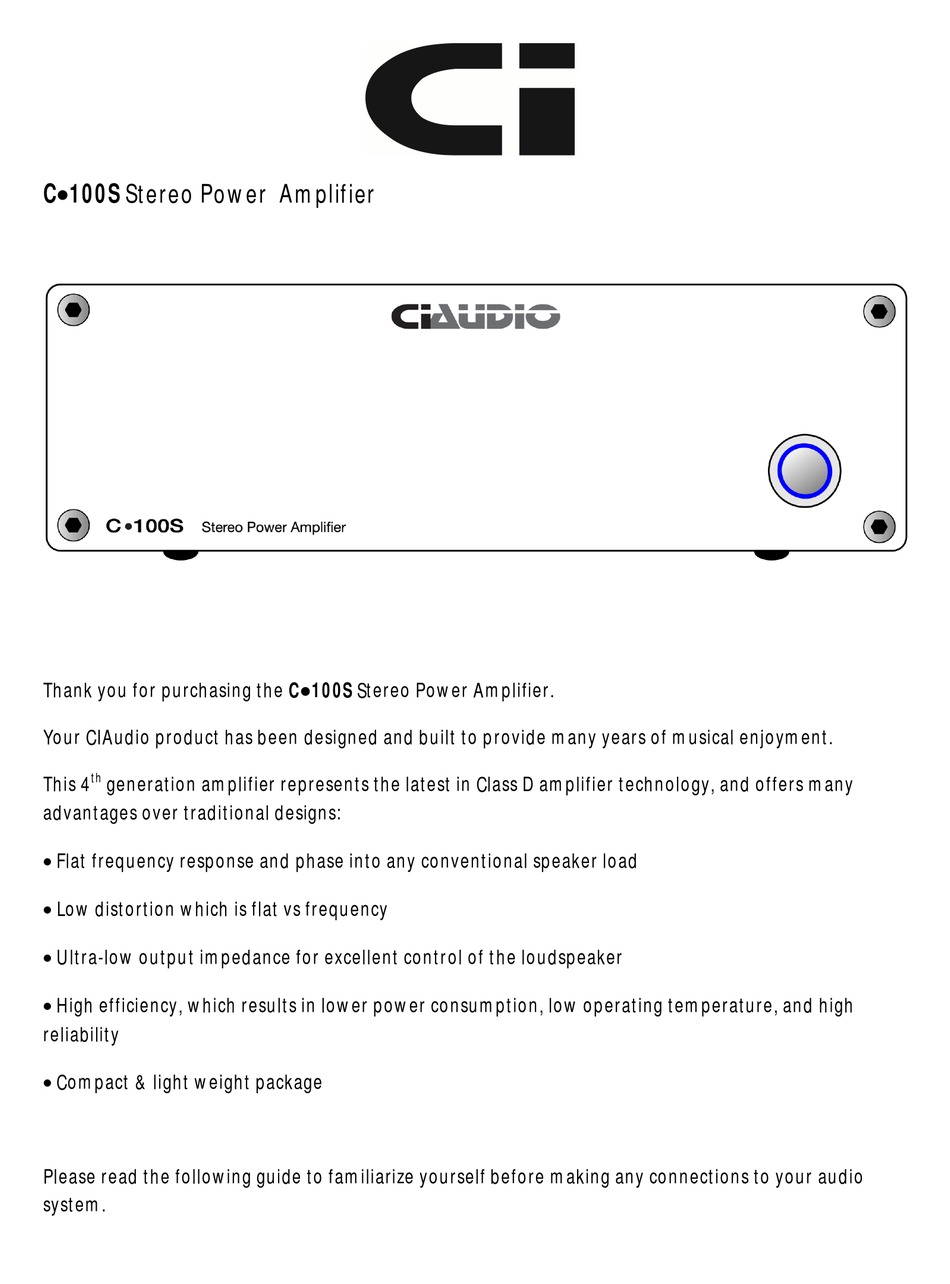

Thank you for purchasing the C●100S Stereo Power Amplifier.

Your CIAudio product has been designed and built to provide many years of musical enjoyment.

This 4

generation amplifier represents the latest in Class D amplifier technology, and offers many

advantages over traditional designs:

 Flat frequency response and phase into any conventional speaker load

 Low distortion which is flat vs frequency

 Ultra-low output impedance for excellent control of the loudspeaker

 High efficiency, which results in lower power consumption, low operating temperature, and high

reliability

 Compact & light weight package

Please read the following guide to familiarize yourself before making any connections to your audio

system.

Table of Contents

Need help?

Do you have a question about the C-100S and is the answer not in the manual?

Page 1 C100S Stereo Power Amplifier Thank you for purchasing the C●100S Stereo Power Amplifier. Your CIAudio product has been designed and built to provide many years of musical enjoyment. This 4 generation amplifier represents the latest in Class D amplifier technology, and offers many advantages over traditional designs: ...
Page 2 Overview C100S is a high power/high performance power amplifier housed in a compact chassis. Due to the high power output, the entire machined aluminum chassis is used as a heat-sink. Although much more efficient than traditional amplifiers, external chassis temperatures can reach 115° Fahrenheit (46°...
Page 3 Installation #1 Gain Selection The 1st step is to select the proper gain. If you’re using an active preamp (tube or solid state), or have very efficient loudspeakers (> 94dB), use the default setting as shipped from the factory (26dB). When using with passive devices such as PLC1, PC4, CD or music player with built-in volume control, use the 32dB selection.
Page 4 Specifications Power Output: 180w per channel into 4 ohms (both channels driven)/100w per channel into 8 ohms (both channels driven). THD+Noise: <.006% (1 watt/1kHz) IMD: <0.005% Input Impedance: 100k ohms (Teflon insulated RCA jacks) Output Impedance: .015 ohms (5-way binding posts) Voltage Gain: 26dB/32dB (user-selectable via external DIP switches) Input Sensitivity: 1.4V/26dB, 0.7V/32dB Maximum output current: 14A (per channel)
