TECHWOOD TMO-2590 Instruction Manual

Digital microwave oven with grill / combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

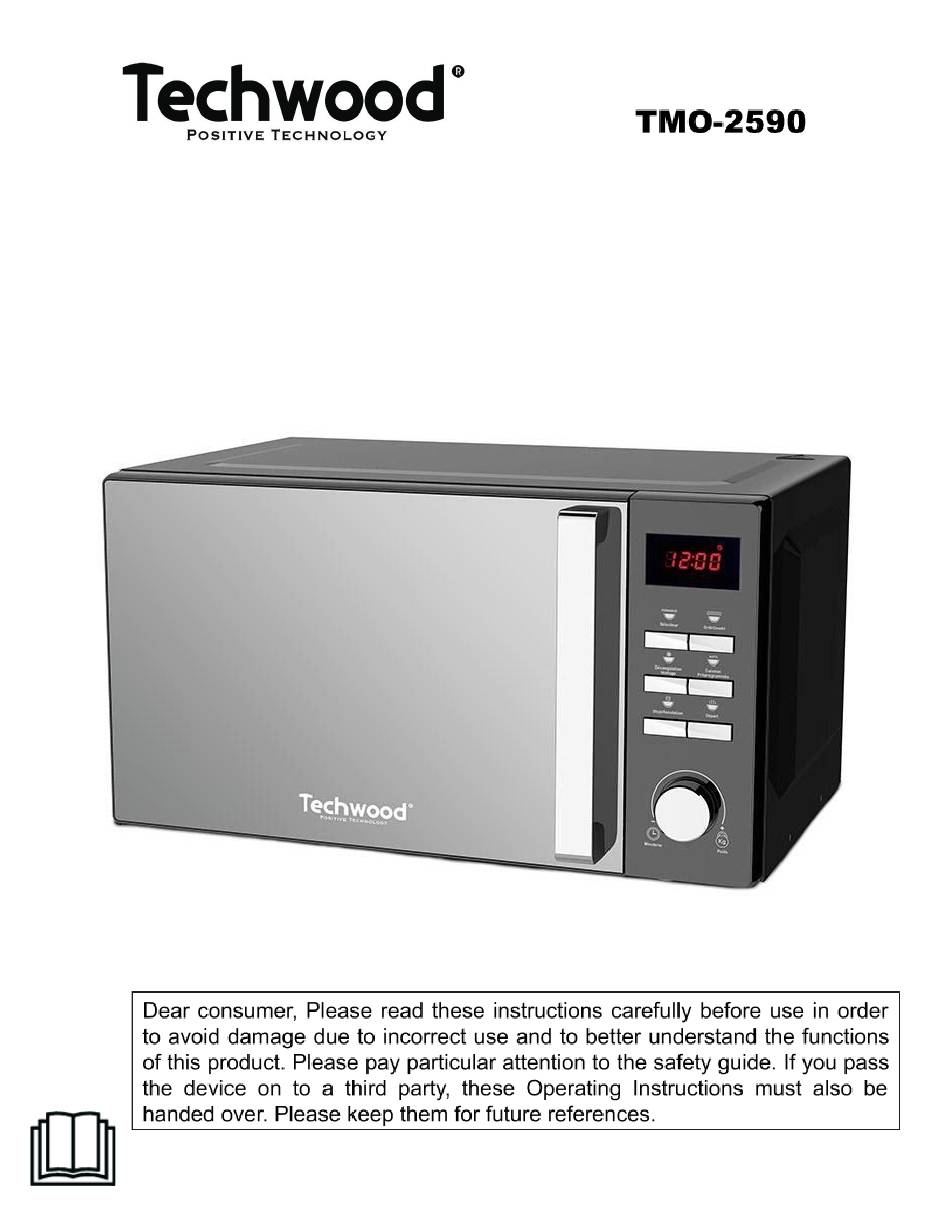

DIGITAL MICROWAVE OVEN
WITH GRILL / COMBO
INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading

Related Manuals for TECHWOOD TMO-2590

Summary of Contents for TECHWOOD TMO-2590

  • Page 1     DIGITAL MICROWAVE OVEN  WITH GRILL / COMBO  INSTRUCTION MANUAL...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Please read these instructions carefully before use. ❑ Keep present instructions for future references. ❑ Check that your mains voltage corresponds to that stated on ❑ the appliance. Only use the appliance for domestic purposes and ❑ household or similar applications such as: - staff kitchen areas, in shops, offices and other working environments;...
  • Page 3 concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. ❑ Cleaning and user maintenance shall not be made by ❑ children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less ❑...
  • Page 4 Never use any other connector than the one provided. ❑ Never move the appliance by pulling the cord. Make sure the ❑ cord cannot get caught in any way. Never wind the cord around the appliance and do not bend it ❑...
  • Page 5 The appliance must be used and rested on a table or flat & ❑ stable surface. The item must not be left unattended when it is connected to ❑ main supply. The item is not to be used, if it has been dropped or if there ❑...
  • Page 6 ● Heating drinks with a microwave can cause abrupt and delayed spurting of boiling liquids. Precautions must also be taken when handling the container. ● The contents of baby feeding bottles and food containers must be stirred or shaken and the temperature must be checked prior to consumption.

  • Page 7: Cleaning And Care

    This appliance is from group 2 & class B This item is group 2 as it intentionally generates radio-frequency energy for heating food or stuff. This item is class B as it is suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
  • Page 8 And it is normal. 7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher. 8. The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can be washed in hot water with sponge and soft detergent or put in the dishwasher.

  • Page 9: General Information

    Tip : To remove some lingering cooking odours, place a microwave compatible bowl with water, lemon juice, and lemon juice. Operate the unit for 5 min at full power. Remove the bowl carefully. GENERAL INFORMATION The symbol "OPEN BOOK" means a recommendation to read important things contained in the record.
  • Page 10 The symbol "HOT SURFACE" warns the user that the walls of the unit can become very hot, and to take precautions as required. The symbol ROHS (Restriction of use of some Hazardous Substances) on the Environmental Protection, certifies that for each of the five hazardous substances •...

  • Page 11: Installation

    or cleaner residue to accumulate on sealing surfaces. ● Do not operate the oven if it is damaged. ● It must be no damage to: • The door (It is particularly important that the oven door closes properly). • The latch and hinges. •...

  • Page 12: Control Panel

    1. Door security locking system 2. Glass door 3. Tray rotation axis 4. Rolling crown 5. Glass turntable 6. Control Panel (details below) 7. Grid for grill 8. Microwaves guide cover (do not remove the mica plate covering the waveguide) CONTROL PANEL 1.

  • Page 13: Getting Started

    After power on, both dots flash ： Press the "Defrost / Clock" button for 3 seconds 0:00 Turn the "Timer / Weight" knob to set the correct time 12​ : 00 Appuyer de nouveau sur le bouton « Décongélation / 12:​...

  • Page 14: Microwave Cooking

    Press "Pause" twice to cancel the cooking program. RECALL OF END OF COOKING When cooking is complete, the LED display will show "End" and three beeps will sound to prompt you to take the food out of the oven. Press the "Pause / Cancel" button once or open the door to stop the beeps. Note : Without opening the door or pressing "Pause"...
  • Page 15 Select the power of the microwave Set the cooking time to 10 minutes 10:00 Press the "Start" key 1 After power up, both dots flash ":" 2 Select the desired microwave power by pressing the "Power selector" key successively until you reach 80P on the display. 3 Set the cooking time by turning the "Timer / Weight"...
  • Page 16 After power on, both dots flash ： Press the "Grill / Combi" key Set the cooking time to 10 minutes 10:00 Press the "Start" key Example: Grilling food with menu C2 for 10 minutes 1 After power up, both dots flash ":" 2 Select program C2 by successively pressing the "Grill / Combi"...
  • Page 17 THAWING This function is used to defrost foods. Press the "Defrost / Clock" button. (« Décongélation / horloge ».) The LED display will show successively d.1 => d.2 => d.3. and back to d.1. d.1 To defrost meat, the weight can vary from 100 gr to 2 kg. d.2 To defrost poultry, the weight can vary from 200 gr to 3 kg.

  • Page 18: Automatic Cooking

    It is not recommended to refrigerate or refreeze. AUTOMATIC COOKING The oven has programmed cooking menus for easy operation. When the light flashes twice, press the key « Cuissons Préprogrammées » "Preprogramed Cooking". The LED display indicates A.1. Note : Each time the button is pressed, the display will show A2 to A.8 and return to A1.
  • Page 19 Suitable for baking one or two portions of frozen dish. A 7 RICE Suitable for baking 100 to 500g of rice. AT 8 VEGETABLES Suitable for cooking 100 to 500g of vegetables. Notes : The expected temperature of food before cooking is 20 to 25 ° C. A higher or lower temperature of food before cooking requires an increase or decrease of the cooking time.
  • Page 20 Example: it is 12:30 Automatic cooking programming => microwave power of 100P => For 9 minutes and 30 seconds => at 14:20 (= 2.20 PM) PROGRESS OF THE OPERATION DISPLAY After power on, both dots flash ： 1.​ Press the "Defrost / Clock" button for 3 seconds 0:00 1.​...

  • Page 21: Multi-Sequence Cooking

    1 Set the local time (if necessary) see paragraph: setting the clock. 2 Set power and cooking time and start time. 2.1 Select the cooking power by pressing the "Power Selector" button and the display shows 100P Note: Each press changes the power as follows: 100% - 80% - 60% - 40% - 20% and return to 100%.

  • Page 22: Child Lock Function

    Example: To cook food in the microwave at 100P for 3 minutes, then grill for 9 minutes. This is a setting of 2 sequences. 1 Microwave 100P for 3min Press the "Power Selector" button (“Sélecteur de Puissance”) and select the 100P power level.
  • Page 23 Glass with high heat resistance. Ceramic with high heat resistance. Baking paper Glass without heat resistance Plastic dish for microwave Metal tray Metal grid Aluminum paper and utensils UTENSILS FOR USE IN THE MICROWAVE OVEN . ALUMINUM : Small amounts can be used to cover small pieces of meat or poultry to prevent them from overcooking.

  • Page 24: Radio Interference

    UTENSILS WHICH MUST NEVER BE USED IN THE MICRO WAVE OVEN . ALUMINUM TRAY : it may cause a large electric arc. => Place the food on a suitable dish. . BOX CARDBOARD OR HANDLE METAL : they can cause an arc. =>...
  • Page 25 THIS APPLIANCE MUST BE CONNECTED TO AN ELECTRICAL PLUG WITH GROUNDING 1. The wall outlet must be within range of the power cable. 2. This oven requires 1.3 KVA to operate. We recommend consulting a technician when installing the oven. 3.
  • Page 26 c) If everything seems to be working properly, test the wall outlet with another device. 2. The microwave does not heat up a) Ensure that the door is properly closed and that the safety interlocks are engaged. Note : In the opposite case, the energy of the microwaves will not flow in the oven. b) This oven is protected by an internal fuse of 250V and 8 amperes.

  • Page 27: Microwave Radiation

    GUARANTEE Before being delivered, all our products are subjected to a rigorous control. This apparatus is guaranteed 24 months starting from the date of purchase by the consumer. The documents in proof of guarantee are : • The invoice and •...

  • Page 28: Specifications

    3. The following conditions may cause excessive exposure to microwaves during maintenance. Incorrect adjustment of the magnetron. Incorrect adaptation of the door lock. Of hinge and door. Incorrect installation of the switch holder. If the door, the door seal or housing has been damaged. SPECIFICATIONS Power supply 230V~ 50Hz...
  • Page 29 CAUTION: In order to minimize the risks of electric shock, In the event of breakdown, not to open the case but to call upon a qualified technician for repairs. This device complies with EC directives, it was controlled according to all current European directives, applicable such as: electromagnetic compatibility (EMC) and low voltage (LVD).
