Summary of Contents for CAB Skyline Series

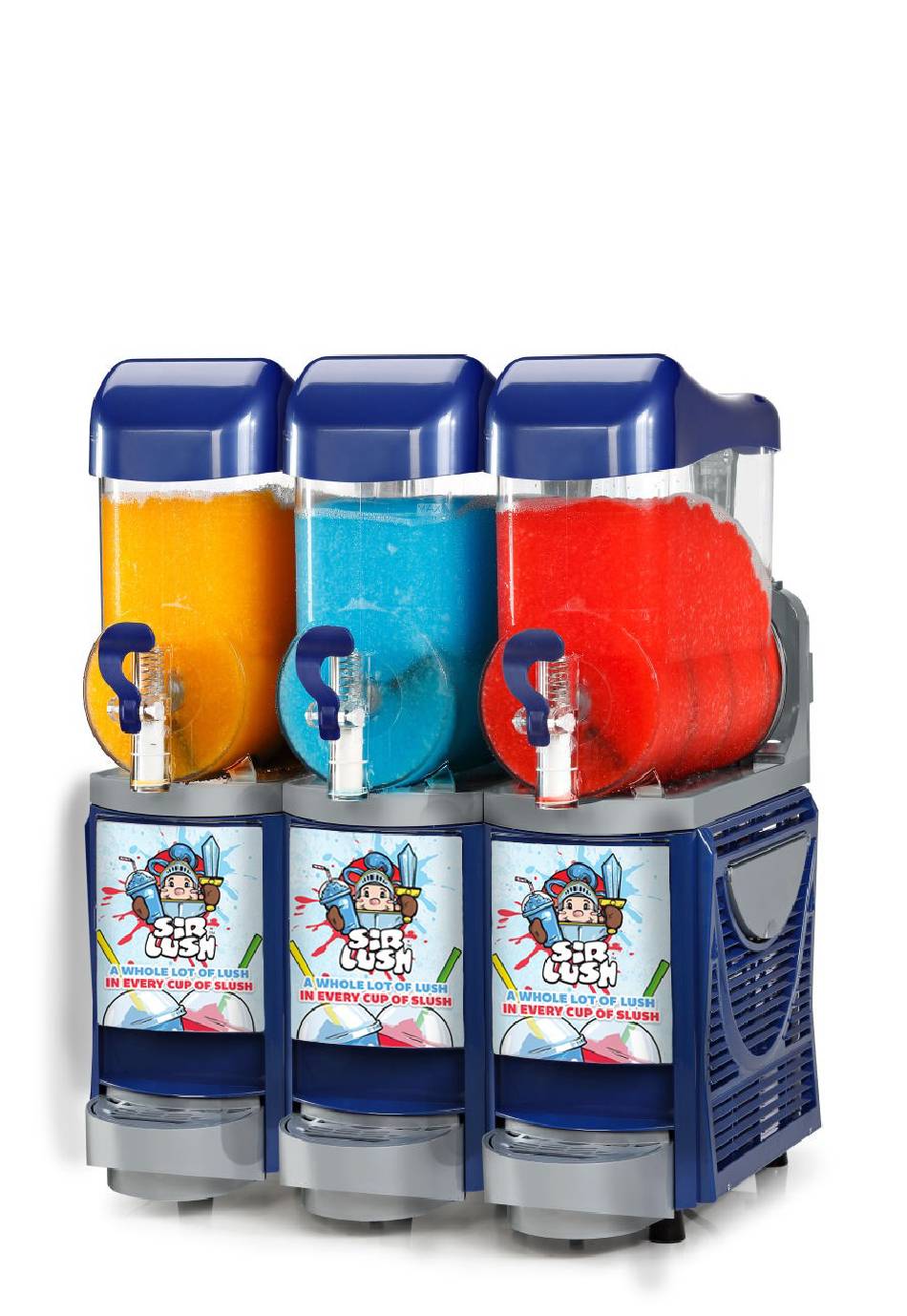

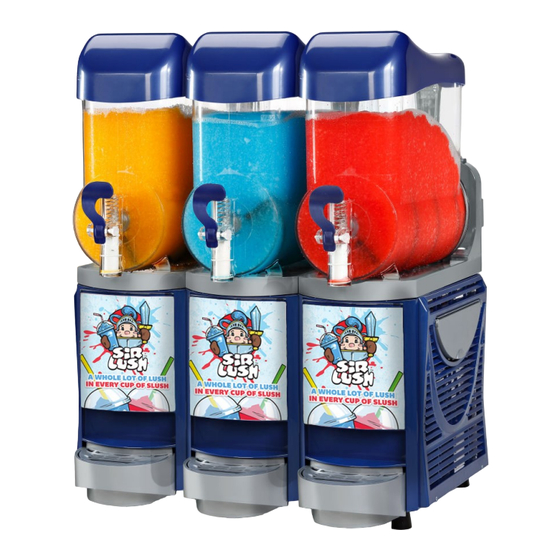

- Page 1 User Manual and warranty for CAB S.P.A Skyline slush machines two bowl and three bowl. For more information not covered please call Us 4 Slush Limited 01202 798100...
- Page 2 Us 4 Slush Limited RTB Warranty. (See also Optional On Site Extended Warranty appendix 4) Please keep a record of your Order ID as this forms part of the warranty validation. Within 5 working days of delivery the Slush machine must be unpacked, examined and fully tested with product for a minimum of 3 hours.
- Page 3 Get Started Please remember that running the machine on freeze when empty or with just water will cause damage to the machines moving parts. It is important to use syrup diluted at the correct ratio. Syrup supplied with this machine will be a ratio of 6-1. Make sure the machines location is well ventilated, never allow the vents to be covered or blocked in any way.
- Page 4 4. Control Panel Main On / Off switch: Switch to position “ I “ to power the machine. Refrigeration switch: Position “ 0 “ = off or to defrost the machine. Position “ I “ = Slush or freeze mode. Position “...
- Page 5 on/off Lights Switch Each bowl has its own Main Refrigeration switch. Auger switch and refrigeration switch. 0 = off or defrost 1 = Slush Mode II = Cold drink or night mode The consistency regulator controls the thickness of the product. See below. Remove small plastic cover Turn wheel The thermostat inside the...
- Page 6 5. Shutting down or night mode. It is recommended that the machine is switched to night mode at close of business. If you prefer to switch it off it is important that the machine is defrosted before switching off. To defrost before switching off. Switch the main refrigeration switch to Defrost, position “...
- Page 7 Remove dispensing handle pin Push dispensing plunger up to remove handle. Remove plunger and spring. Clean dispensing components.
- Page 8 To remove bowl gently unclip by pushing upward and backwards. Pull bowl clear of the seal. The seal can also be removed for cleaning Remove the spiral. Remove suction cup from spiral. Re assemble in reverse. Use food safe petrol gel on all seals and suction cap. Smear a little gel on the lip of the bowl where it meets the bowl seal.
- Page 9 Keep the condenser clean. A lot of dirt and grease gets sucked in by the fan and this gets stuck to the condenser. This is the biggest cause in low performance and machine failure. Keeping the condenser clean should be part of your regular cleaning and maintenance program.
- Page 11 Part Number Description SL008 Skyline Lid F304 Complete Spiral F026 Suction Cap Gasket FEV4 Complete Evaporator F019 Bowl Gasket F303 Drive Shaft F022/1 Sealing Ring F226 Evaporator Bushing FO29 Evaporator Support F030 Cover for Evaporator Support F031 Mini Door F032 Screw Cover F033 Gear Motor...
- Page 12 For sales, parts and service. Us 4 Slush Limited 4 Middle Road Bailie Gate Industrial Estate Wimborne BH21 4DB Telephone 01202 798100...
