Summary of Contents for Skov DOL 100 I/O box Series

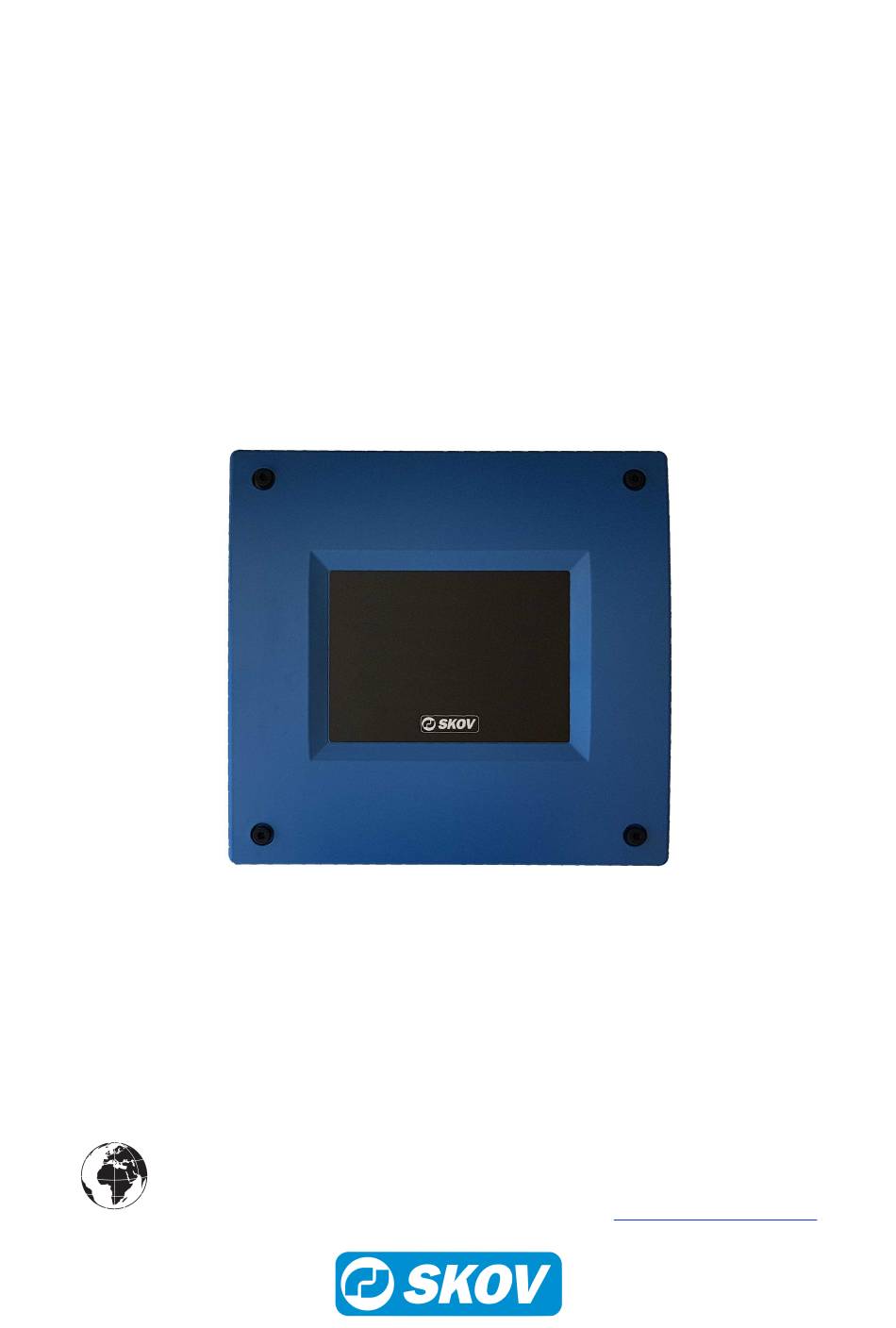

- Page 1 Technical User Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1174 604373 • 2019-07-01...
- Page 3 The date of change appears from the front and back page. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 4: Table Of Contents
DOL 100 I/O Box 1 Product description............................ 5 2 Product survey ............................... 6 Accessories.......................... 6 3 Mounting guide............................... 7 Recommended tools ........................ 7 Mounting on wall .......................... 8 4 Installation guide ............................ 9 Electrical connection ........................ 9 Cable routing.......................... 9 CAN bus module........................ 10 I/O type 15 .......................... -
Page 5: Product Description
DOL 100 I/O Box 1 Product description DOL 100 I/O box 10RL/20RL is used to control valves used for water flushing. The DOL 100 converts the signal into digital signals and transmits them to the controller using CAN bus commu- nication. -
Page 6: Product Survey
DOL 100 I/O Box 2 Product survey 130195 DOL 100 I/O box 10 RL 130196 DOL 100 I/O box 20 RL External I/O box is used to control valves used for water flushing. DOL 100 I/O box contains one or two I/O modules type 15. Relays: 10/20 x NO/NC potential free max. -
Page 7: Mounting Guide
DOL 100 I/O Box 3 Mounting guide 3.1 Recommended tools Below follows a list of tools recommended for installation of the DOL 100. Item Description Cordless drill Screwdriver bits Utility knife Multimeter Tape measure Side cutter Needle-nose pliers Ladder Screwdriver Spirit level Technical User Guide... -
Page 8: Mounting On Wall
DOL 100 I/O Box 3.2 Mounting on wall Mount the DOL 100 digital box on the wall us- ing four screws. Technical User Guide... -
Page 9: Installation Guide
DOL 100 I/O Box 4 Installation guide 4.1 Electrical connection Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe. The installation of a power supply isolator is required for each motor and power supply to facilitate voltage-free work on the electrical equipment. -
Page 10: Can Bus Module
DOL 100 I/O Box 4.3 CAN bus module Item Function Description L7 CAN-Hi CAN high (brown CAN bus) L8 CAN-Lo CAN low (white CAN bus) L9 CANGND GND (green CAN bus) The terminals below can also be used as a looped terminal strip to the next box. L10 CAN-Hi CAN high (brown CAN bus) L11 CAN-Lo... -
Page 11: I/O Type 15
DOL 100 I/O Box 4.4 I/O type 15 I/O type 15 # 1 I/O type 15 # 2 Item Function Description CAN TERM The modules are controlled via CAN bus communication. It is important that the CAN termination jumpers are set correctly in order to achieve secure communication between the modules. -
Page 12: Connection Of Can Bus Cable In Dol 100
DOL 100 I/O Box 4.5 Connection of CAN bus cable in DOL 100 24 V DC power supply CAN bus connection, see dimensions below. CAN_Hi = brown CAN_Lo = white CAN GND = green. Strip the cable so the shield can be connected to the DOL 100 when mounting in the connection terminal. -
Page 13: Setting Up The Dol 100 In The Controller
DOL 100 I/O Box 4.6 Setting up the DOL 100 in the controller Make sure the CAN protocol is set to CANopen. Technical | Setup | Installation | I/O Modules | CAN protocol Technical | Setup | Installation | I/O Modules | Extra I/O modules Select the number of DOL 100 IO 10RL. -
Page 14: Cable Plan
DOL 100 I/O Box 4.7 Cable plan Power supply 100 - 230 V Power supply 100 - 230 V CAN bus cable max. 400 m (A) Power supply to the controller two-wire cable including earthing contact. (B) Max. 400 m CAN bus communication cable between the DOL 100 I/O box and the controller. The CAN bus cable connecting all units of the system may not exceed 400 m. -
Page 15: Circuit Diagram
DOL 100 I/O Box 4.8 Circuit diagram 4.8.1 DOL 100 I/O and water flushing DOL 100 I/O Flushing Flushing Flushing Flushing valve valve valve valve Technical User Guide... -
Page 16: Cleaning
DOL 100 I/O Box 5 Cleaning The DOL 100 box is maintenance-free but should be kept free of litter and dirt. Clean the product with a cloth that has been wrung out almost dry in water and avoid using: • high-pressure cleaner •... -
Page 17: Troubleshooting Guide
DOL 100 I/O Box 6 Troubleshooting guide Defects No light in RXD (green) and TXD Check the supply to the power supply and check for 24 V DC on the (red) LED on the CAN bus module socket J41 on DOL 100. and DOL 100 does not appear as connected in the production con- troller. -
Page 18: Technical Data
DOL 100 I/O Box 7 Technical data DOL 100 I/O box Electrical V AC Rated voltage 115, 200 and 230/240 V AC Operating voltage 103.5-264 Frequency 50/60 Effect Max. power consumption IO type 15, 10RL 8AI 8AO No jumpers. Requires external resistors for use with e.g., water me- ters. -
Page 19: Dimensioned Sketch
DOL 100 I/O Box 7.1 Dimensioned sketch Technical User Guide... - Page 20 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
