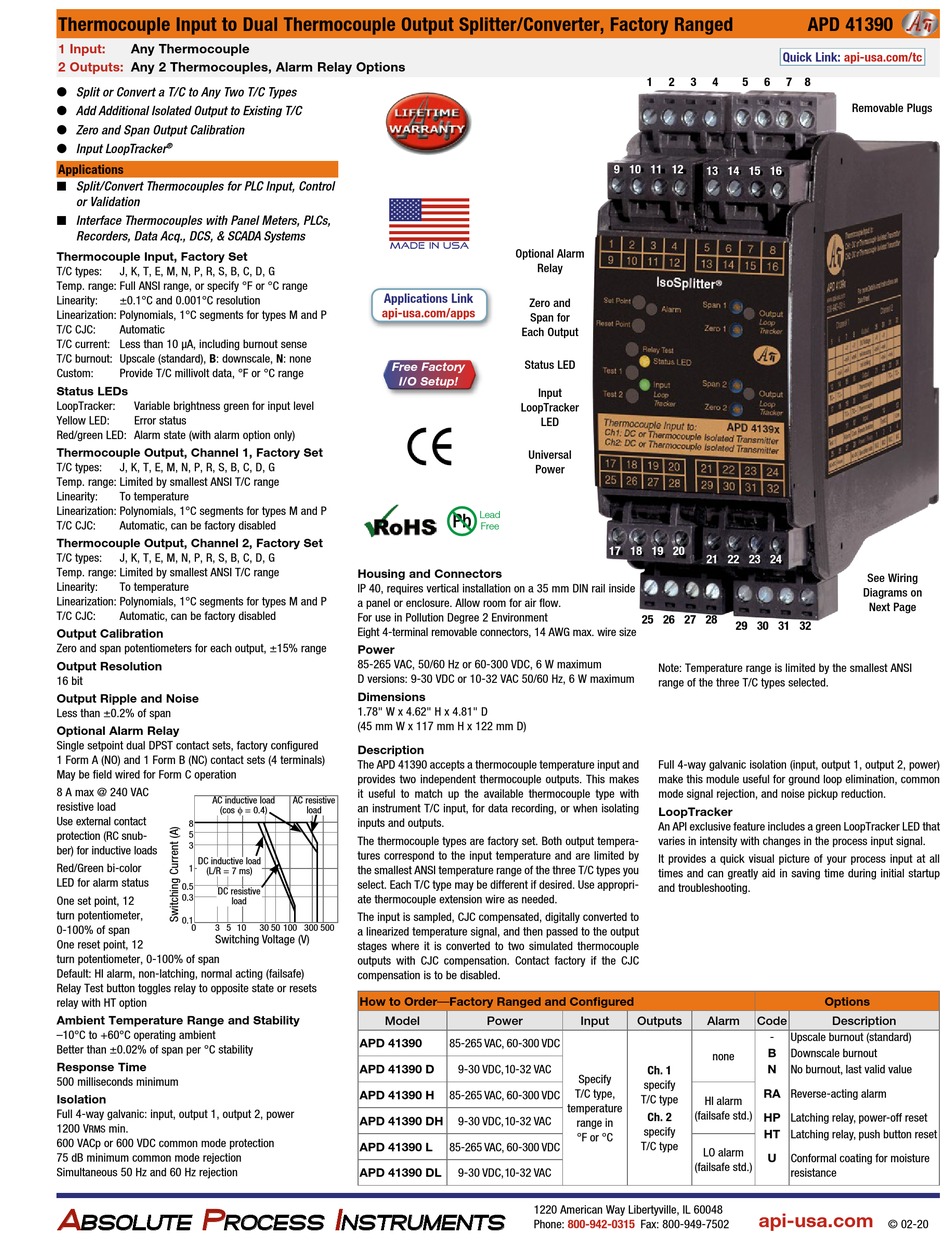

API IsoSplitter APD 41390 Quick Start Manual

Thermocouple Input to Dual Thermocouple Output Splitter/Converter, Factory Ranged
1 Input: Any Thermocouple
2 Outputs: Any 2 Thermocouples, Alarm Relay Options
O Split or Convert a T/C to Any Two T/C Types
O Add Additional Isolated Output to Existing T/C
O Zero and Span Output Calibration
O Input LoopTracker
®

Applications

Q Split/Convert Thermocouples for PLC Input, Control
or Validation
Q Interface Thermocouples with Panel Meters, PLCs,
Recorders, Data Acq., DCS, & SCADA Systems

Thermocouple Input, Factory Set

T/C types: J, K, T, E, M, N, P, R, S, B, C, D, G
Temp. range: Full ANSI range, or specify °F or °C range
Linearity: ±0.1°C and 0.001°C resolution
Linearization: Polynomials, 1°C segments for types M and P
T/C CJC: Automatic
T/C current: Less than 10 µA, including burnout sense
T/C burnout: Upscale (standard), B: downscale, N: none
Custom: Provide T/C millivolt data, °F or °C range

Status LEDs

LoopTracker: Variable brightness green for input level
Yellow LED: Error status
Red/green LED: Alarm state (with alarm option only)

Thermocouple Output, Channel 1, Factory Set

T/C types: J, K, T, E, M, N, P, R, S, B, C, D, G
Temp. range: Limited by smallest ANSI T/C range
Linearity: To temperature
Linearization: Polynomials, 1°C segments for types M and P
T/C CJC: Automatic, can be factory disabled

Thermocouple Output, Channel 2, Factory Set

T/C types: J, K, T, E, M, N, P, R, S, B, C, D, G
Temp. range: Limited by smallest ANSI T/C range
Linearity: To temperature
Linearization: Polynomials, 1°C segments for types M and P
T/C CJC: Automatic, can be factory disabled

Output Calibration

Zero and span potentiometers for each output, ±15% range
Output Resolution
16 bit
Output Ripple and Noise
Less than ±0.2% of span
Optional Alarm Relay
Single setpoint dual DPST contact sets, factory configured
1 Form A (NO) and 1 Form B (NC) contact sets (4 terminals)
May be field wired for Form C operation
8 A max @ 240 VAC
AC inductive load
resistive load
(cos f = 0.4)
Use external contact
8
protection (RC snub- 5
3
ber) for inductive loads
DC inductive load
Red/Green bi-color
1
(L/R = 7 ms)
LED for alarm status
0.5
DC resistive
0.3
One set point, 12
load
turn potentiometer,
0.1
0 3 5 10
0-100% of span
Switching Voltage (V)
One reset point, 12
turn potentiometer, 0-100% of span
Default: HI alarm, non-latching, normal acting (failsafe)
Relay Test button toggles relay to opposite state or resets
relay with HT option
Ambient Temperature Range and Stability
–10°C to +60°C operating ambient
Better than ±0.02% of span per °C stability

Response Time

500 milliseconds minimum

Isolation

Full 4-way galvanic: input, output 1, output 2, power
1200 V min.
RMS
600 VACp or 600 VDC common mode protection
75 dB minimum common mode rejection
Simultaneous 50 Hz and 60 Hz rejection
A A P P
BSOLUTE BSOLUTE ROCESS ROCESS
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
Made in USA
Applications Link
api-usa.com/apps
Free Factory
I/O Setup!
Housing and Connectors
IP 40, requires vertical installation on a 35 mm DIN rail inside
a panel or enclosure. Allow room for air flow.
For use in Pollution Degree 2 Environment
Eight 4-terminal removable connectors, 14 AWG max. wire size

Power

85-265 VAC, 50/60 Hz or 60-300 VDC, 6 W maximum
D versions: 9-30 VDC or 10-32 VAC 50/60 Hz, 6 W maximum

Dimensions

1.78" W x 4.62" H x 4.81" D
(45 mm W x 117 mm H x 122 mm D)

Description

The APD 41390 accepts a thermocouple temperature input and
provides two independent thermocouple outputs. This makes
it useful to match up the available thermocouple type with
AC resistive
an instrument T/C input, for data recording, or when isolating
load
inputs and outputs.
The thermocouple types are factory set. Both output tempera-
tures correspond to the input temperature and are limited by
the smallest ANSI temperature range of the three T/C types you
select. Each T/C type may be different if desired. Use appropri-
ate thermocouple extension wire as needed.
The input is sampled, CJC compensated, digitally converted to
30 50 100 300 500
a linearized temperature signal, and then passed to the output
stages where it is converted to two simulated thermocouple
outputs with CJC compensation. Contact factory if the CJC
compensation is to be disabled.
How to Order—Factory Ranged and Configured
Model
APD 41390
APD 41390 D
APD 41390 H
APD 41390 DH
APD 41390 L
APD 41390 DL
I I
NSTRUMENTS NSTRUMENTS
9 10 11 12
Optional Alarm
Relay
Zero and
Span for
Each Output
Status LED
Input
LoopTracker
LED
Universal
Power
Pb Lead
Free
17 18 19 20
Power Input
85-265 VAC, 60-300 VDC
9-30 VDC, 10-32 VAC
Specify
T/C type,
85-265 VAC, 60-300 VDC
temperature
9-30 VDC, 10-32 VAC
range in
°F or °C
85-265 VAC, 60-300 VDC
9-30 VDC, 10-32 VAC
1220 American Way Libertyville, IL 60048
Phone: 800-942-0315
APD 41390
Quick Link:
1 2 3 4 5 6 7 8
13 14 15 16
21 22 23 24
25 26 27 28
29 30 31 32
Note: Temperature range is limited by the smallest ANSI
range of the three T/C types selected.
Full 4-way galvanic isolation (input, output 1, output 2, power)
make this module useful for ground loop elimination, common
mode signal rejection, and noise pickup reduction.
LoopTracker
An API exclusive feature includes a green LoopTracker LED that
varies in intensity with changes in the process input signal.
It provides a quick visual picture of your process input at all
times and can greatly aid in saving time during initial startup
and troubleshooting.
Outputs Alarm Code
- Upscale burnout (standard)
B Downscale burnout
none
N
Ch. 1 No burnout, last valid value
specify
RA
Reverse-acting alarm
T/C type
HI alarm
(failsafe std.)
Ch. 2
HP Latching relay, power-off reset
specify
HT Latching relay, push button reset
T/C type
LO alarm
U Conformal coating for moisture
(failsafe std.)
resistance
api-usa.com
Fax: 800-949-7502
api-usa.com/tc
Removable Plugs
See Wiring
Diagrams on
Next Page
Options
Description
© 02-20
