Forest 520100X481 Quick Start Manual

Wall switch wireless timer

Hide thumbs

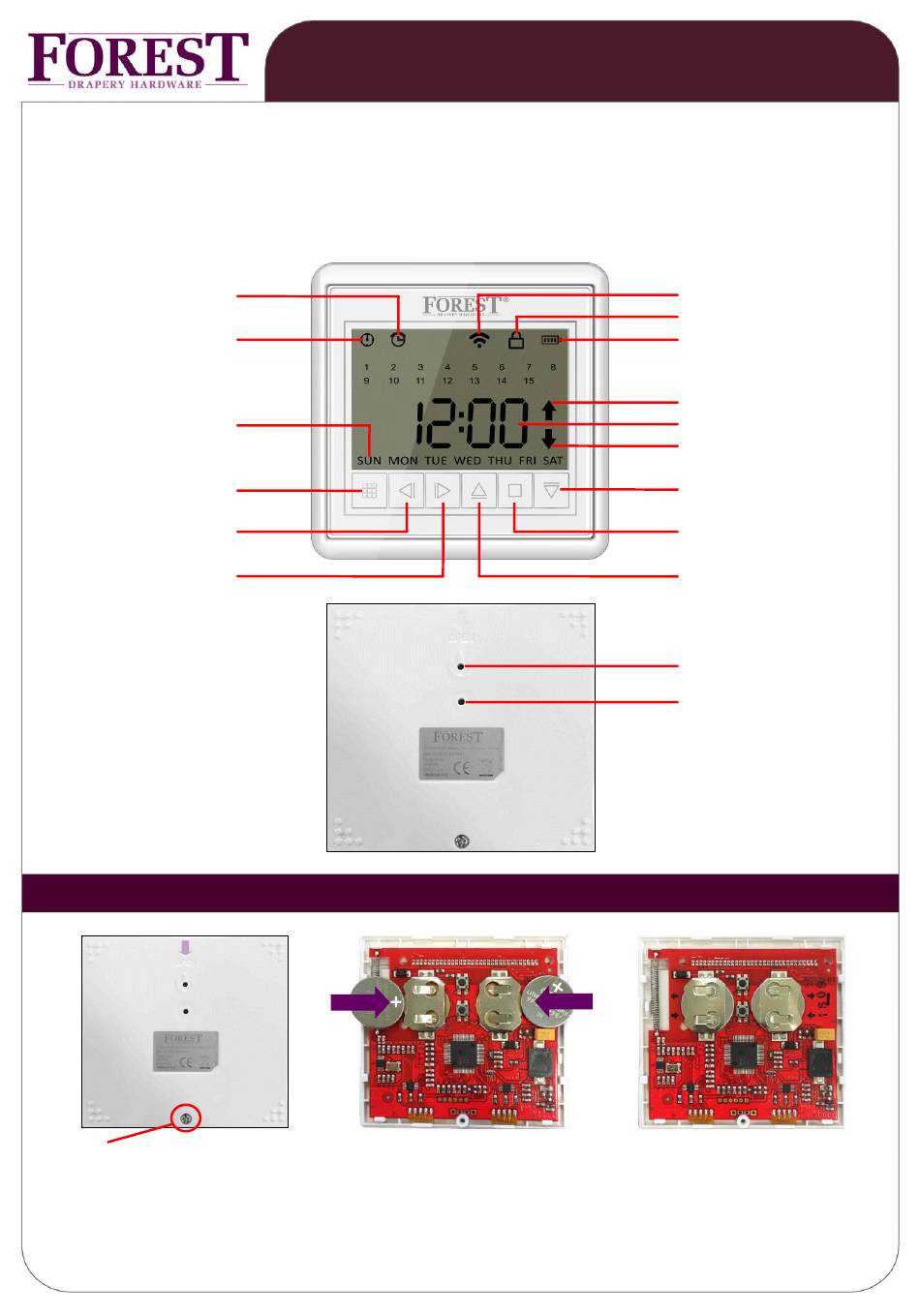

TECHNICAL SPECIFICATION:

● 3V battery type 2x CR2032

● battery life < 3 years

● frequency 433.92MHz

● touch screen

● max. 8 timing points for opening or closing

Timing setting

Clock setting

Week display

Function button

Left/channel -

Right/channel +

unscrew the back side of the housing

and slide the cover downwards

WHEN BATTERIES ARE EMPTY:

After replacing the battery, the programmed receivers and motors will still function as normal. Also the timing

points will stay in the memory, only the running clock must be adjusted.

Please follow the local regulations for disposal of the empty batteries.

08/2016 WDOC Diamond timer

FOREST WALL SWITCH WIRELESS TIMER – 520100X481

● transmit range indoor max. 30mtr

● working temperature -10°C - +50°C

● transmit power max. 10mW

● magnetic wall bracket

● white - 5201001481

INSERT BATTERIES

put in the two batteries

mind the right polarity

www.forestgroup.com

black – 5201006481

Signal status

Screen locking

Battery status

Open command

Time

Close command

Down/Close

Stop

Up/Open

ON/OFF button

P button for programming

tubular motor etc.

v1.1

Table of Contents

Need help?

Do you have a question about the 520100X481 and is the answer not in the manual?

Questions and answers

Summary of Contents for Forest 520100X481

Page 1 FOREST WALL SWITCH WIRELESS TIMER – 520100X481 TECHNICAL SPECIFICATION: ● 3V battery type 2x CR2032 ● transmit range indoor max. 30mtr ● battery life < 3 years ● working temperature -10°C - +50°C ● frequency 433.92MHz ● transmit power max. 10mW ●...
Page 2 FOREST WALL SWITCH WIRELESS TIMER – 520100X481 PROGRAM THE WIRELESS TIMER TO A SHUTTLE MOTOR The Shuttle motor doesn’t respond to the wireless timer when the end limits of the motor are not set. Please check by moving the curtain close and open by hand. Program a channel to a Shuttle motor:...
Page 3 FOREST WALL SWITCH WIRELESS TIMER – 520100X481 SET TIMING POINTS Up to 8 timing points can be set to this device. Each timing point can transmit an OPEN or CLOSE command. Menu item tree: default: timing point number timing point ON/OFF...
Page 4 FOREST WALL SWITCH WIRELESS TIMER – 520100X481 select channel set hours select a single channel or press > button to go change hours ˄ or ˅ press > button to go ALL channels by pressing to hour settings to minute settings...
