- Page 1 I70 - Bale Shear Innovation in Agricultural Machinery OPERATOR’S handbook I70/V.04-11-ENG...
-
Page 2: Table Of Contents
Tanco Autowrap - I70 Bale Shear Operator’s Manual Table of Contents Section1 Chapter Contents Page Warning Signs / Stickers Introduction Technical Specifications Safety Precautions Operating Instructions Maintenance Guarantee Declaration of Conformity... -
Page 3: Warning Signs / Stickers
Tanco Autowrap - I70 Bale Shear 1. Warning Signs / Stickers Operator’s Manual Danger from oil splashes Read Operators Manual Prior to using machine Danger keep hands clear of sharp blades Ensure all nuts & bolts have been tightened prior to... -
Page 4: Introduction

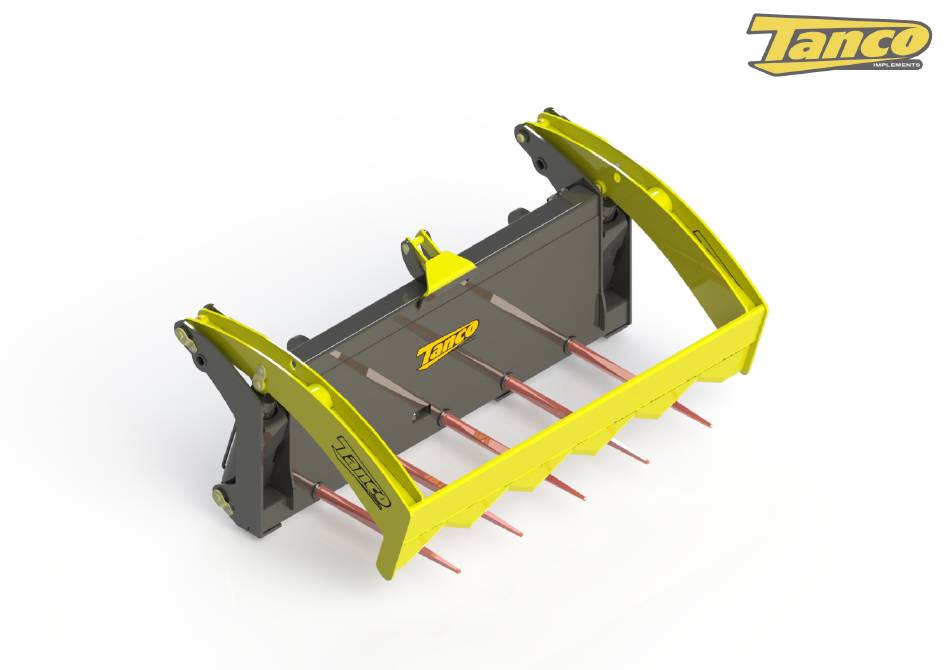

Tanco Autowrap - I70 Bale Shear 2. Introduction Operator’s Manual Cutter Frame Gripper Meachanism Bale Tine Main Frame... - Page 5 2. Introduction Operator’s Manual Tanco Autowrap Ltd congratulates you on your choice of the TANCO AUTOWRAP I70 Bale Shear. We are certain you will be satisfied with the machine, and that you will have the pleasure of your investment for many years.
-
Page 6: Technical Specifications
Tanco Autowrap - I70 Bale Shear 3. Technical Specifications Operator’s Manual NB: Tanco Autowrap Ltd. reserves the right to modify the con- Technical Specifications I70 Bale Shear struction and/or technical specifications without warning and Height (Closed) 0.8m without rights to changes on already delivered products Height (Open) 1.62m... -
Page 7: Safety Precautions
16 years. Dangerous Areas Tanco Autowrap Ltd. has given the safety to the operator the highest priority, but it is still impossible to secure oneself of every danger area on the machine. Therefore we have highlighted below some of the dangers that can occur when using the I70 Bale Shear. - Page 8 Tanco Autowrap - I70 Bale Shear 4. Safety Precautions Operator’s Manual Safety Shutdown Procedure. Work of any type on farm machinery is always more dangerous when the tractor is running. Therefore before cleaning, lubricating, or servicing this unit, the following Safety Shutdown Procedure should always be followed: 1.
- Page 9 Tanco Autowrap - I70 Bale Shear 4. Safety Precautions Operator’s Manual Safety Principles The blades on the Bale Shear are very sharp. You must always take care to keep any risk of an accident down to a minimum. Please adopt the following safety principles when operating the I70 Bale Shear.
-
Page 10: Operating Instructions
Tanco Autowrap - I70 Bale Shear 5. Operating Instructions Operator’s Manual Operating the Bale Shear for Round Bales 1. With the Bale Shear fully open and with the tines resting on the ground, approach the bale and move the tractor forward until the bale is pressed tightly against the Shear Grabs’... - Page 11 Tanco Autowrap - I70 Bale Shear 5. Operating Instructions Operator’s Manual 4. Operate the control levers so they are almost fully open the Bale shear, whilst raising the loader to effectively spill the two halves of the bale either onto the feed passage or onto the feeder wagon.
- Page 12 Tanco Autowrap - I70 Bale Shear 5. Operating Instructions Operator’s Manual Fitting the Bale Shear Bucket To use the Bale Shear Bucket the attachment kit items must first be fitted. The kit items consist of a plunger pin and linkage which is operated by the film gripper hydraulic cylinder.
- Page 13 Tanco Autowrap - I70 Bale Shear 5. Operating Instructions Operator’s Manual 3. Close the shear frame, this also closes the film gripper hydraulic cylinder which engages the plunger pin in the tab on the back of the bucket. 4. IMPORTANT Put the safety chain around the film gripper mounnting.
-
Page 14: Maintenance
Tanco Autowrap - I70 Bale Shear 6. Maintenance Operator’s Manual When not using the Bale Shear, always make sure that it is left fully closed. Pivot points should be greased at regular intervals via the grease nipples. Always disconnect all hydraulic lines and close the Bale Shear fully before carrying out any maintenance. -
Page 15: Guarantee
Tanco Autowrap - I70 Bale Shear 7. Guarantee Operator’s Manual GUARANTEE Subject to hereunder provided, the sellers undertake to correct either by repair or at their election by replacement any defect of material or workmanship which occurs in any of its goods within twelve months after delivery of such goods to first user, with the exception of contractors or commercial users when warranty period is six months. - Page 16 Tanco. Please ensure all relevant information is included on this form 3: Consult with your Tanco dealer (supplier) and have them forward your claim and the damaged item to Tanco.
-
Page 17: Declaration Of Conformity
Tanco Autowrap - I70 Bale Shear 8. Declaration of Conformity Operator’s Manual EC DECLARATION OF CONFORMITY ACCORDING TO DIRECTIVES 2006/42/EC Manufacturer: Tanco Autowrap Ltd Bagenalstown Co. Carlow IRELAND CERTIFIES THAT THE FOLLOWING PRODUCT: TANCO AUTOWRAP MODEL: I70 Bale Shear SERIAL NO: To which this declaration relates, corresponds to the essential requirements of the Directive 2006/42/EC. - Page 18 3. When ordering you must give the Serial Number and Model Number of the machine. 4. All orders must go through your local Tanco Dealer, and must be either faxed or e-mailed to Tanco Autowrap.
- Page 19 Tanco Autowrap - I70 Bale Shear Spare Parts Manual Spare Parts Manual Section 2 Chapter Contents Page Cutter Frame Assembly Gripper Assembly Hydraulic Components Assembly Bucket Attachement * * Option...
- Page 20 Tanco Autowrap - I70 Shear 1. Cutter Assembly Spare Parts Manual...
- Page 21 Tanco Autowrap - I70 Bale Shear 1. Cutter Assembly Spare Parts Manual Item No. Part No. Description 7001000 I70 Main Frame Z001-072 Bale Tine Z001-243 Tine Nut 7002000 70 Cutter Frame Z03-20-34 DU Bush 32mm ID X 40mm Long 34061915...
- Page 22 Tanco Autowrap - I70 Shear 2. Gripper Assembly Spare Parts Manual...
- Page 23 Tanco Autowrap - I70 Bale Shear 2. Gripper Assembly Spare Parts Manual Item No. Part No. Description 7001000 I70 Main Frame 7008020 Gripper Cylinder Z10-02-12 12mm Flat Washer Z26-091B M12 x 90mm Hex Bolt 7005030 Gripper Pivot Pin Z11-02-081 8mm Mud Washer...
- Page 24 Tanco Autowrap - I70 Shear 3. Hydraulic Component Assembly Spare Parts Manual...
- Page 25 Tanco Autowrap - I70 Bale Shear 3. Hydraulic Component Assembly Spare Parts Manual Item No. Part No. Description 7001000 I70 Main Frame 7008040 Dual Overcentre Valve Z10-02-06 6mm Flat Washer Z23-06 6mm Locknut 7008030 Seqeunce Valve 7008010 Bale Splitter Cylinder...
- Page 26 Tanco Autowrap - I70 Shear 4. Bucket Attachment Spare Parts Manual...
- Page 27 Tanco Autowrap - I70 Bale Shear 4. Bucket Attachment Spare Parts Manual Item No. Part No. Description 7001000 Main Frame 7003300 Bucket Frame 7008020 Gripper Cylinder 7003310 Plunger Bracket Z10-02-12 12mm Flat Washer Z26-089B M12 x 70mm Hex Bolt Z23-12...
