Cutler-Hammer
Instructions for 26" Wide Vacuum-Break Starters
Rated 360 Amperes, 7200 Volts, Stab-Connected
HAZARDOUS VOLTAGE.
READ AND UNDERSTAND THIS MANUAL IN ITS
ENTIRETY BEFORE INSTALLING OR OPERATING
CONTROLLER. INSTALLATION, ADJUSTMENT, REPAIR
AND MAINTENANCE OF THESE CONTROLLERS MUST
BE PERFORMED BY QUALIFIED PERSONNEL. A
QUALIFIED PERSON IS ONE WHO IS FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THIS
EQUIPMENT AND THE HAZARDS INVOLVED.
THE CONTROLLER
Each Ampgard
®
motor starter (controller) consists of one
nonload-break isolating switch, one Type SJD, NEMA
Size H3, vacuum-break contactor, current-limiting fuses,
a set of current transformers, and some form of overload
protection. The isolating switch has a limited make and
break rating, suitable only for closing and opening limited
magnetizing current loads. The controller is designed to
start, stop and protect a three-phase medium-voltage
motor within the ratings shown in Table I. The controller
may also be used to switch transformer windings or
capacitor banks. Each Ampgard
of a steel structure that may also enclose a horizontal
bus system to distribute power to two or more sections
and a vertical bus system in each section connected to
the horizontal main bus system. They are configured for
full-voltage starting, nonreversing, single-speed applica-
tions.
Range Of
Normal
System
Utilization
Voltage
Voltage
2200-2500
2300
3800-5000
4000
6200-7200
6600
Nonmotor Applications at: >>>>>>>>>
Transformer Switching Rating =
Capacitor Switching Rating =
Effective 11/97
DANGER
®
controller occupies all
TABLE I. AMPGARD
Continuous
50 or 60 Hertz
Current
Horsepower Rating
Rating
Synchronous Motor
Enclosed
80% P.F.
360A
1500
360A
2500
360A
4000
2200 - 2500 Volts
1250 kVA
1200 kVAR

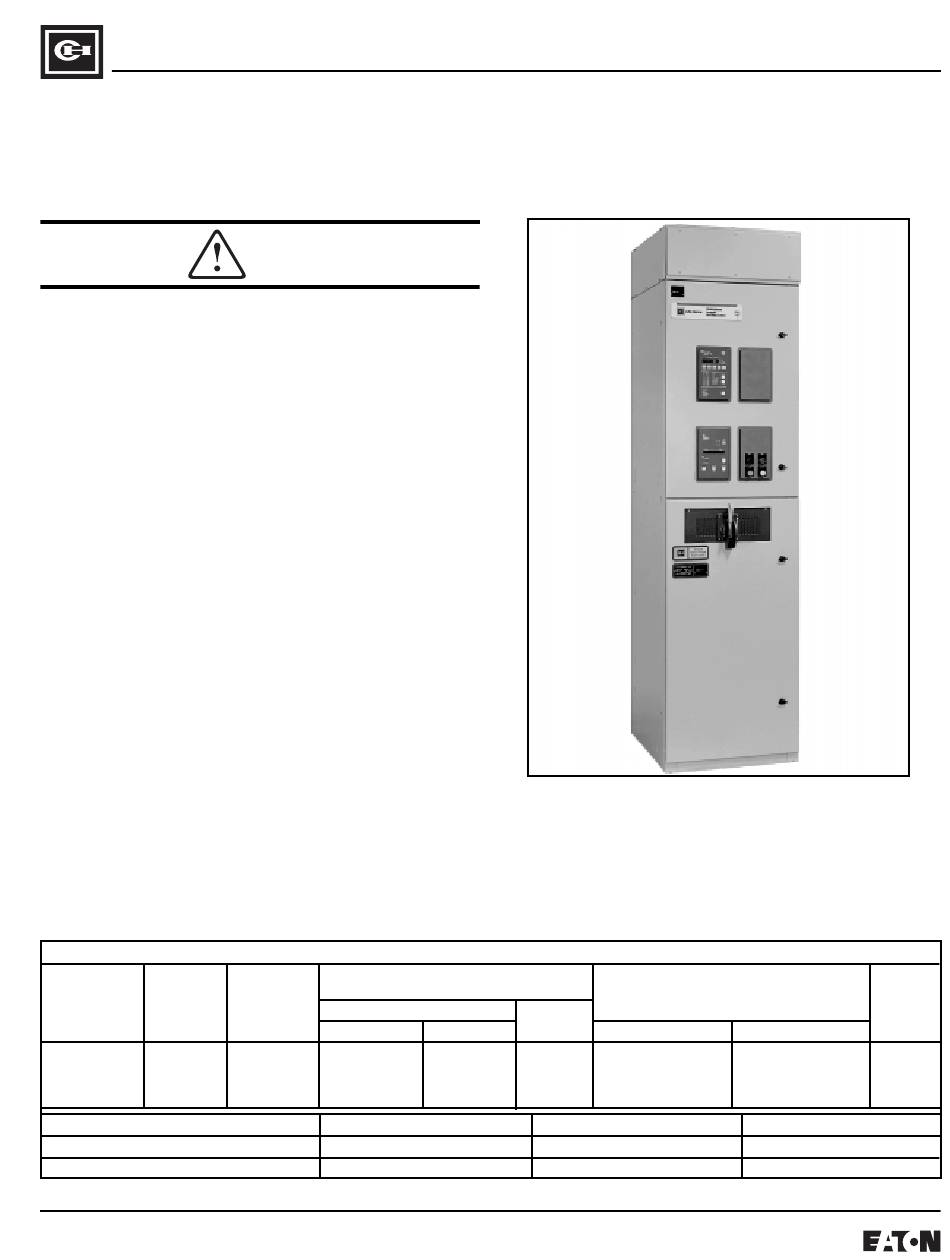

Fig. 1 Ampgard® Motor Controller, 26" Wide
®
EQUIPMENT RATINGS
Induction
100% P.F.
Motor
1750
1500
3000
2500
5000
4000
3800 - 5000 Volts
2250 kVA
2100 kVAR
Interrupting Capacity, 50-60 Hz
(rms) Symmetrical At
Nominal Utilization Voltage
Fuses
Controller
50,000 Amp
200,000 kVA
50,000 Amp
350,000 kVA
50,000 Amp
570,000 kVA
6200 - 7200 Volts
I.B. 48004
Isolating
Switch
Make/Break
Ratings
750 VA
600 VA
600 VA
3000 kVA
2400 kVAR
