Instantel Minimate Pro4 Instruction Sheet

Instruction Sheet

Remote Alarm Controller

The Remote Alarm Controller is used to indicate when
the monitoring unit has exceeded its preset trigger levels
for a Warning signal and Alarm signal. The trigger level
settings can be configured based on the specific sensors
connected to the units. The secondary Alarm trigger
levels must be set higher than the Warning trigger levels.
The remote alarm outputs are isolated from the
seismograph using normal open relay contacts capable
of switching loads up to 2 amps and 24 volts DC.
The connections from the remote alarm output terminals
to the alarm device(s) can be extended over long
distances provided there is enough voltage available for
the alarm device.
Example: Pile driving operations often monitor
ground vibrations. The remote alarm can trigger
a Warning signal to notify an operator that the
activity has exceeded the preset trigger level and
appropriate action may be required. If the secondary
Alarm triggers, (when activity exceeds the dedicated
Vibration Alarm Trigger Level) the operator is notified
that operations should cease immediately

Tools and Materials Required

Micromate
• Micromate ISEE Base Unit . . . . . . . . . . . . . . . . . . . . . .(P/N: 721A2501) or
• Micromate DIN Base Unit . . . . . . . . . . . . . . . . . . . . . .(P/N: 721A2601) or
• Micromate Swedish Blasting Base Unit . . . . . . . . . . .(P/N: 721A3601) or
• Micromate Swedish Pile Driving Base Unit . . . . . . . .(P/N: 721A3801)
• Remote Alarm Controller . . . . . . . . . . . . . . . . . . . . . .(P/N: 721A0901)
• 10 m (33 ft) Extension Cable . . . . . . . . . . . . . . . .(P/N: 721A0803)
• 30 m (100 ft) Extension Cable . . . . . . . . . . . . . . .(P/N: 721A0801)
• 75 m (250 ft) Extension Cable . . . . . . . . . . . . . . .(P/N: 721A0802)
• Micromate Custom Extension Cable Kit . . . . . . . (P/N: 721A3201)
• External Alarm with Power Source (required, not supplied)
Minimate Pro
• Minimate Pro4 monitoring unit . . . . . . . . . . . . . . (P/N: 720A2301) or
• Minimate Pro6 monitoring unit . . . . . . . . . . . . . . (P/N: 720A2401)
• Remote Alarm Controller . . . . . . . . . . . . . . . . . . . . . . (P/N: 720A3901)
• 30 m (100 ft) Extension Cable . . . . . . . . . . . . . . .(P/N: 720A3301)
• 75 m (250 ft) Extension Cable . . . . . . . . . . . . . . . (P/N: 720A3302)
• Custom Length Extension Cable . . . . . . . . . . . (P/N: 301-000034-000)
• Custom Cable Connector Assembly . . . . . . . . . (P/N: 720A3305)
• Remote Alarm/Rs-232 Splitter Cable . . . . . . . . . .(P/N: 720A4001)
The World's Most Trusted Monitors — Vibration · Noise · Air Overpressure
(Used when both a Remote Alarm Controler and a modem must be connected to the monitoring unit at the same time.)
• External Alarm with Power Source (required, not supplied)

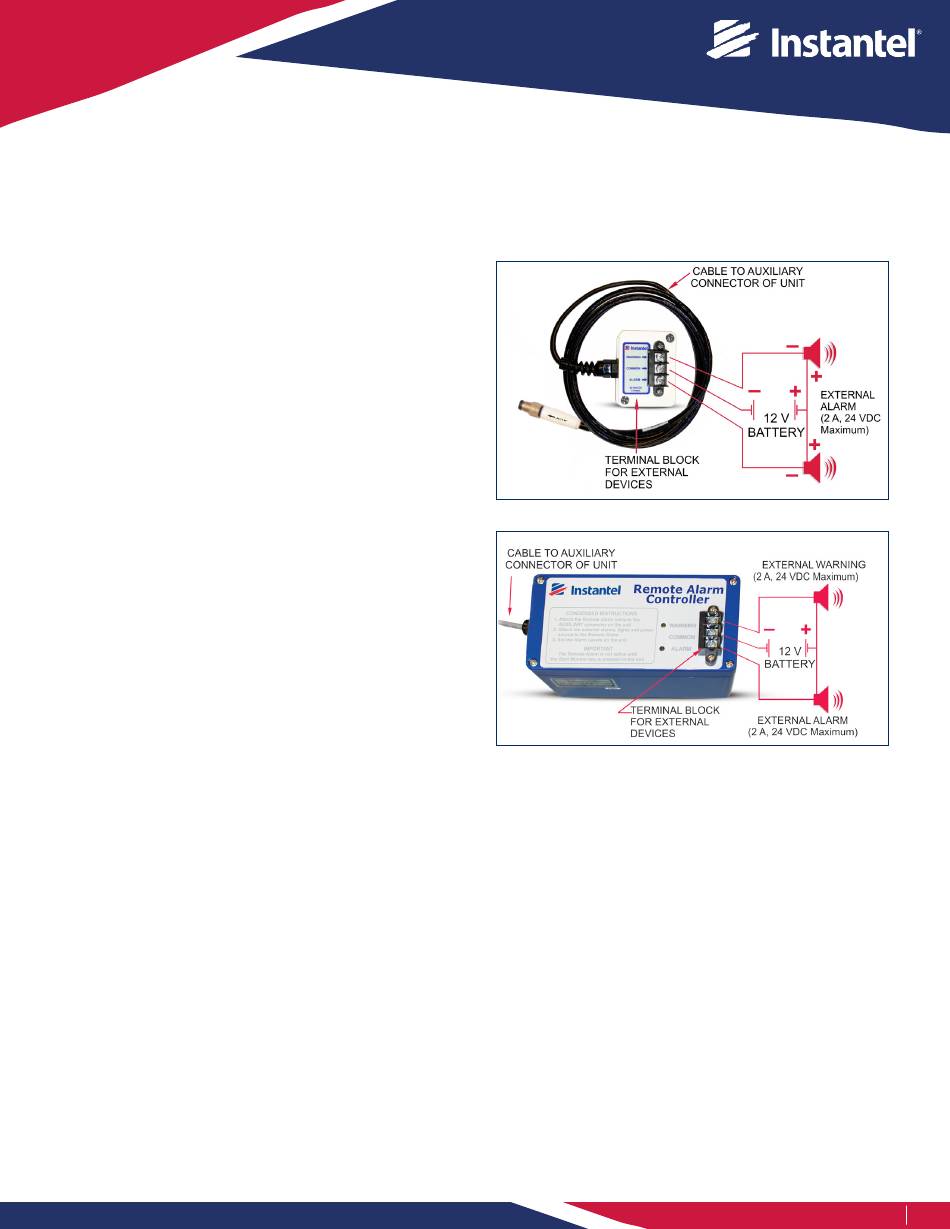

Remote Alarm Controller for Micromate Monitoring Units
.
Remote Alarm Controller for Minimate Pro4/Pro6 Monitoring Units
www.instantel.com
www.instantel.com
Page 1
