MINI MOTORCYCLE
OWNER'S MANUAL
Read and understand this entire manual before using!
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
OFF ROAD USE ONLY!!!
NEVER OPERATE THIS VEHICLE IF YOU ARE UNDER
AGE 12!!!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEMON and is the answer not in the manual?

Questions and answers

Summary of Contents for Shopify DEMON

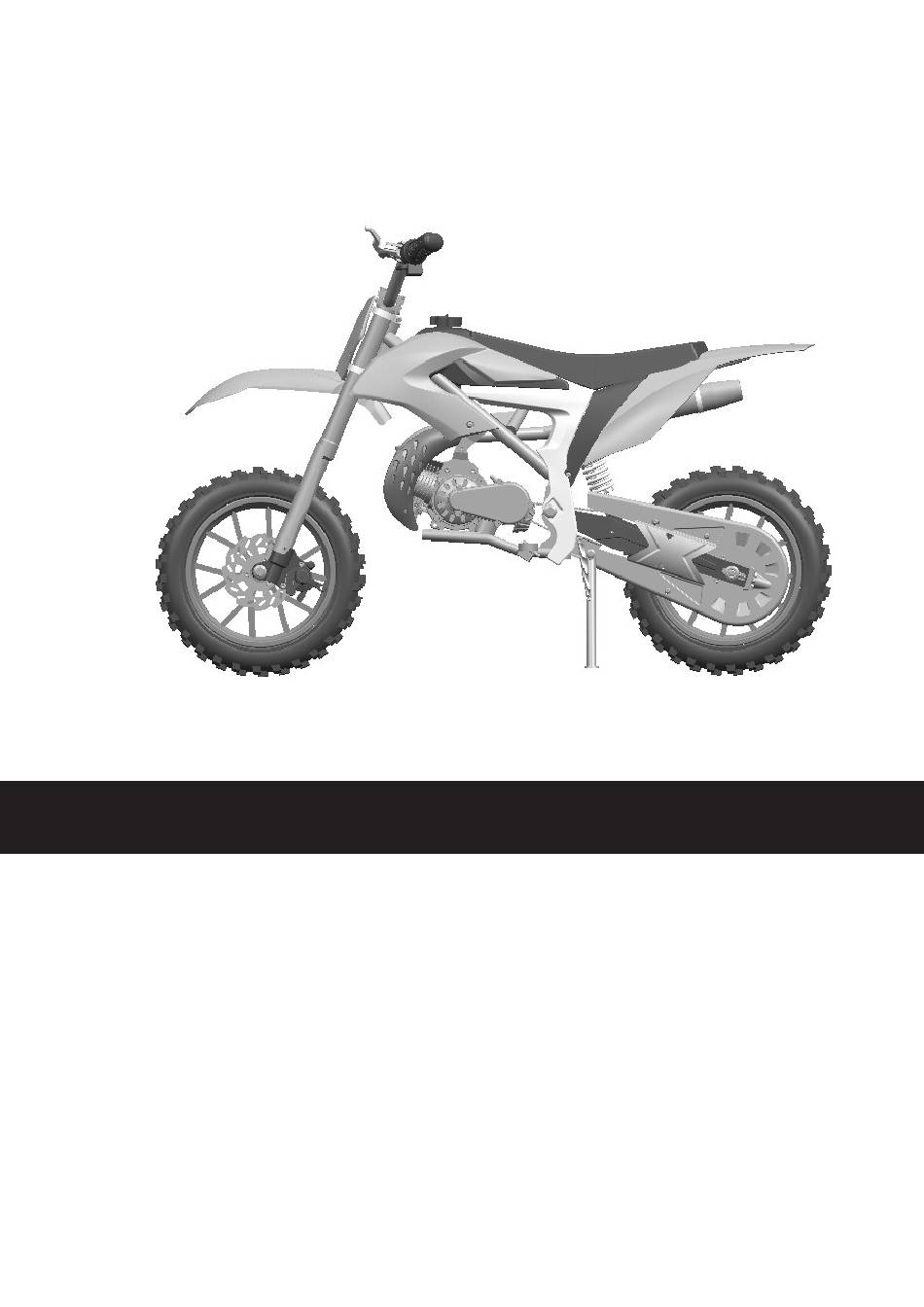

  • Page 1 MINI MOTORCYCLE OWNER’S MANUAL Read and understand this entire manual before using! NOTE: Manual illustrations are for demonstration purposes only. Illustrations may not reflect exact appearance of actual product. Specifications subject to change without notice. OFF ROAD USE ONLY!!! NEVER OPERATE THIS VEHICLE IF YOU ARE UNDER AGE 12!!!

  • Page 2: Safety Warnings

    INTRODUCTION Thank you for purchasing this product. The proper care and maintenance that your vehicle requires is outlined in this manual. Following these introduction will ensure a long trouble-free operating life of this vehicle and your satisfaction with it. SAFETY WARNING SAFETY WARNINGS This vehicle is NOT A TOY and ONLY used in closed off areas remote from public road traffic.
  • Page 3 Keep this product away from small children younger than age 12 and remember that this product is intended for use only by persons who are, at a minimum, completely comfortable and competent while operating the vehicle 135lbs (60kgs) Do not exceed total weight on this vehicle.
  • Page 4 ★ Do not touch the brakes or engine when the vehicle is in use as they can become very hot. ★ This vehicle should use mixture of the unleaded gasoline and the two cycle engine oil. The volume ratio is 25:1. Do not use any degraded fuel (which smells sour) or fuel of wrong mixture ratio.
  • Page 5 ATTENTION TO SAFE OPERATION. LOCATION OF WARNING STICKER Sticker A is located on the left side of fuel tank. Sticker B is located on the rear fender.

  • Page 6: Pin Location

    Sticker C is located on the rear fender Sticker D is located on the left side of engine PIN LOCATION PIN is stamp marked on an aluminum plate that is riveted on the steering column . PIN means the Product Identify Number which is unique for each unit.

  • Page 7: Main Parts

    MAIN PARTS 1: front brake lever 2: handlebar 3: number plate 4: mudguard 5: fork 6: front wheel & tire 7: front brake disc 8: front brake caliper 9: exhaust heat-protection 10: gear box 11: footrest 12: side stand 13: chain cover 14: rear wheel &...
  • Page 8 19: tail plastic body 20:seat 21: plastic frame cover 22: fuel tank 23: right plastic fairing 24: engine pull starter 25: carburetor 26: air filter 27: chain 28: rear shock absorber 29:swing arm 30: rear brake caliper 31: rear brake disc 32: rear driven sprocket 33: exhaust...

  • Page 9: Before You Begin

    HAND DRIVE CONTROLS 1 :rear brake lever 2 :engine stop switch 3 :front brake lever 4 : throttle handle BEFORE YOU BEGIN Remove contents from box. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may occur during shipping. Because the product was 85 percent assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.
  • Page 10 ASSEMLY MUDGUARD mount the bolt (D) through the mudguard fixing bracket into the splintage (B) and tighten it. mount the bolt (C) bottom-up through the mudguard rear hole into the splintage (B) and tighten it. A：mudguard B：down splintage C：bolt M6X16 D: bolt M6 x16 ASSEMBLYNUMBER BOARD 1.
  • Page 11 1. Uplift the frame to align the shock (A) mounting hole to the shackle joint hole. 2. Fix the bolt (B) through the shock mounting hole and shack joint and tighten the nut (C) securely with 10mm and 13mm open end wrench A：shock absorber B：bolt M8X40 C：nut M8...

  • Page 12: Technical Specification Sheet

    must stop to use the vehicle if the tire is pierced, disassemble the tire and check it carefully. Tire maintenance should be done by an authorized technician. Tire should be replaced immediately when it is distorted or damaged. Tire replacement It is important to use the correct size and standard tire as per our specification (see details in technical specification sheet) Don’t use the used tire if you are not sure its previous service condition.

  • Page 13: Ecologic Drive

    Check the brake for proper function. When you squeeze the lever, the brake should provide positive braking action.  Frame, Fork and Handlebars Check for cracks or broken connections. Although broken frames are rare, it is possible for an aggressive driver to bash into a curb or wall and wreck and bend or break a frame. Get in the habit of inspecting yours regularly.
  • Page 14 ● Breaking in During the first 25 hours of operation running-in), the following precautions should be used; Avoid travel at high speeds Change speed often so that the parts will break in uniformly and in a shorter time Avoid turning the throttle more that 3/4 of the way. Warning: ·Change the crankcase oil after 500km.
  • Page 15 ● SPARK PLUG Keeping the spark plug in good condition will reduce fuel consumption and increase engine performance. To perform the check, simply slide off the electrical connection tube and unscrew the spark plug. Examine the distance between the electrodes with a feeler. This distance should be from 0.5 to 0.6 mm.
  • Page 16 Step 3 : The chain tension is in good condition while the gap is about 5mm between chain to lowest parts of swing arm. Lock all the nuts and screws, check the wheel alignment and then re-attach the chain cover. Adjusting brake Step 1: To adjust the brake tension, thread the brake lever...
  • Page 17 in the below picture. The thickness of the lining on the ends of the four pads should never be less than 1mm. Should the lining be thinner, immediately replace the brake pads. We recommend having the brake pads replaced by an authorized dealer.
  • Page 18 electric revolution counter to the spark plug wire. Then use a screwdriver on register screw A to calibrate the minimum. ADJUSTMENT OF GAS CLEARANCE If the throttle control idle travel exceeds 3 mm as measured on the rim of the twist grip, Perform the adjustment by lifting dust cap B.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE REMEDY The engine doesn’t Clean the system Fuel system(tubes, fuel tank, valve) is start blocked -No current arriving at spark plug Clean or replace spark plug. If the problem persists, consult one of our Authorized Dealers With gas completely open, continue Engine is flooded trying to start engine for a few Moments.
  • Page 20 Please read the owner’s manual before riding. Never operate this vehicle if you are under age 12. Never use the vehicle on public road. OFF ROAD use only. Never ride with a passenger Always use an approved helmet and protective gear NEVER use with drugs or alcohol Cold tire pressure.
